Ubiquiti USW-Ultra-60W-EU

🖧 Product Description

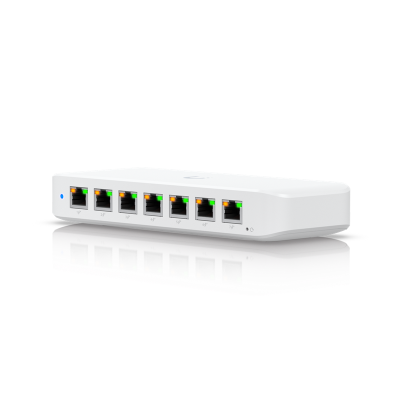

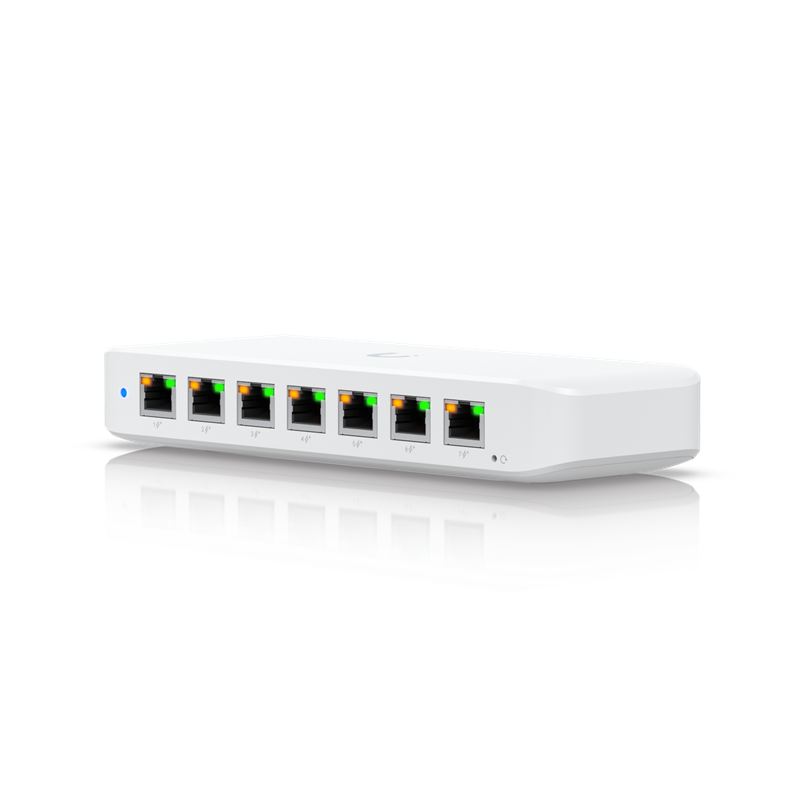

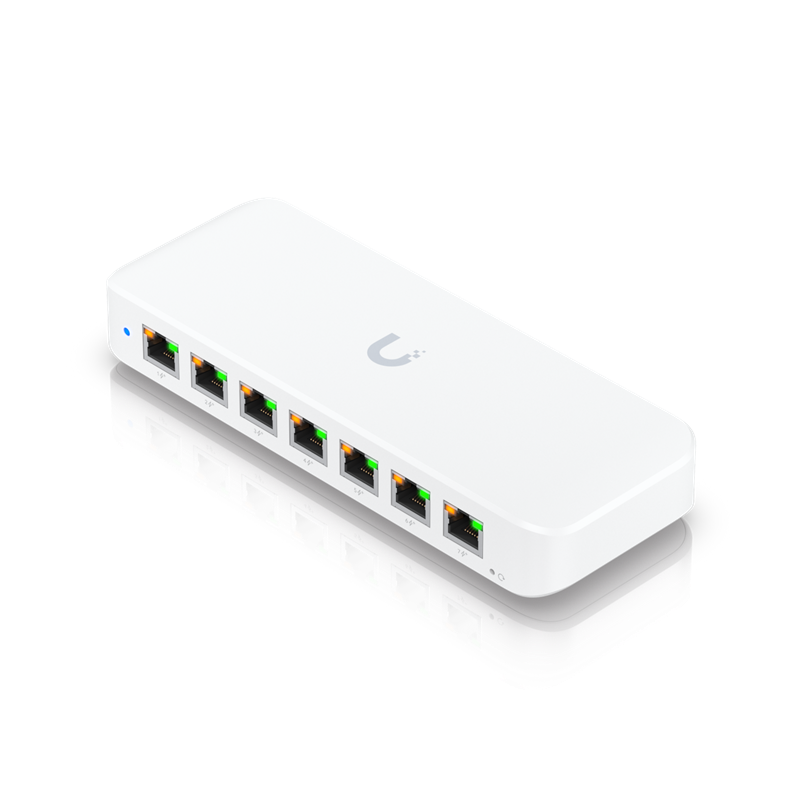

Ubiquiti UniFi Switch Ultra 60W (USW‑Ultra‑60W)
Compact sized, 8 portLayer 2 PoEis the key (switch). With its stylish design and powerful features, it is specifically designed for small offices, access point networks, and compact network setups.

⚙️ Basic Features

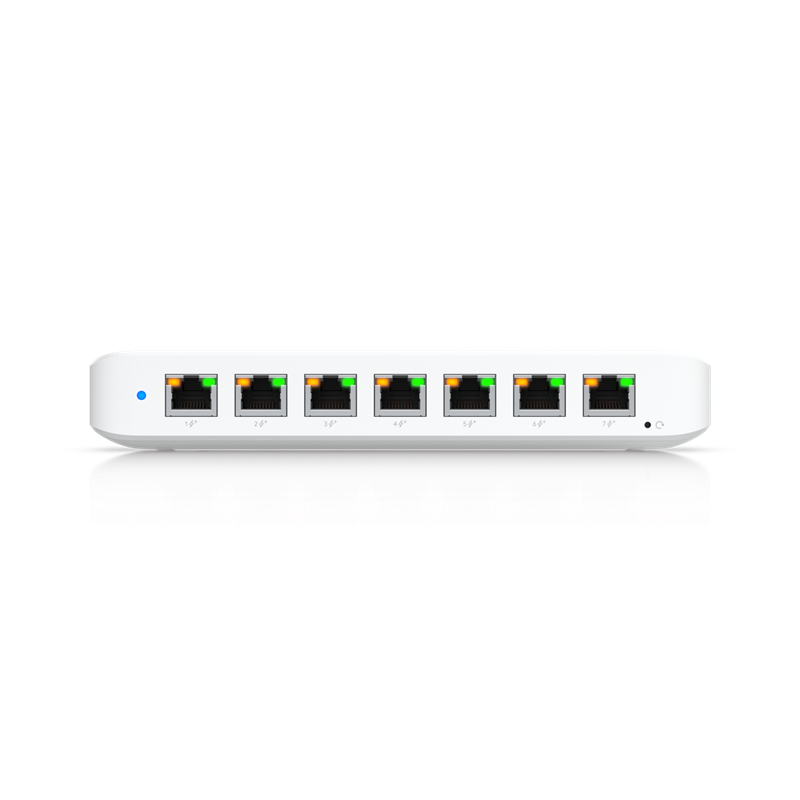

• Port Structure:
  🔌 (7) units of GbEPoE+ output port
  🔌 (1) piece GbEPoE++ input port

• PoE Budget:
  • Total in adapter power supply52WPoE budget
  • 42W budget with PoE++ input
  • 16W budget with PoE+ input

• Key (Switch) Capacity:
  • Non‑blocking throughput:8 Gbps
  • Switch capacity:16 Gbps

• Physical Properties:
  • Dimensions:203 × 76 × 33 mm
  • Weight: Device ~320 g

• Working Environment:
  • Temperature range: (PoE++ input mode) –30 °C to +60 °C
  • Humidity range: 10% – 90%, under non-condensing conditions

🌐 Software & Management

• Fully integrated with the UniFi Network control platform.

• Management port: "In-band" management over Ethernet

• Supported Layer 2 features:
  • Port isolation
  • Storm control
  • Port mirroring
  • Multicast / broadcast restriction
  • Flow control
  • Jumbo frame support
  • Egress rate limiting

🔒 Advantages & Usage Opportunities

• ⚡ Small but strong- Sufficient power and performance for limited areas

• 🔌 Ideal for PoE applications— Powering devices such as cameras, access points (AP), and VoIP devices with a single cable

• 🧱 Smart grid infrastructure- Monitor and manage the entire network from the UniFi controller panel.

• ✅ Modular power supply option- With the PoE input, the device can operate while also having the potential to power the output ports.

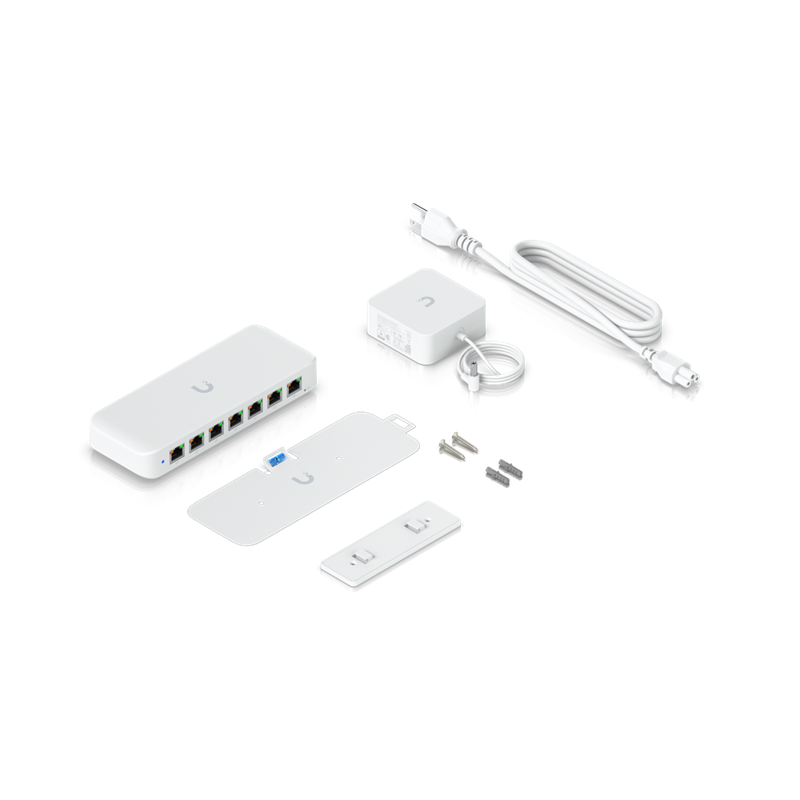

• 📦 Ease of assembly- Desktop use and wall mounting support
