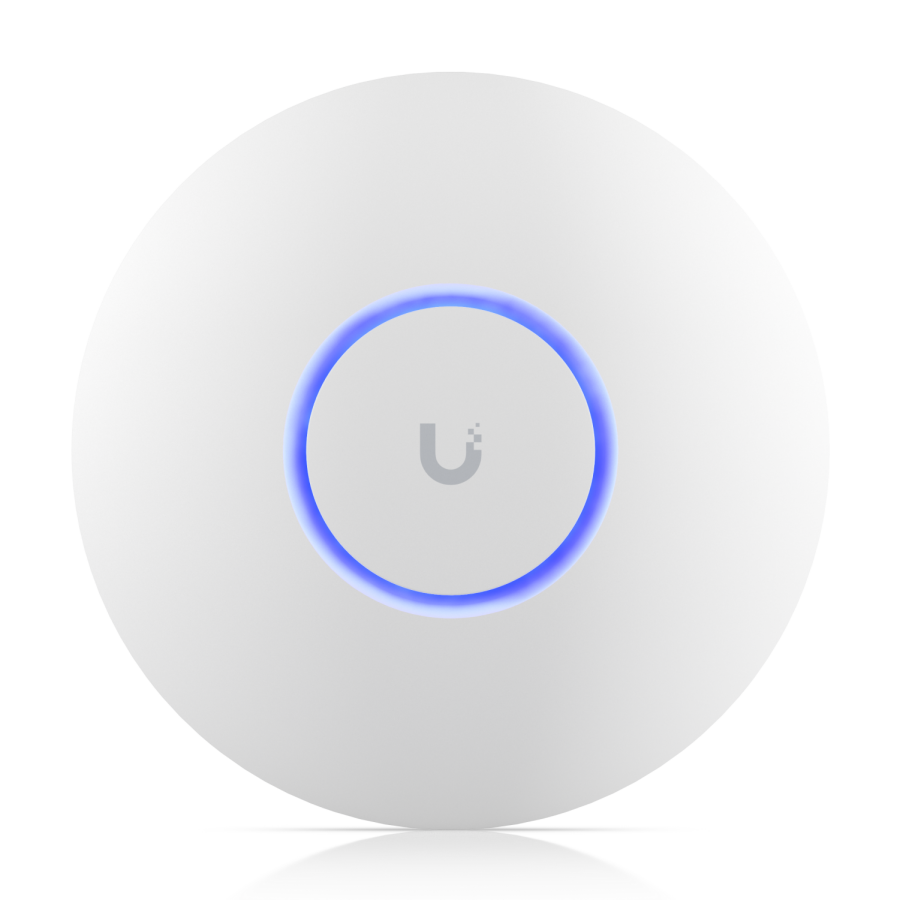

Ubiquiti U6 Plus

​Ubiquiti UniFi U6+ (U6 Plus) is a compact and high-performance indoor access point that supports Wi-Fi 6 (802.11ax) technology. It is specifically designed for small and medium-sized enterprises.​

📡 Basic Features

• Wireless Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6)

• MIMO: 2x2 MU-MIMO (on both 2.4 GHz and 5 GHz bands)

• Maximum Data Rates:

  • 2.4 GHz: 573.5 Mbps

  • 5 GHz: 2.4 Gbps

• Total Theoretical Bandwidth: 2.975 Gbps

• Antenna Gain:

  • 2.4 GHz: 3 dBi

  • 5 GHz: 5.4 dBi

• Maximum Broadcast Power: 23 dBm for both bands

• Coverage Area: Approximately 140 m²

• Maximum Client Count: 300+ devices

⚙️ Hardware Specifications

• Boyutlar: Ø160 x 33 mm

• Ağırlık: Approximately 338 days

• Network Interface: 1 x 10/100/1000 Mbps RJ45 Ethernet port

• Power Method: PoE (802.3af) or 48V passive PoE

• Supported Voltage Range: 44–57V DC

• Maximum Power Consumption:9 W

• Operating Temperature: -30°C to 60°C

• Assembly Options: Ceiling or wall mounting (mounting kits included)

🧠 Software and Management

• Management Interface: UniFi Network application (web and mobile)

• Supported Features:

  • Wireless Mesh

  • Band Steering

  • Maximum 8 SSID (per radio)

  • WPA3 security protocol

• Bluetooth: Yok

📦 Box Contents

• UniFi U6+ Access Point

• Ceiling and wall mounting kits

• Quick start guide
