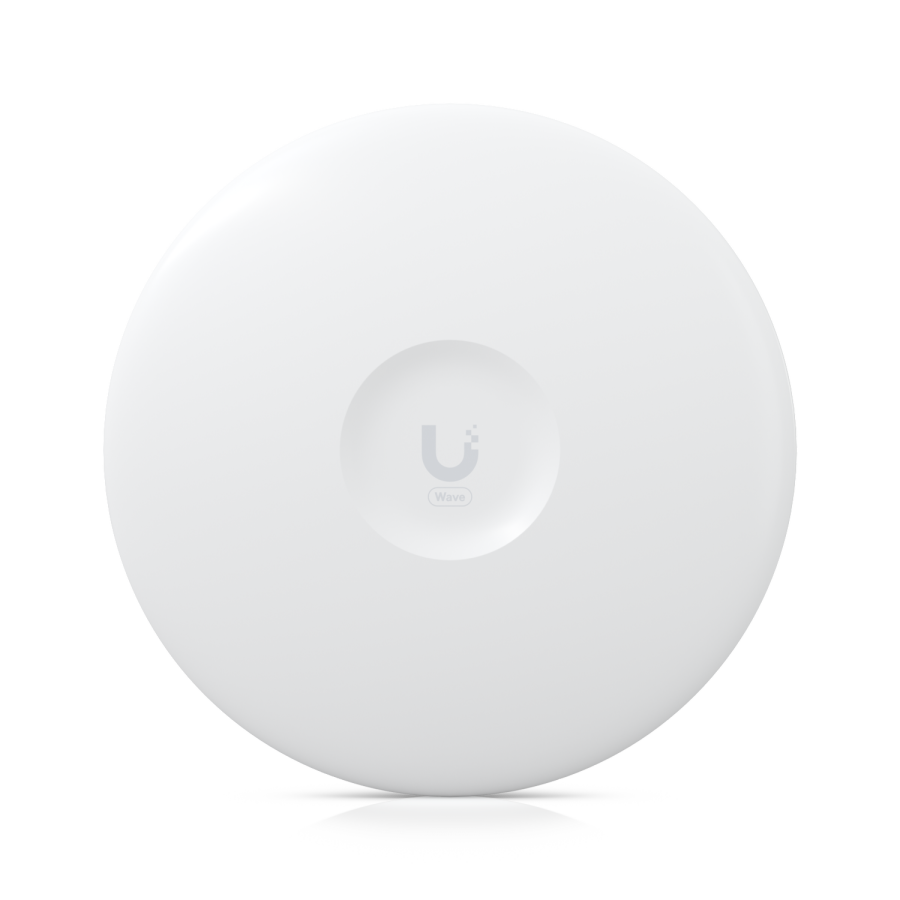

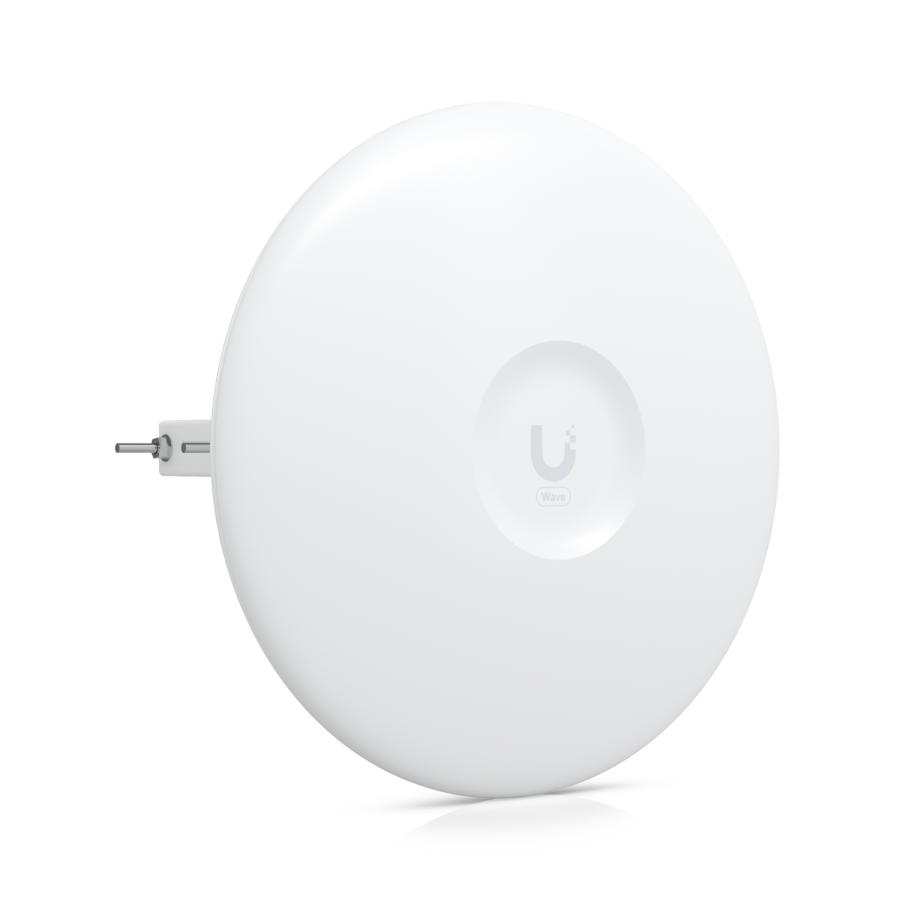

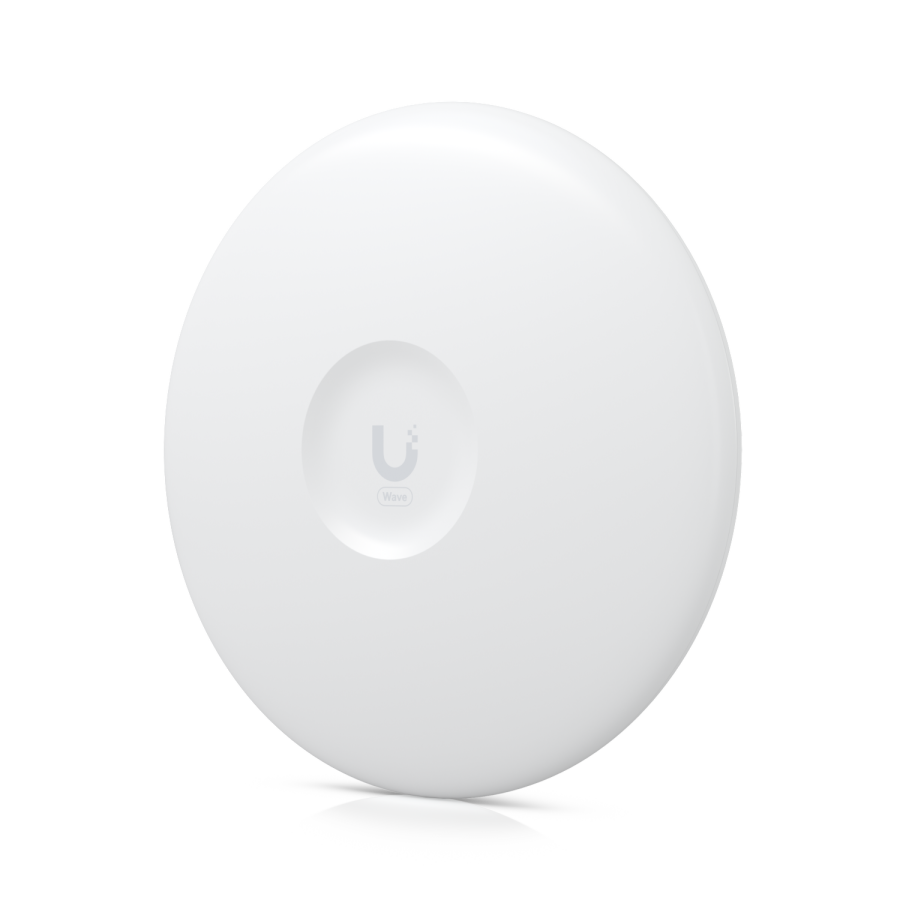

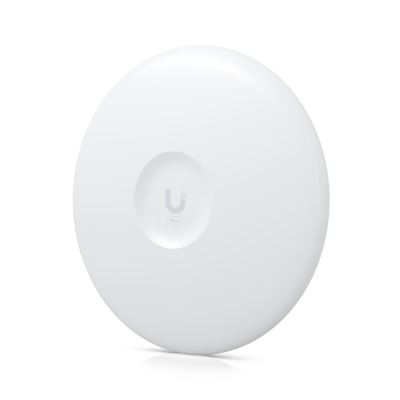

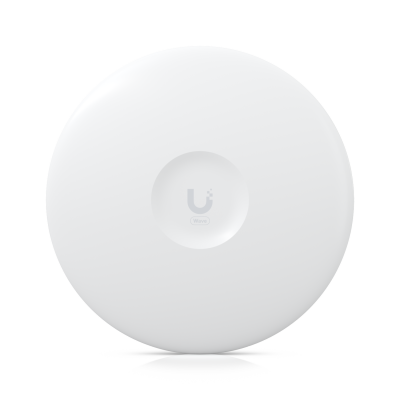

Ubiquiti WAVE-PRO-EU, a high-capacity60 GHz wireless CPEIt is a (Customer Premises Equipment) device. Especially long-distancepoint to point (PtP) ve point-to-multipoint (PtMP)It is designed for connections. Additionally, weather-resistant5 GHz backup radioIt is equipped with, thus ensuring uninterrupted communication when the main connection is lost.
Main Radio Frequency: 60 GHz (in the range of 57–71 GHz)
Reserve Radio Frequency: 5 GHz (in the range of 5150–5875 MHz)
Maximum Total Data Rate: 5.4 Gbps (2.7 Gbps bidirectional)
5 GHz Backup Radio Speed: 800+ Mbps
Modulation Types: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Antenna Gain:
60 GHz: 46 dBi
5 GHz: 22 dBi
Beam Width:
60 GHz: 1.3°
5 GHz: 8°
Polarizasyon: Bilinear
Maximum Range:
Point to Point: 15 km
PtMP: 8 km (with Wave AP), 6 km (with Wave AP Micro)
İşlemci: Quad-core ARM® Cortex®-A53, 1.4 GHz
Bellek: 512 MB DDR3L
Network Connections:
2 × 2.5 GbE RJ45 port
1 × 10G SFP+ port
Power Consumption: Maximum 26 W
Power Input: 44–54V or 22–27V Passive PoE
Management Features: Integrated GPS and Bluetooth
Software Features: Router/Bridge mode, UISP support, SNMP, NTP client, ping watchdog, antenna alignment tool
Boyutlar: Ø424.4 x 166.2 mm
Ağırlık:
Unassembled: 2.8 kg
Assembled: 4 kg

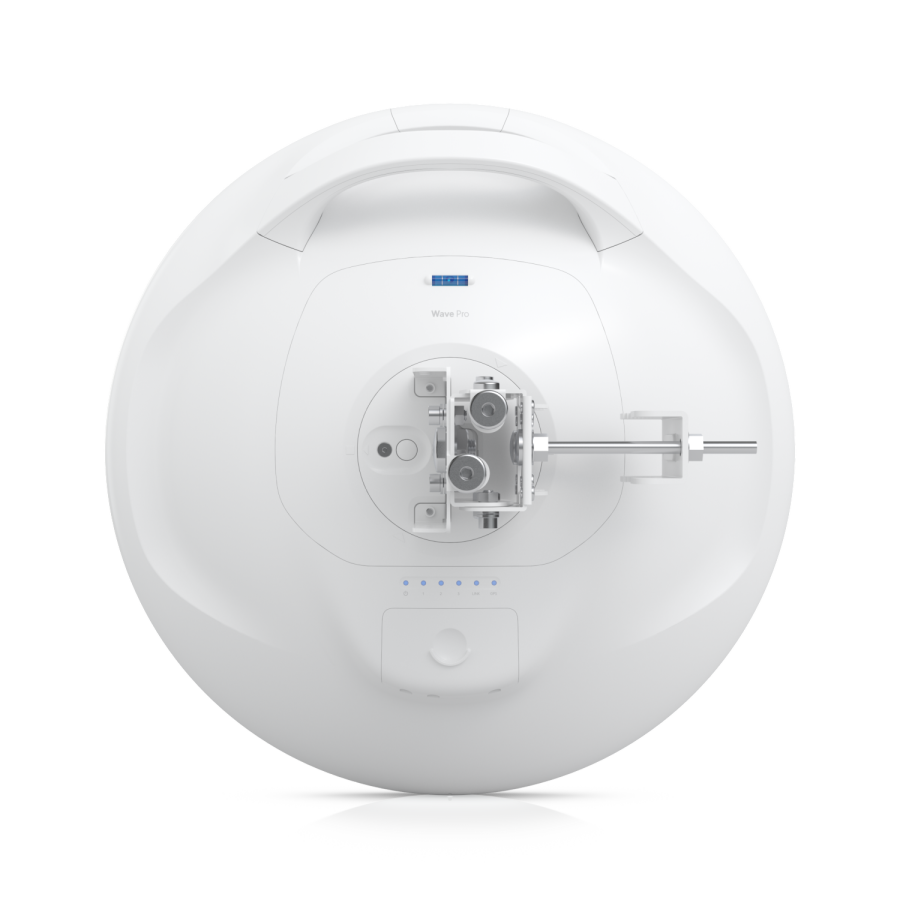

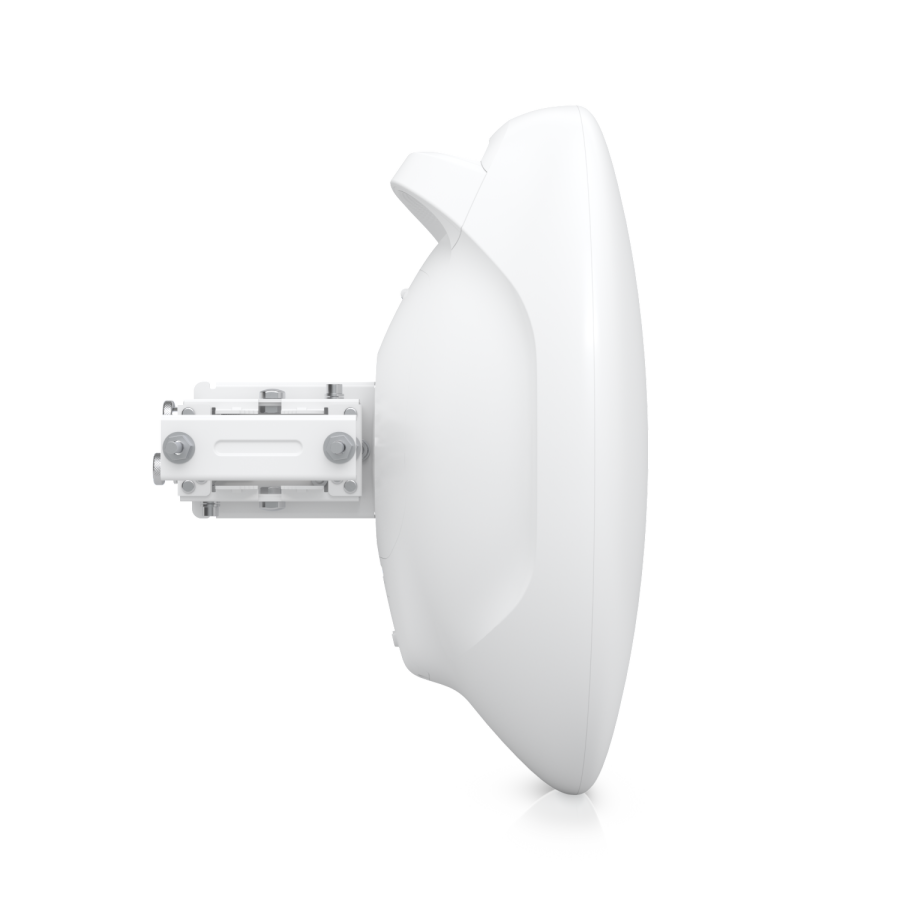

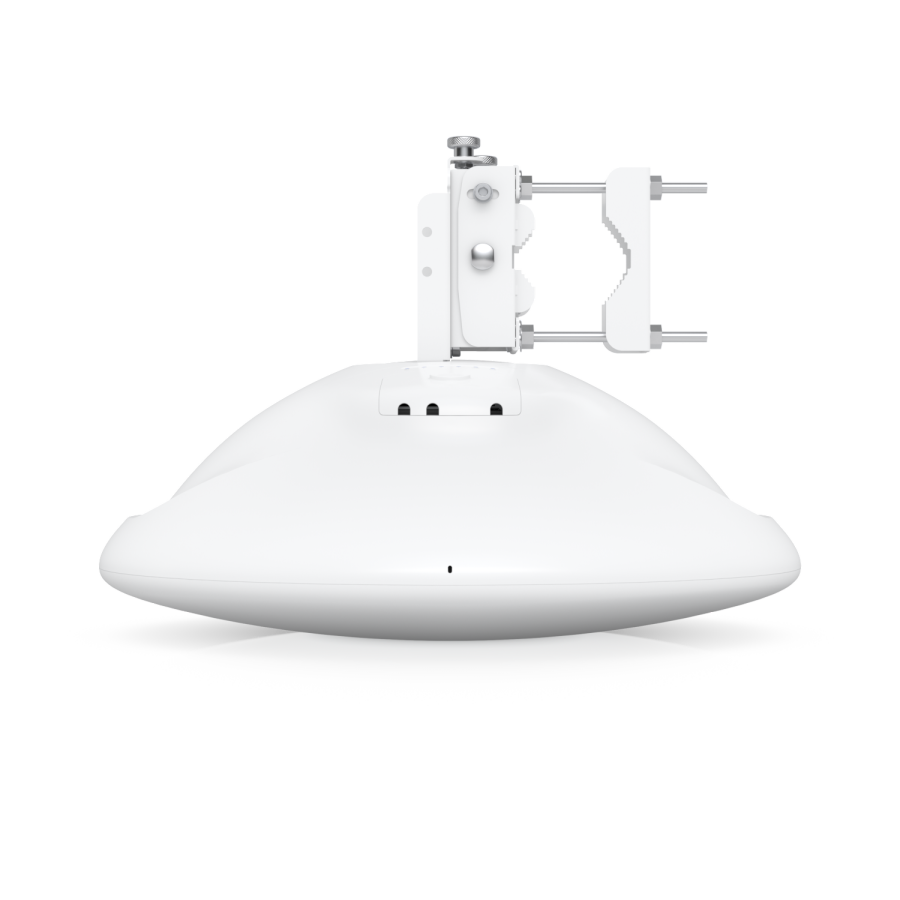

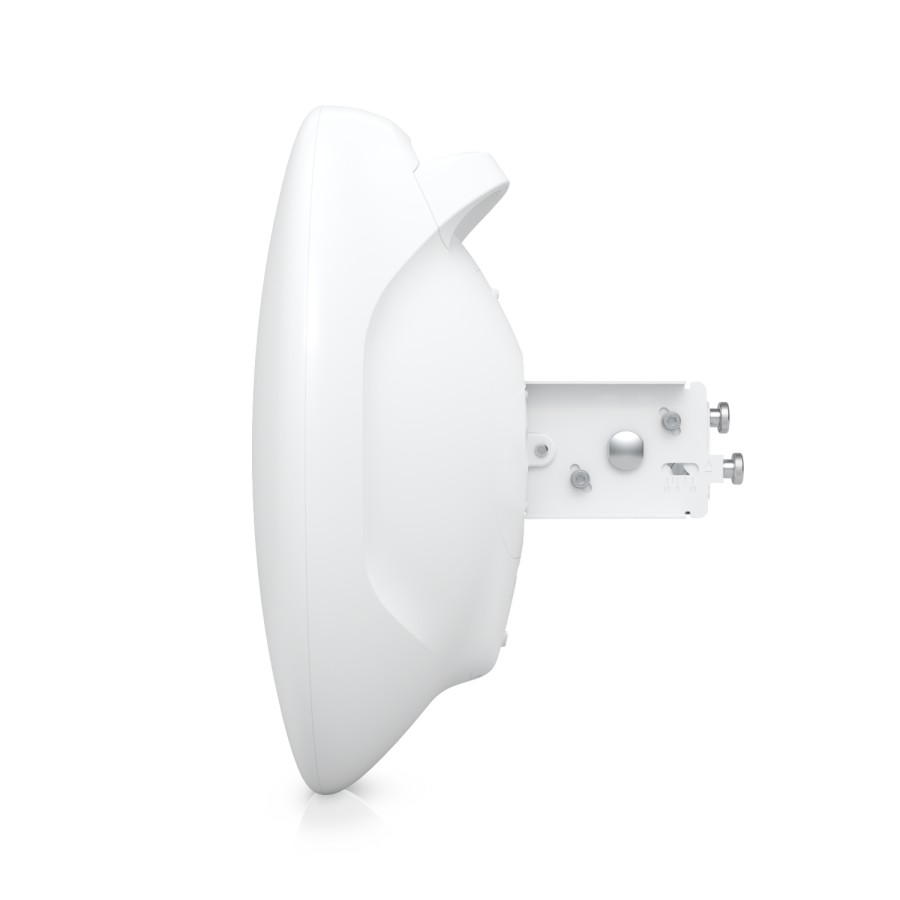

Malzeme: Aluminum alloy and UV stabilized plastic body, stainless steel mounting fixture
Wind Resistance: At a speed of 200 km/h, 369 N
Water and Dust Protection: IPX6 certified
Internet Service Providers (ISP): To provide high-speed internet connection in rural or infrastructure-limited areas
Corporate Networks: To establish high-bandwidth connections between buildings on campuses or large facilities
Temporary Events: To establish a fast and reliable network infrastructure for temporary organizations such as fairs, concerts, or sports events
