U7-Lite

📡 General Information

• Wi-Fi Standard:802.11be (Wi-Fi 7), dual-band (2.4 & 5 GHz), backward compatible with Wi-Fi 6/5/4

• Patch Policy:Fanless design, quiet and low power consumption

🧩 Performance & Antenna

• Spatial Streams:4 (2x2 MIMO per band)

• Max. Data Rate:

  • 5 GHz:4.3 Gbps(EHT with 240 MHz)

  • 2.4 GHz:688 Mbps

• Antenna Gain:

  • 5 GHz: 5 dBi

  • 2.4 GHz: 4 dBi

🌐 Network & Connection

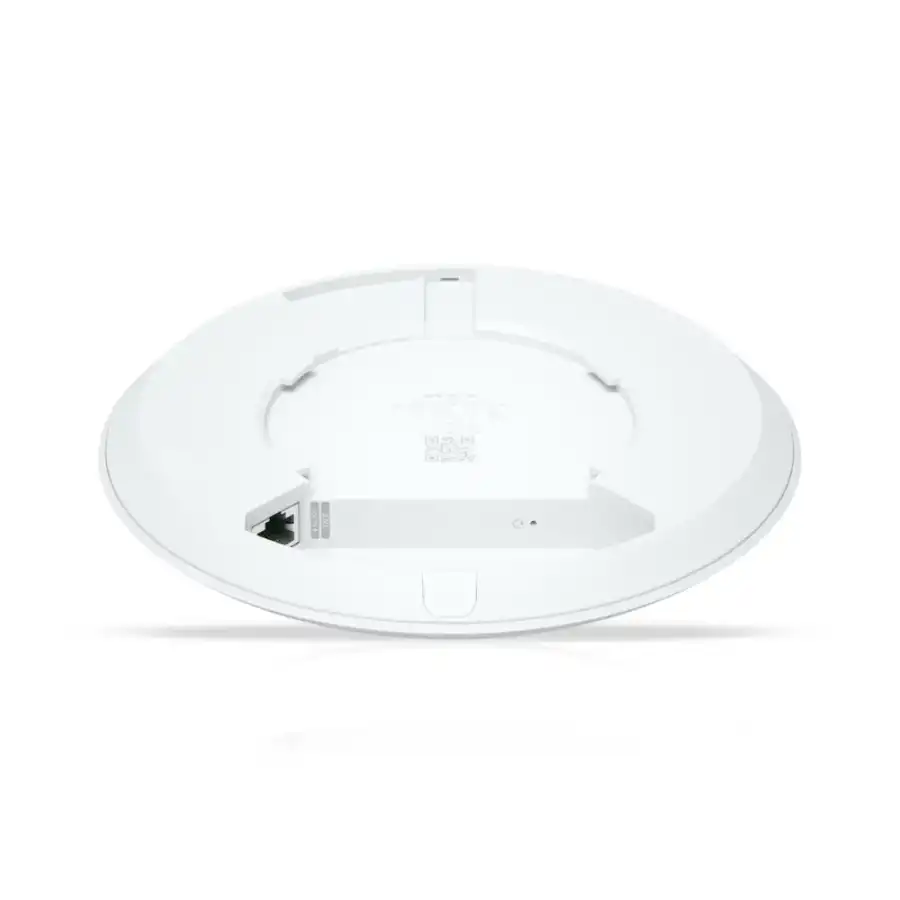

• Uplink Port:2.5 GbE (PoE power is provided via RJ‑45)

• Max. Connected Devices:200+ devices supported

• Number of SSID:8 different BSSIDs (customized networks) for each radio

🔌 Electrical & Physical Properties

• Tüketim:≤13 W (PoE)

• Input voltage:42.5 – 57 V DC (802.3af PoE)

• Boyutlar:Ø 171.5 × 33 mm,Ağırlık:313 g

• Working Conditions:–30…+40 °C, 5–95% humidity

⚙️ Management & Software

• Mesh & Roaming:Wireless Mesh, band steering, 802.11 v/k/r supported fast roaming

• Hotspot Features:Passpoint, captive portal, voucher, and payment-based access

• Security & Management:WPA3, RADIUS-over-TLS (RadSec), VLAN, traffic limiting, SNMP, and more.

• Platform:UniFi OS compatibility; management via UniFi Network (≥9.0.114), mobile applications (iOS/Android)

• Additional Features:LED indicators, NDAA compliance, certifications (CE, FCC, IC)

🧪 Usage & Evaluation

• Real Performance:Actual data transfer at Gig+ speeds – typically 1.2–1.8 Gbps in tests – quiet operation due to no fan included

• Yerleşim:It comes with the "Lite Mount" accessory for ceiling or wall mounting.

• Fiyat: Yaklaşık 99 USD / 89 €Entry-level Wi-Fi 7 device with the label
