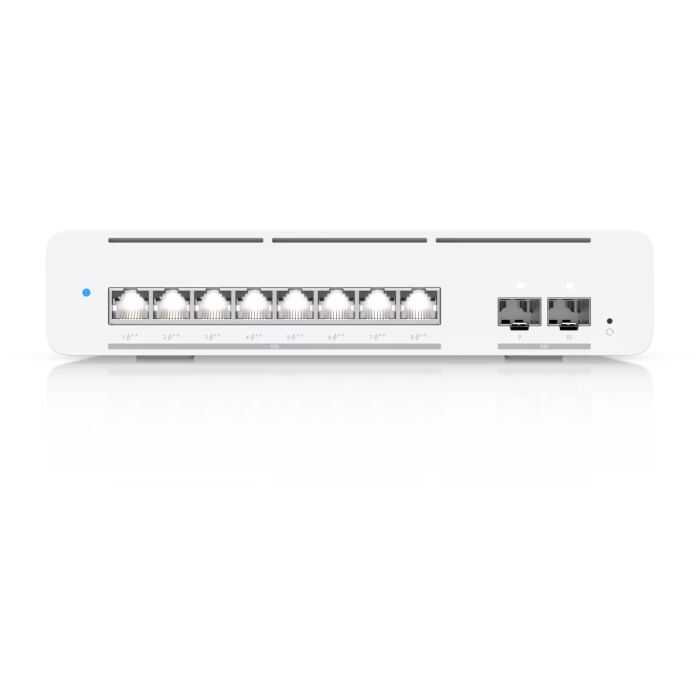

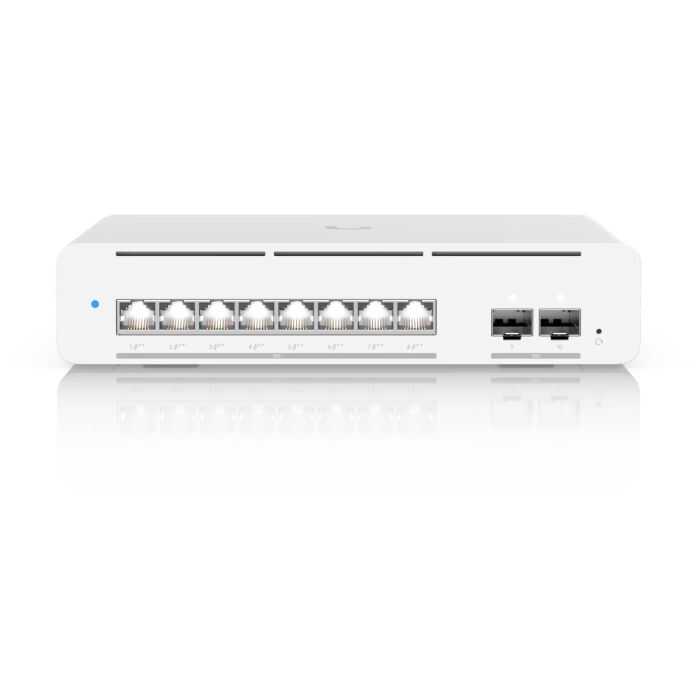

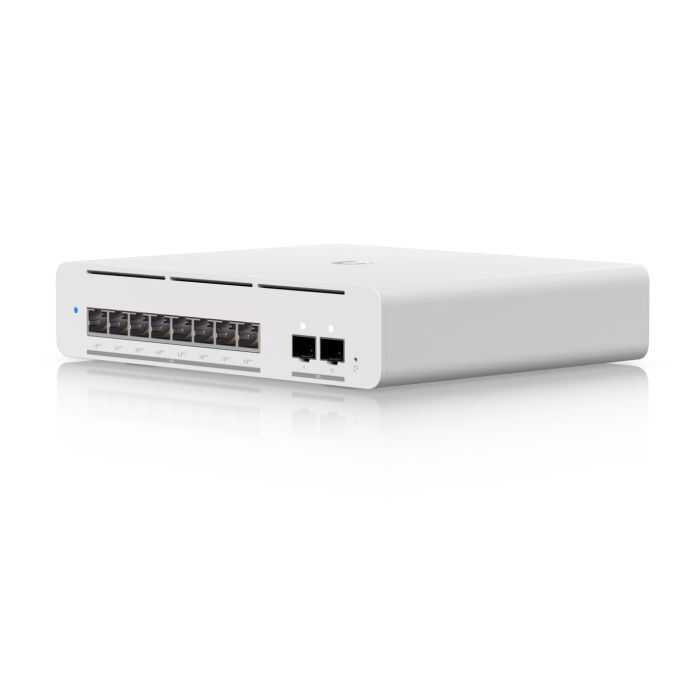

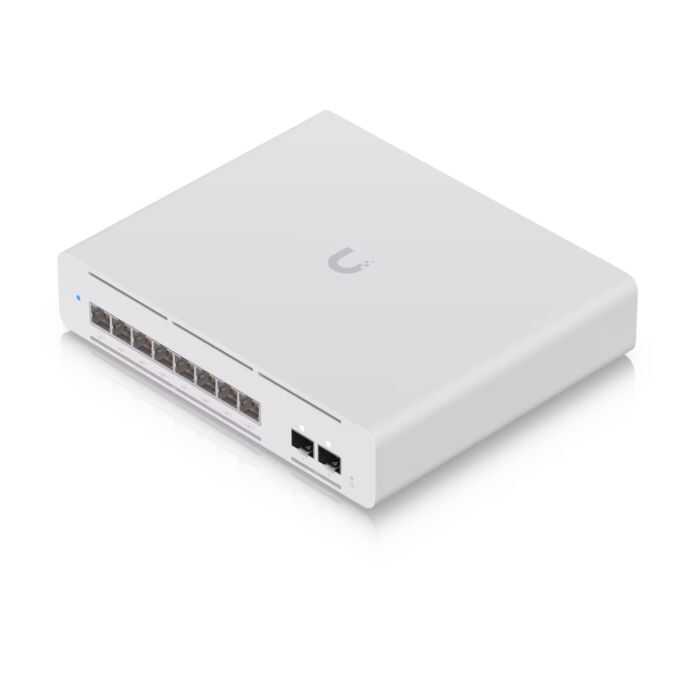

Ubiquiti UniFi Switch Pro XG 8 PoE, is a high-performance, compact, and manageable Layer 3 switch. It is equipped with 8 10G PoE++ RJ45 ports and 2 10G SFP+ uplink ports. With a total PoE budget of 155W, it can power devices with high power requirements. Port statuses are visually displayed through Etherlighting™ technology. Thanks to its fanless design, it operates quietly and is suitable for desktop or wall mounting.
Özellik | Detaylar |
---|---|

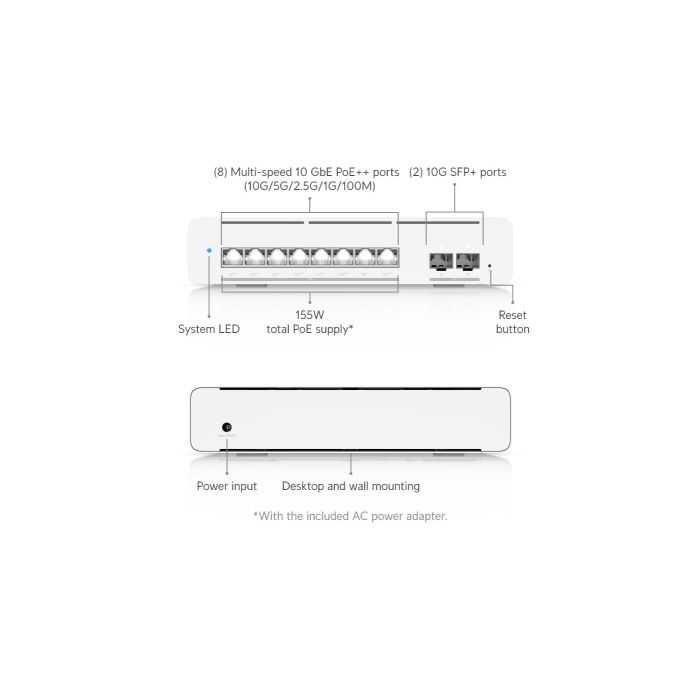

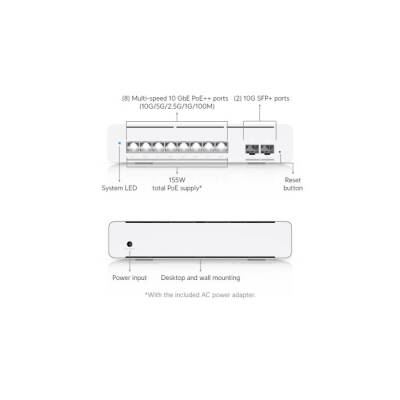

Port Structure | 8 × 10G PoE++ RJ45, 2 × 10G SFP+ |
PoE Support | IEEE 802.3af/at/bt (PoE++, 60W/port) |
Total PoE Budget | 155W |
Layer 3 Features | Static IPv4 routing, DHCP server/relay, inter-VLAN routing |
Switching Capacity | 200 Gbps |
Non-Blocking Throughput | 100 Gbps |
İletim Hızı | 149 Mpps |
MAC Address Table | 32,000 entries |
VLAN Support | 1.000 VLAN |
Port Buffer Size | 2 MB |

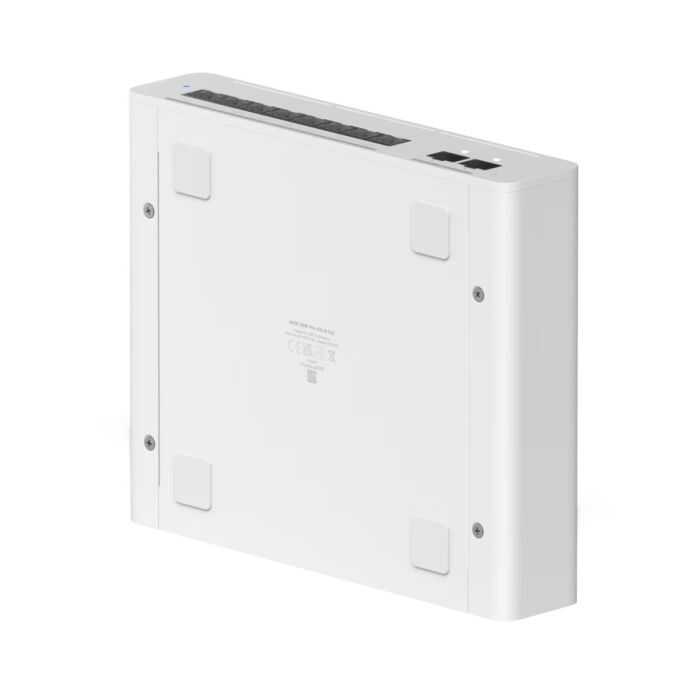

Assembly Options | Desktop or wall mounting |

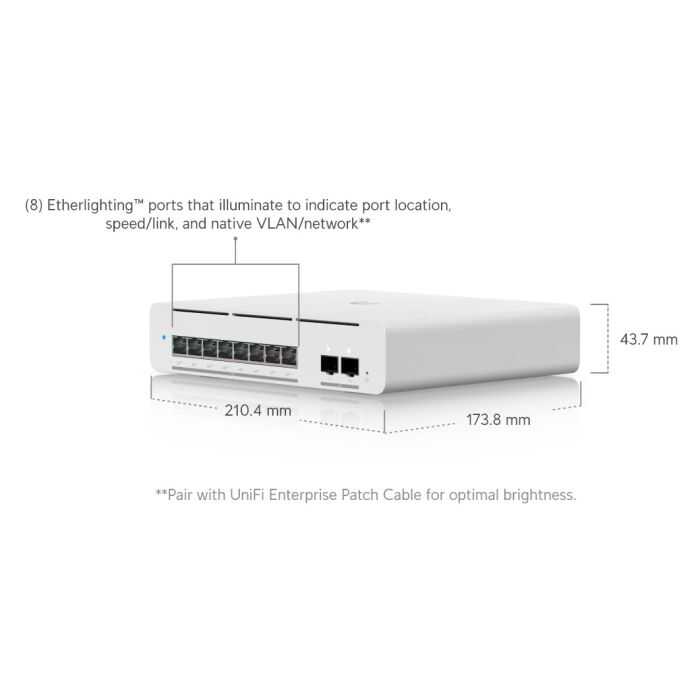

Dimensions (WxDxH) | 210.4 × 173.8 × 43.7 mm |
Ağırlık | 1.6 kg |
Malzeme | SGCC steel case, polycarbonate mounting fixture |
Power Consumption | Maximum 220W (with PoE load) |
Operating Temperature | Between -5°C and 45°C |
Operating Humidity Ratio | 10% – 90%, non-condensing |
Sertifikalar | CE, FCC, IC |
NDAA Compliance | Evet |
Maximum PoE Output Per Port: 60W (PoE++)
Total PoE Budget155W
Power Supply210W AC/DC adapter provided externally (included)
PoE Standards802.3af/at/bt (PoE++, PoE+, PoE)
Etherlighting™ Technology: Displays port status with colored LEDs (connection speed, connection status, VLAN assignment)
Networks requiring high performance
4K/8K video streaming and cloud computing applications
VoIP telephone systems and IP cameras
Network infrastructure for small and medium-sized enterprises
Integration with UniFi Access Points and other UniFi devices.
High PoE capacityAbility to supply devices with high power requirements.
Fanless designQuiet operation, ideal for offices and meeting rooms.
Etherlighting™ visual indicatorsAbility to quickly monitor port statuses
Compact dimensionsSuitable for desktop or wall mounting.
Layer 3 featuresAdvanced network management and routing options

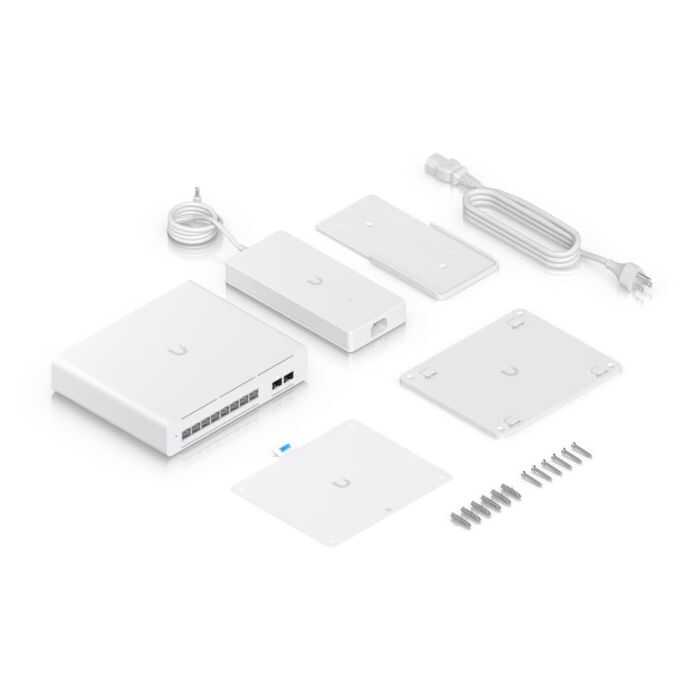

USW-Pro-XG-8-PoE Switch
210W AC/DC Adapter
Desktop Assembly Fixture
Wall Mounting Apparatus
User Manual
