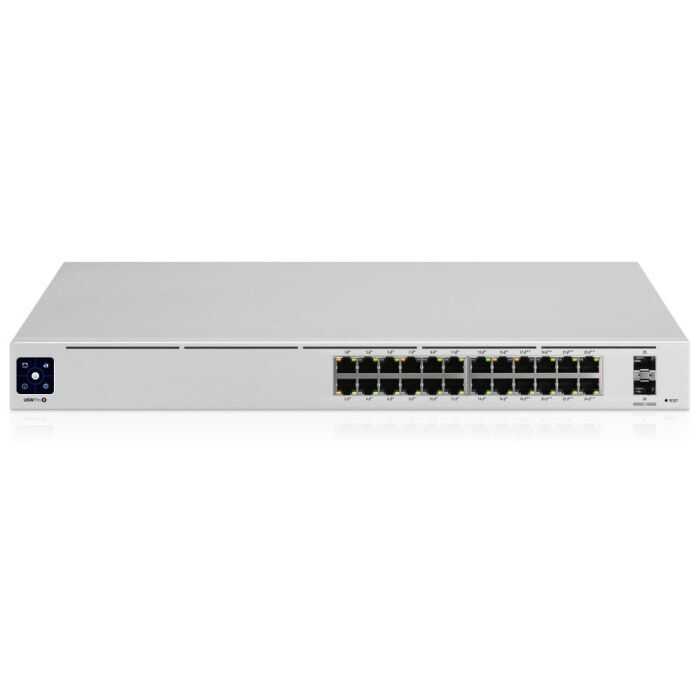

🔌 Ubiquiti UniFi Switch Pro 24 PoE (USW-PRO-24-POE), is a high-performance, manageable Layer 3 switch.
⚡ Equipped with 24 1GbE PoE+ ports and 2 10G SFP+ uplink ports.
🌐 Thanks to its powerful PoE budget, it supports IP cameras, VoIP devices, and Wi-Fi access points.
📱 With a 1.3-inch touchscreen, you can easily monitor port statuses.
🖥️ Its rack-mountable (1U) design makes it ideal for corporate networks.
Özellik | Detaylar |
---|---|
🔌 Number of Ports | 24 × 1GbE RJ45 PoE+ |
🚀 Uplink Ports | 2 × 10G SFP+ |
⚡ PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
🔋 Total PoE Budget | 400W |
🌐 Layer 3 Features | Static routing, inter-VLAN routing, DHCP server/relay |
📊 Switch Capacity | 128 Gbps |
📈 İletim Hızı | 95.24 Mpps |
🔑 MAC Address Table | 32,000 entries |
🛡️ VLAN Support | 1.000 VLAN |
📱 Ekran | 1.3 inch touch screen |
📐 Dimensions (WxDxH) | 442.4 × 259 × 43.7 mm |
⚖️ Ağırlık | 5.4 kg |
🏢 Montaj | Rack-mountable (1U) |
🌡️ Operating Temperature | Between -5°C and 40°C |
💧 Operating Humidity Ratio | 10% – 90%, non-condensing |
⚡ Maximum 30W PoE output per port
🔋 Total 400W PoE budget
📶 Supports IEEE 802.3af/at
🏢 Medium-scale corporate networks
🎥 IP security cameras and VoIP devices
📶 Wi-Fi access points
🖥️ Data centers and campus infrastructures
⚡ Device support with high PoE capacity
📱 Easy management with touch screen
🌐 Advanced network management with Layer 3 features
🏢 Easy installation with rack-mountable design
