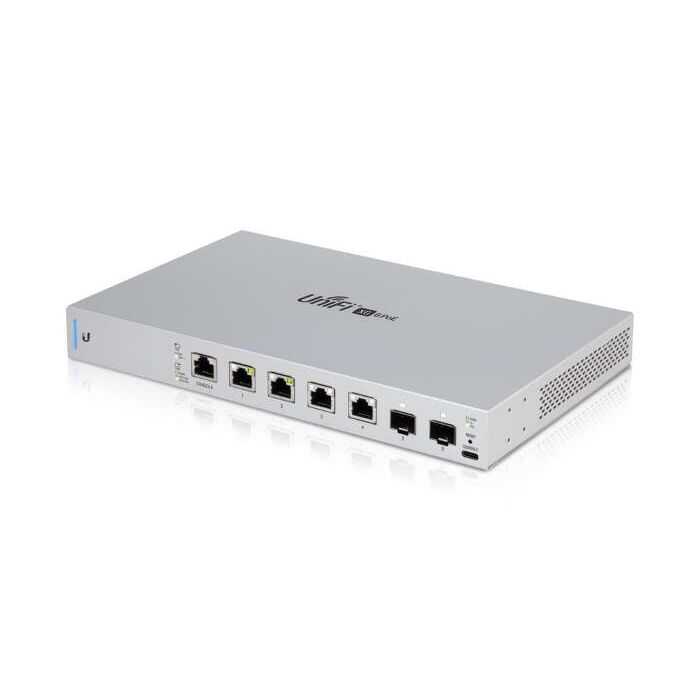

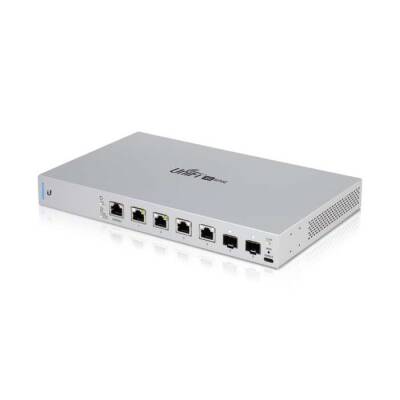

🔌 Ubiquiti UniFi Switch 6 XG PoE (US‑XG‑6POE), it is a Layer 3 switch designed for high performance and very fast connections.
⚡ 4 units of 1/2.5/5/10 GbE RJ45 PoE++ (802.3bt)It can power high-power devices (such as advanced access points) through its port.
🌐 2 units of 10G SFP+It provides the possibility of fiber connection with an uplink port.
📊 It provides Layer 2 and basic Layer 3 features: functions such as VLAN routing and static routing.
| Özellik | Detaylar |
|---|---|
Port Structure | 4 × RJ45 (1 / 2.5 / 5 / 10 GbE, PoE++) + 2 × 10G SFP+ |
PoE Standard | IEEE 802.3bt (PoE++) |
Maximum PoE Power / Port | 60 W |
Total PoE Budget | 170 W (official store) |
Switch Capacity | 120 Gbps (total broadcasting capacity) |
Non-blocking Throughput | 60 Gbps |
Power Consumption (excluding PoE) | 40 W |
Physical Measurements | 165 × 268.1 × 31.8 mm |
Ağırlık | 1.3 kg |
Operating Temperature | –5 °C to +45 °C |
| Power Input | External 54 V DC adapter (3.88 A), also supports DC terminal input |
⚡ High PoE capacity ve multiple gigabitIt supports devices that require performance.
🌐 10G uplink portsIdeal for spinal connections
📱 Central control and management with UniFi Network
🧱 With its compact structure, it can be used for both office and rack mounting.
🔌 Some users,complete shutdown of ethernet portsexperienced the issue: > “none of the 4 ethernet ports show any link light … SFP+ ports still work”
🔁 Some UF-RJ45-10G SFP+ modules may not work properly with US-XG-6POE; sometimes the connection may need to be reset.
🔇 Fan operation possible: fan noise may be heard when the device is under load.
