Ubiquiti UISP-S-Plus EU

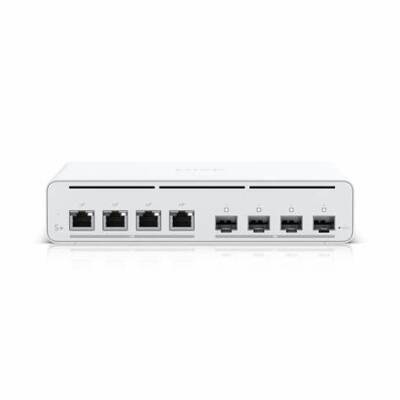

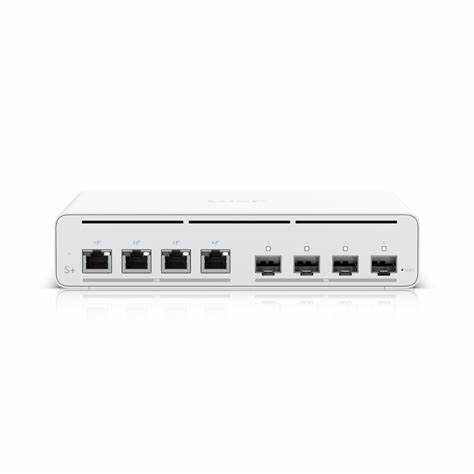

🔧 Ubiquiti UISP-S-Plus EU – Multi-Gigabit PoE Switch

🌐 Network Ports

• 4 x 2.5 GbE RJ45 PortIt provides 27V passive PoE support; power transmission is possible in 2-pair (20W) or 4-pair (40W) modes.

• 4 x 10G SFP+ PortIt provides support for high-speed fiber connection.

⚡ Power and PoE Support

• Total PoE Budget: 160W

• Maximum PoE Power Per PortIn 2-pair mode 20W, in 4-pair mode 40W

• Power InputAC/DC adapter (27V DC, 7.04A) and Power TransPort DC input (27V DC, 7.04A)

• Maximum Power Consumption25W (excluding PoE output)

📱 Management and Installation

• Management ApplicationUISP (version 1.5.7 or higher required)

• KurulumQuick setup capability via mobile application over Bluetooth.

• Ekran1.3 inch touch LCM display

🧊 Cooling and Design

• FanFanless design provides quiet operation.

• MontajTable, wall, 1U rack, and outdoor mounting (with UISP Box Plus)

• Boyutlar210.4 x 170.2 x 43.7 mm

• Ağırlık1.75 kg

🔐 Security and Certificates

• ESD/EMP ProtectionAir: ±15 kV, contact: ±8 kV

• Sertifikalar: CE, FCC, IC

• NDAA CompliantYes

📦 Package Contents

• Cihaz

• Power Cable

• Rack Mounting Kit + Screws

📊 Technical Specifications Summary

🏢 Areas of Use

• Small and medium-sized enterprises

• Campus networks

• IP cameras and access point infrastructures

• Security and monitoring systems

NotThis model is onlyUISP applicationIt can be managed via. It is not compatible with UniFi Controller or other Ubiquiti management software.
