Ubiquiti UCG-Fiber

🔧 Ubiquiti UCG-Fiber – 10G UniFi Cloud Gateway

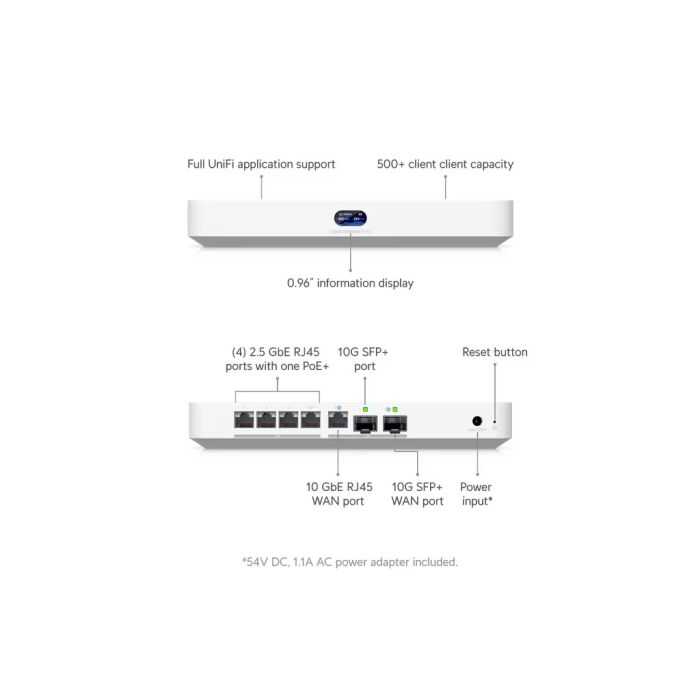

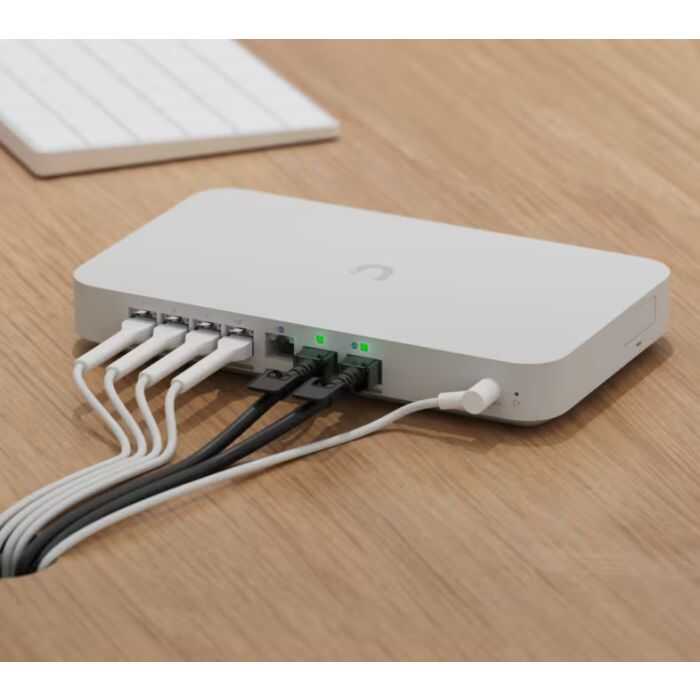

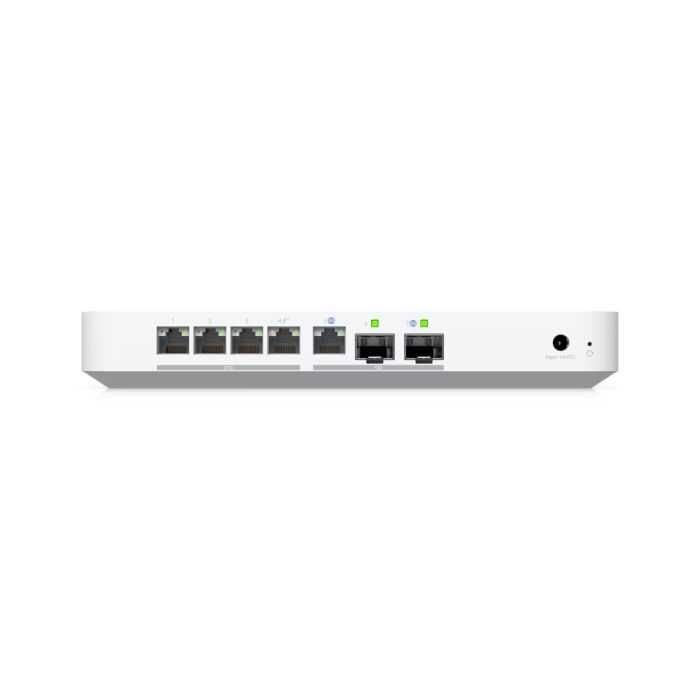

🌐 Network Ports

• 1 x 10G SFP+ WAN PortFor high-speed fiber connection

• 1 x 10G RJ45 WAN PortAlternative WAN connection

• 1 x 10G SFP+ LAN PortHigh-speed LAN connection

• 4 x 2.5G RJ45 LAN PortsFor general internet connections

• 1 x PoE+ Output30W power transmission

⚡ Power and PoE Support

• Total PoE Budget30W

• Power Input54V DC, 1.1A

• Maximum Power Consumption29.4W (excluding PoE output)

📱 Management and Installation

• Management ApplicationUniFi Network Controller or UniFi Cloud Portal

• KurulumQuick setup capability via mobile application over Bluetooth.

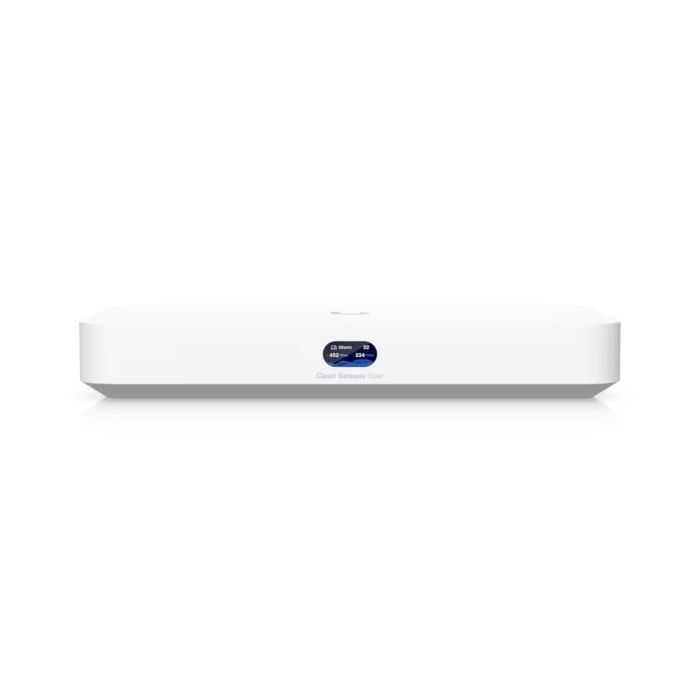

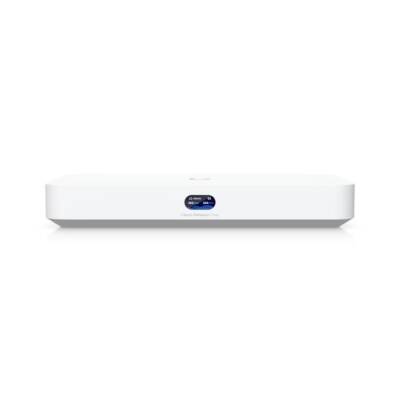

• Ekran0.96 inch LCM display

🧊 Cooling and Design

• FanFanless design provides quiet operation.

• MontajDesktop or wall mount

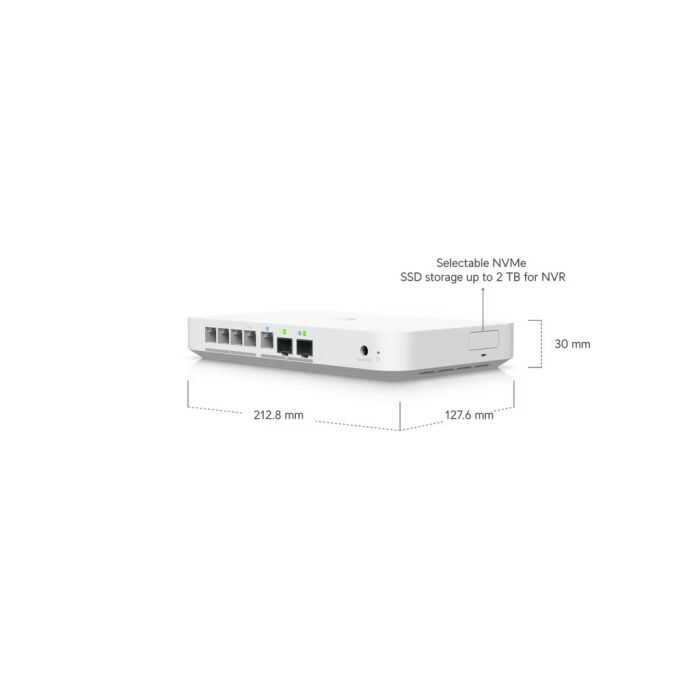

• Boyutlar210.4 x 170.2 x 43.7 mm

• Ağırlık1.75 kg

🔐 Security and Certificates

• ESD/EMP ProtectionAir: ±15 kV, contact: ±8 kV

• Sertifikalar: CE, FCC, IC

• NDAA CompliantYes

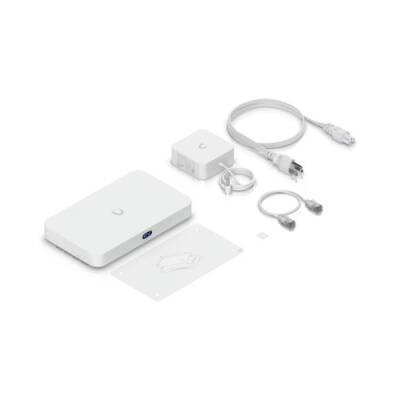

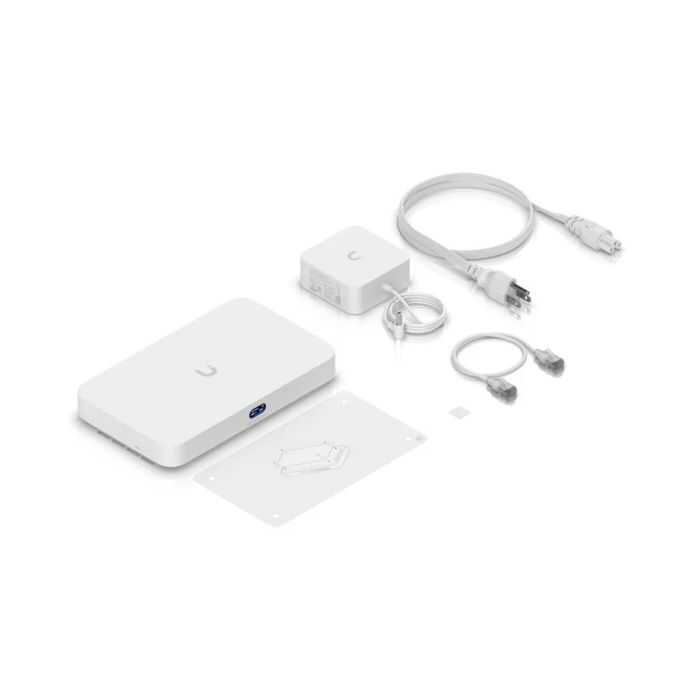

📦 Package Contents

• Cihaz

• Power Cable

• Assembly Kit + Screws

📊 Technical Specifications Summary

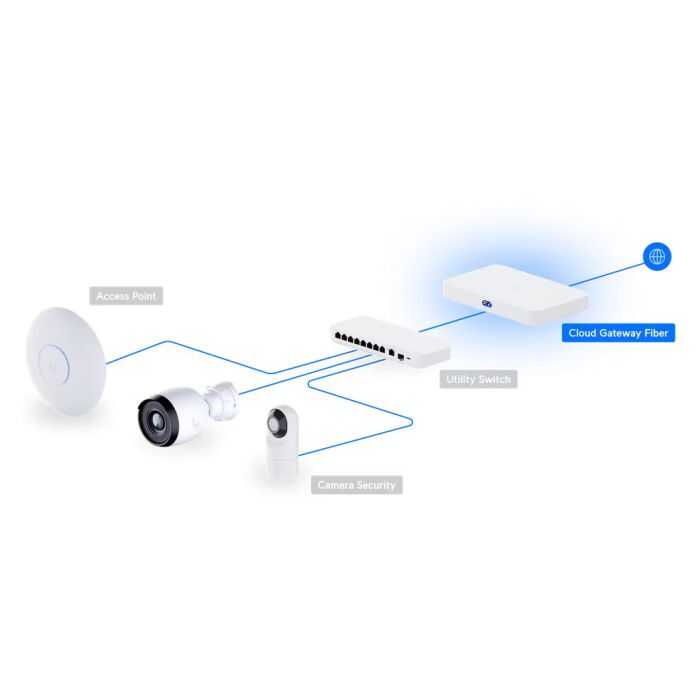

🏢 Areas of Use

• Small and medium-sized enterprises

• Campus networks

• IP cameras and access point infrastructures

• Security and monitoring systems

NotThis model is onlyUniFi Network Controller veya UniFi Cloud PortalIt can be managed via. It is not compatible with other Ubiquiti management software.
