UAP-AC-PRO-5 (5 PACK)

📡 Ubiquiti UniFi UAP-AC-PRO – Technical Information

UniFi UAP-AC-PRO, suitable for both indoor and outdoor use,It is a high-performance dual-band Wi-Fi access point.It is widely preferred in corporate networks, campuses, and large commercial areas.

"UAP-AC-PRO-5"The expression, the product'sIn packs of 5 piecesIndicates that it is sold. It does not include a PoE adapter.

📶 Wireless Features

• Wi-Fi Standard:802.11a/b/g/n/ac (Wi-Fi 5)

• Radio Frequency:2.4 GHz ve 5 GHz(Dual band)

• Maximum Total Speed:

  • 450 Mbps@ 2.4 GHz

  • 1300 Mbps@ 5 GHz

  • Total: 1750 Mbps (1.75 Gbps)

• MIMO:3x3 MIMO(in each band)

• Antenna Gain:

  • 2.4 GHz:3 dBi

  • 5 GHz:3 dBi

🔌 Hardware Specifications

• Ethernet Ports:2x 10/100/1000 Mbps RJ45(1 PoE IN, 1 LAN passthrough)

• PoE Support:

  • 802.3af PoE(Through the switch)

  • The PoE adapter is not included in the box.(On UAP-AC-PRO-5 version)

• Maximum Power Consumption:

  • 9W

🛠️ Physical Properties

• Boyutlar:196.7 x 196.7 x 35 mm

• Ağırlık:350 g(except assembly kits)

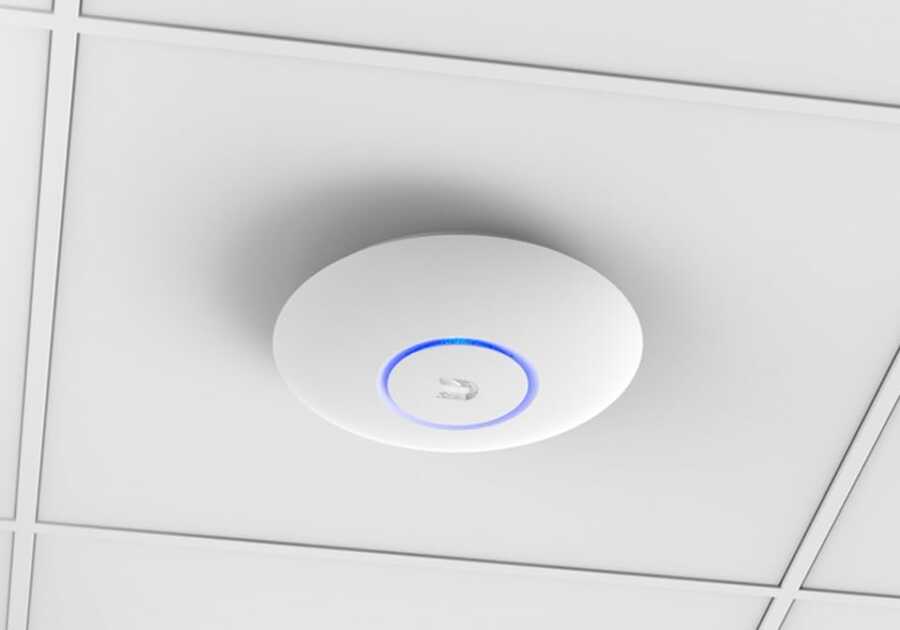

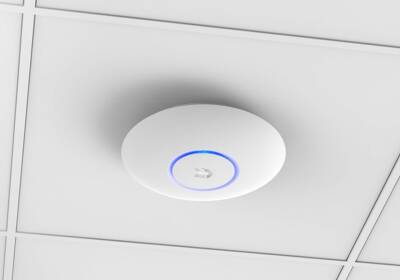

• Assembly Options:Kit included for wall and ceiling installation.

• IP Protection:

  • Suitable for light outdoor use.

  • It has high resistance to humidity and temperature.

• Operating Temperature:-10°C to +70°C

• Moisture ResistanceMaximum 95% density, non-condensing

🌐 Management & Software Features

• Management Software:

  • UniFi Network Controller / UniFi Network Application

  • Web-based or mobile application (iOS/Android)

• Supported Features:

  • VLAN

  • Band steering

  • Guest portal / captive portal

  • QoS, firewall

  • Sıfır el değiştirme ile dolaşım

  • DFS support

  • RF analysis and performance monitoring

  • Multiple SSID (virtual networks)

📦 Box Contents (UAP-AC-PRO-5)

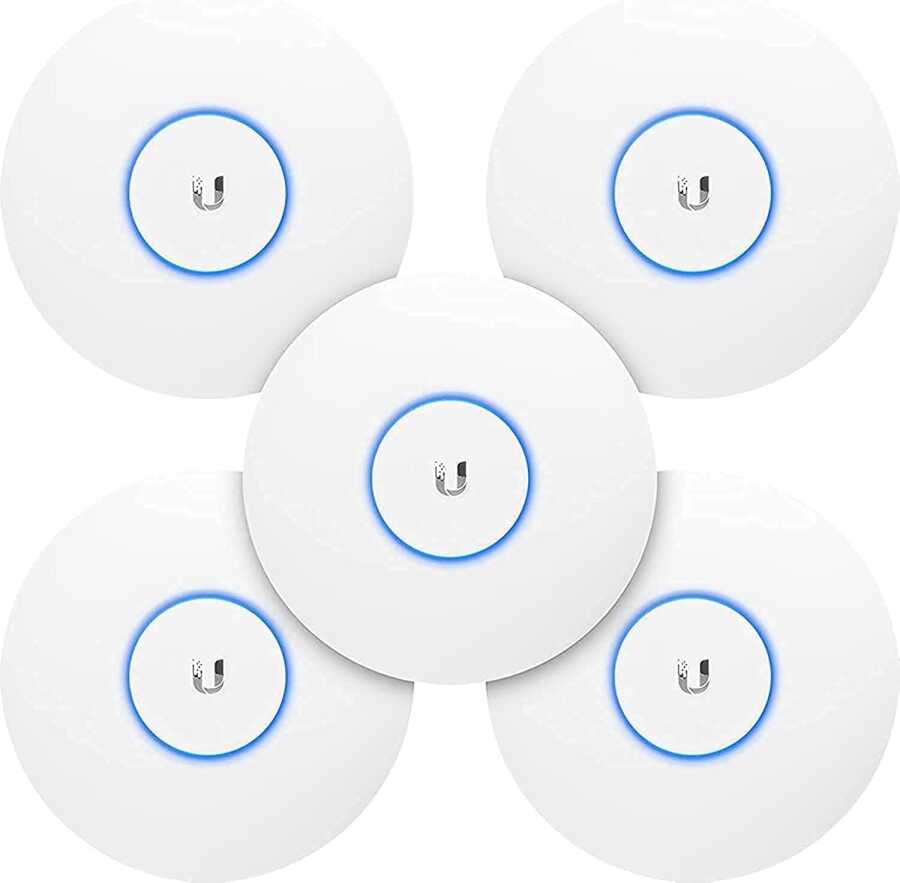

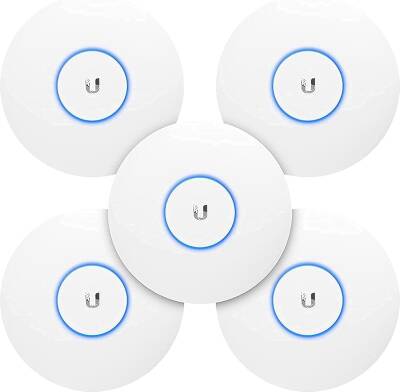

• 5 piecesUAP-AC-PRO device

• Ceiling/pole mounting kits

• Installation guide

⚠️ PoE adapternot included. It is recommended to be used with a PoE-supported switch (UniFi Switch).

🎯 Areas of Use

• Corporate offices

• Schools and universities

• Hotels and hospitals

• Shopping mall, library, and public buildings

• Suitable for light outdoor use (terrace, under the eaves)
