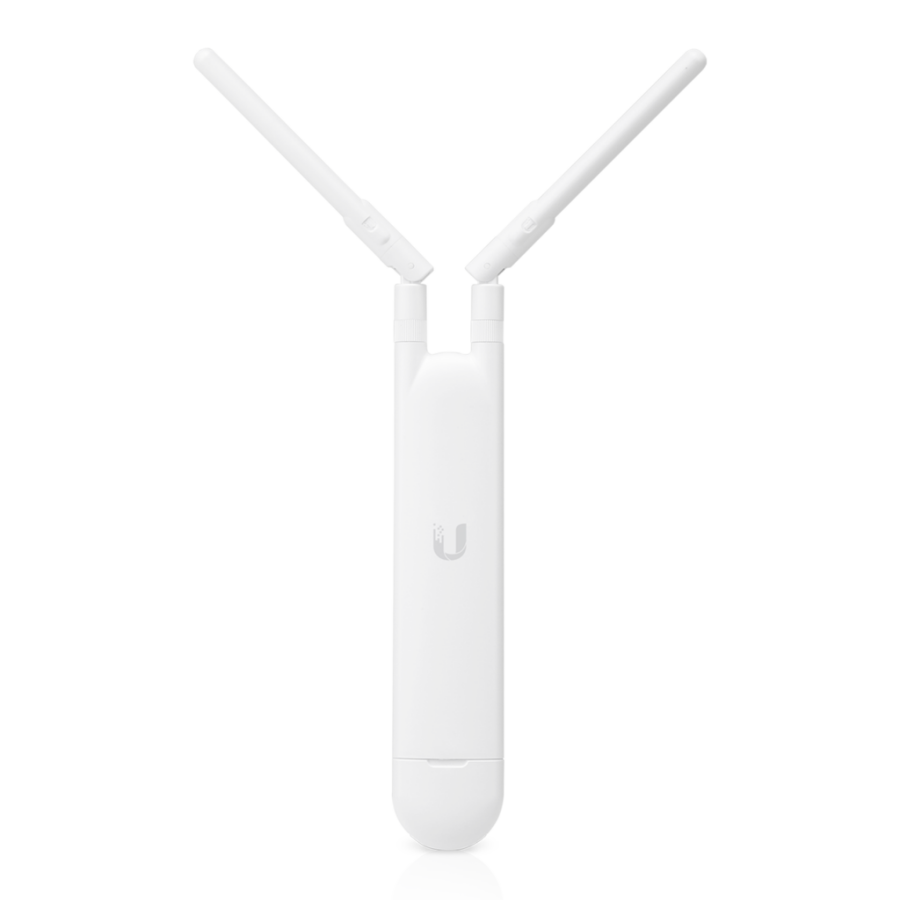

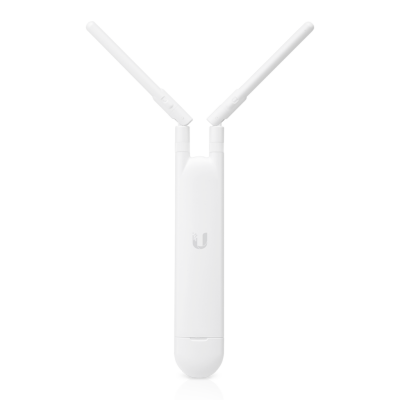

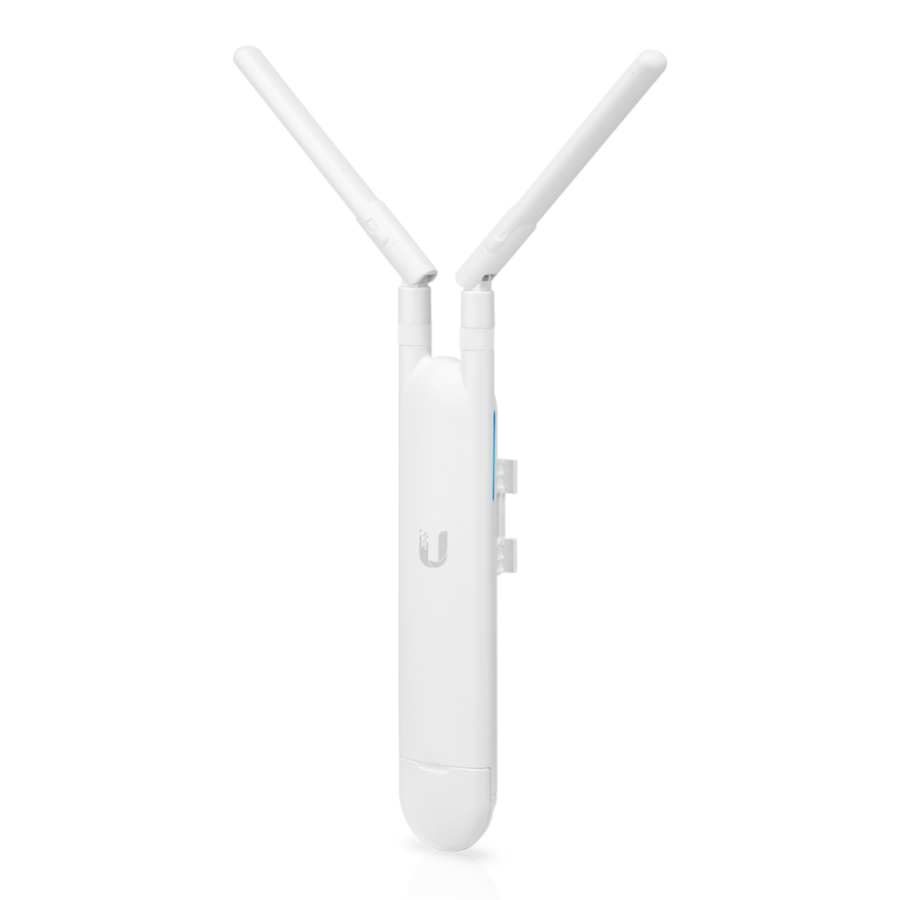

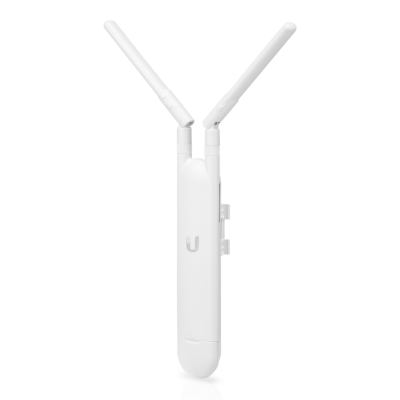

UAP-AC-M(UniFi AC Mesh)Ubiquiti's design for outdoor areas, dual band özellikli It is a Wi-Fi access point.It is suitable for mesh network structures andin open spacesprovides wide coverage area. To expand the coverage area,from multiple devicescan be used togethermeshhas its support.
| Wireless Standard | 802.11 a/b/g/n/ac (Wi-Fi 5) |
| Frequency Band | 2.4 GHz and 5 GHz (Dual-Band) |
| Total Max. Wireless Speed | 1200 Mbps(300 Mbps @ 2.4 GHz + 867 Mbps @ 5 GHz) |
| MIMO Technology | 2x2 MIMO @ 2.4 GHz |
| Antenna Type2 integrated, omnidirectional antennas
| Antenna Gain2.4 GHz: 4 dBi
5 GHz: 6 dBi |
| Coverage Area122 m (open area, depending on environmental conditions)

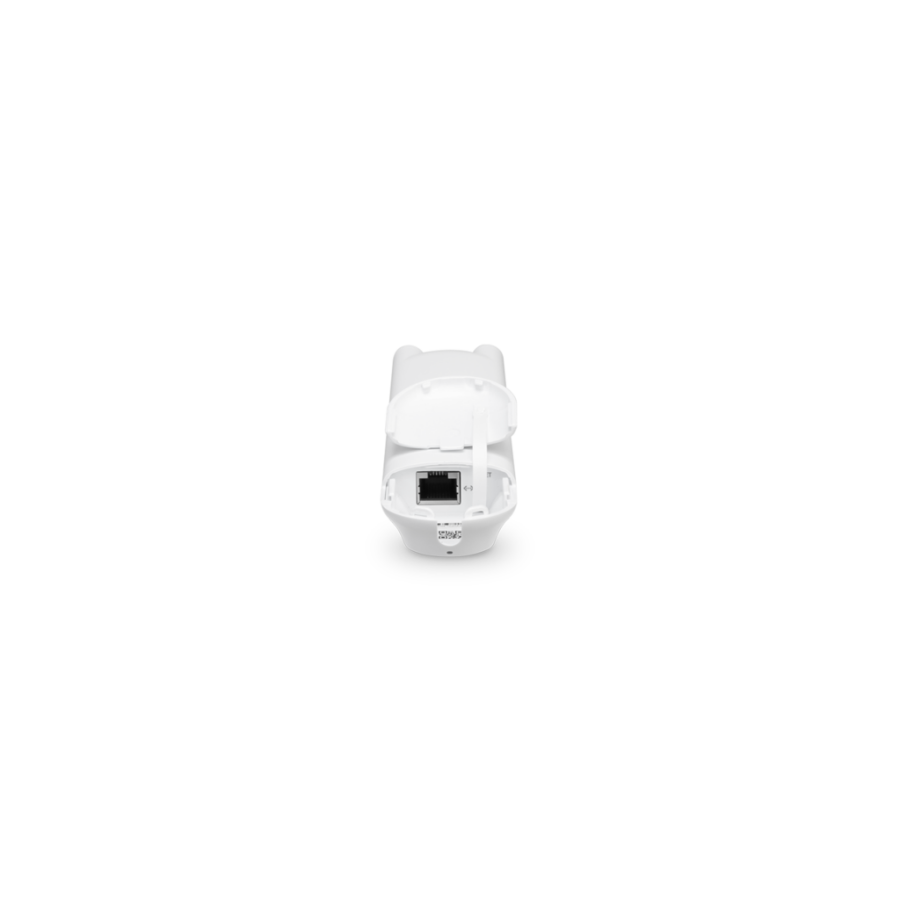

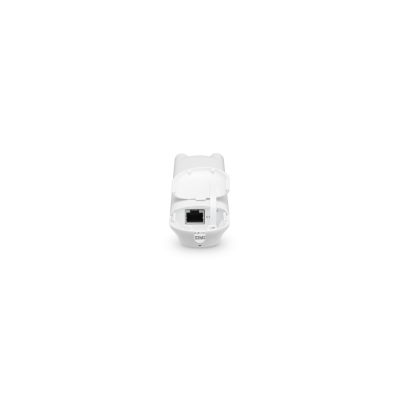

| Ethernet Port | 1 x 10/100/1000 Mbps Gigabit RJ45 |
| PoE Standard | 802.3af PoE |
| PoE Input | 24V passive PoE (PoE adapter not included) |
| Max. Power Consumption | 8.5 W |
| Data Transfer | Connecting via Gigabit Ethernet port |
| Boyutlar | 200 x 200 x 50 mm |
| Ağırlık | 350 g |
| Montaj | Suitable for direct, wall, and ceiling mounting. |
| Cash Register Material | Plastic (durable for outdoor use) |
| Koruma | IP55 (dustproof and waterproof, suitable for outdoor use) |
| Operating Temperature | -20°C to +70°C |
| Management Platform | UniFi Network Controller / UniFi mobile application |
| Number of SSIDs | Up to 4 (for each band) |
| VLAN Support | Evet |
| Guest Portal | Evet |
| Band Steering | Yes (automatically directs devices to the optimal band) |
1 xUAP-AC-M cihazı
1 x Mounting kit (for ceiling and wall mounting)
PoE adapter is not included.
User manual
Open space activities, parks, sports fields
Kampüslerschools, universities
Accommodation sector, hotels and holiday villages
Ofisler, meeting rooms
Restoranlar, cafes, shopping malls
