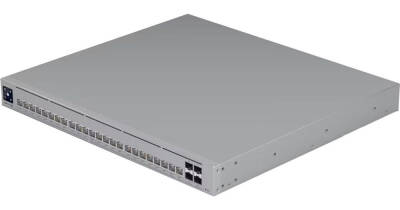

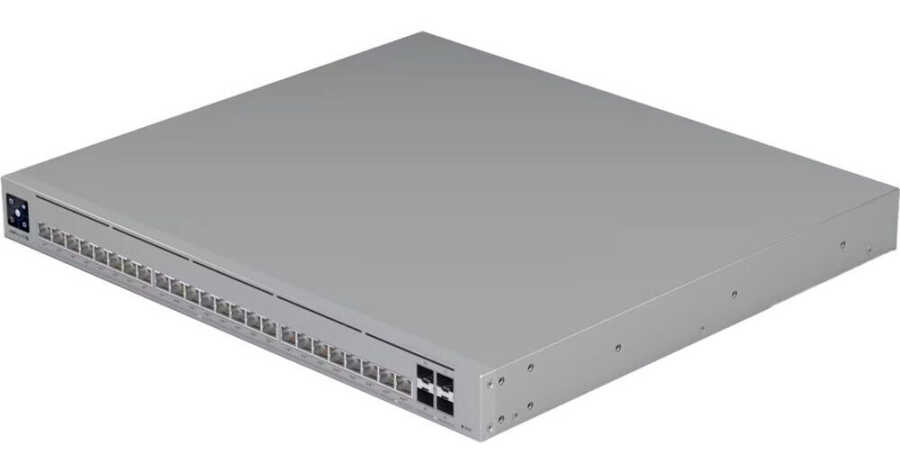

🔌 Ubiquiti UniFi Switch Pro HD 24 PoE (USW-PRO-HD-24-POE-EU), is a high-performance, manageable Layer 3 switch.
⚡ Equipped with 24 1GbE PoE+ ports and 2 10G SFP+ uplink ports.
🌐 With a high PoE budget, it supports IP cameras, Wi-Fi access points, and other PoE devices.
📱 Thanks to the 1.3-inch touchscreen, it provides easy port status monitoring.
🖥️ Ideal for data centers and businesses with a rack-mountable (1U) form factor.
| Özellik | Detaylar |
|---|---|
Number of Ports | 24 × 1GbE RJ45 PoE+ |
Uplink Ports | 2 × 10G SFP+ |
PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
Total PoE Budget | 400W |
Layer 3 Features | Static routing, inter-VLAN routing, DHCP server/relay |
Switch Capacity | 128 Gbps |
İletim Hızı | 95.24 Mpps |
MAC Address Table | 32,000 entries |
VLAN Support | 1.000 VLAN |
Ekran | 1.3 inch touch screen |
Dimensions (WxDxH) | 442.4 × 259 × 43.7 mm |
Ağırlık | 5.4 kg |
Montaj | Rack-mountable (1U) |
Operating Temperature | Between -5°C and 40°C |
| Operating Humidity Ratio | 10% – 90%, non-condensing |
Maximum 30W PoE output per port
Total 400W PoE budget
Supports IEEE 802.3af/at
Corporate network infrastructures
Ideal for security cameras and VoIP devices.
High-density Wi-Fi access points
Data centers and campus networks
High PoE capacity with extensive PoE device support.
Easy management and port tracking with touch screen
Advanced network management with Layer 3 features
Rack-mountable design for easy installation
