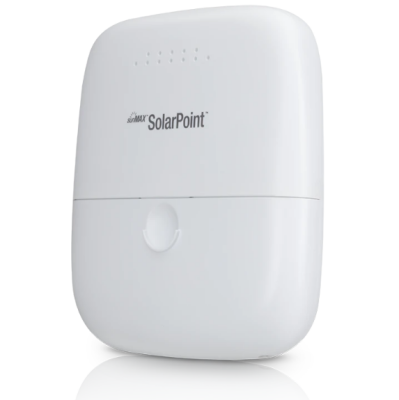

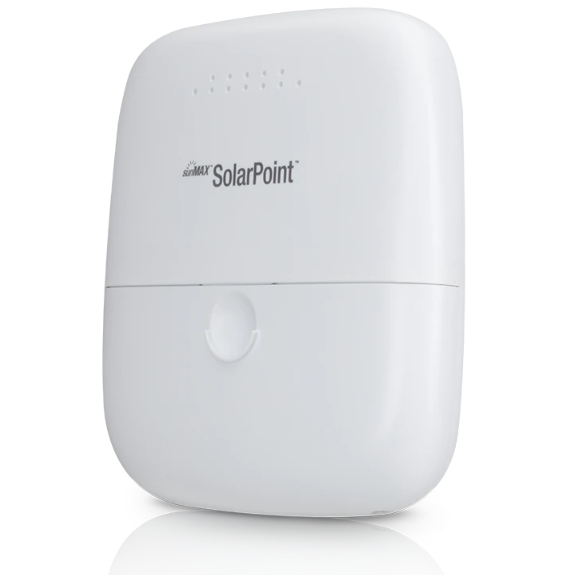

MPPT 24V / 7A Solar Charge Controller + Switch
SM-SP-40 manages the energy from the solar panel while also functioning as an integrated 4-port PoE switch (10/100 Mbps).
Total Output Power: 40 W
24V DC output: ~24 W
PoE output: ~17 W
Total: Can provide output at the 40 W level.
PoE Output4 port, 24V passive PoE (10/100 Mbps)
Solar Panel Input (PV Input): 10 – 60 V (with reverse protection, surge protection)
External 24V Battery ChargingSupports up to 7 A; supports types such as SLA, AGM, gel
Weather Forecast Service & Artificial Intelligence Algorithms
There are internal algorithms to predict the future performance of solar conditions.
| Boyutlar | 202 × 186 × 50 mm |
| Ağırlık | ~ 650 g |
| Cash Register Material | UV resistant polycarbonate, suitable for outdoor structure |
| Protection / Weather Conditions | IPX4 (protection against water splashes) |
| Maximum Power Consumption (itself) | ~ 2 W |
| Operating Temperature | -20 °C to +50 °C |

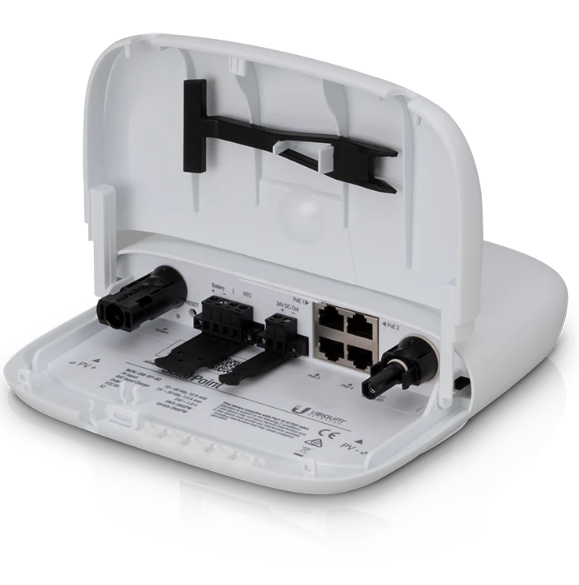

| Connections / Interfaces | 4 × 10/100 Mbps RJ45 PoE port, 1 × 24V DC terminal output, PV panel input, reset button, LED indicators |
| Sertifikalar | CE, FCC, IC (compliant with international regulations) |
✅ It can be integrated into solar-powered systems; it can provide both energy and data infrastructure with a single device.
✅ Thanks to its weather-resistant structure, it can be used in places such as roofs, towers, and poles.
✅ It offers the ability to monitor energy production, consumption, and status with remotely controllable features.
✅ With both PoE output and DC output, it provides flexible power supply to different devices.
