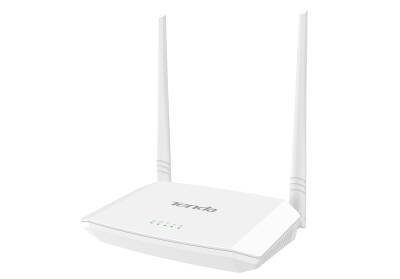

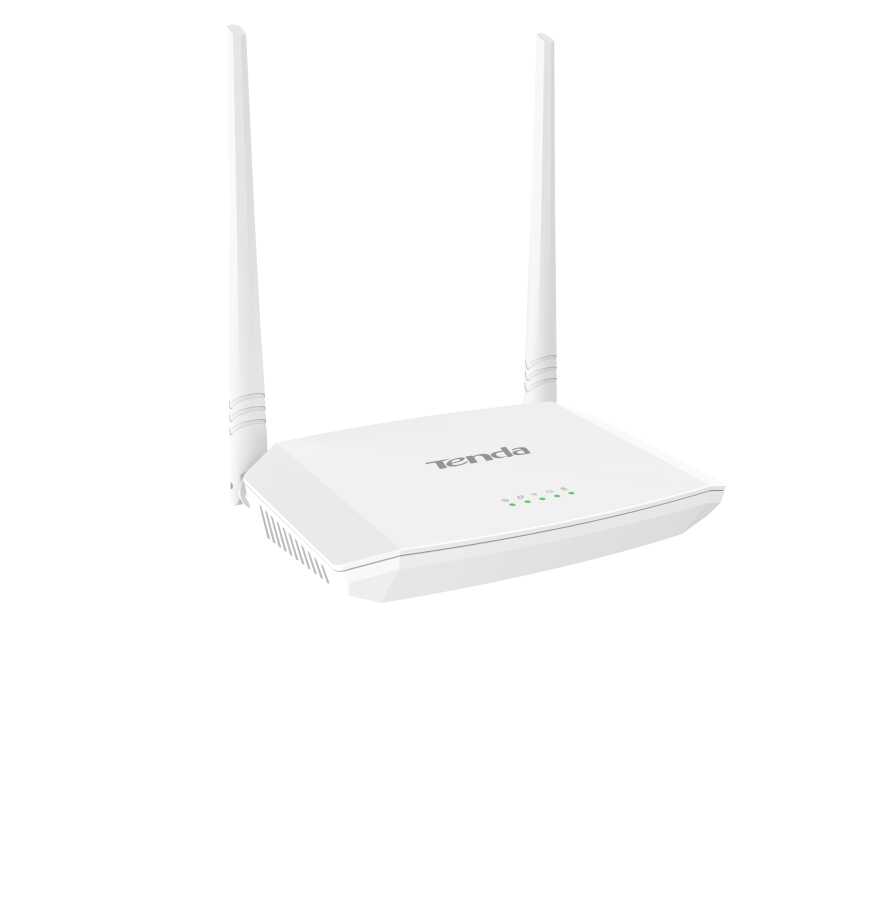

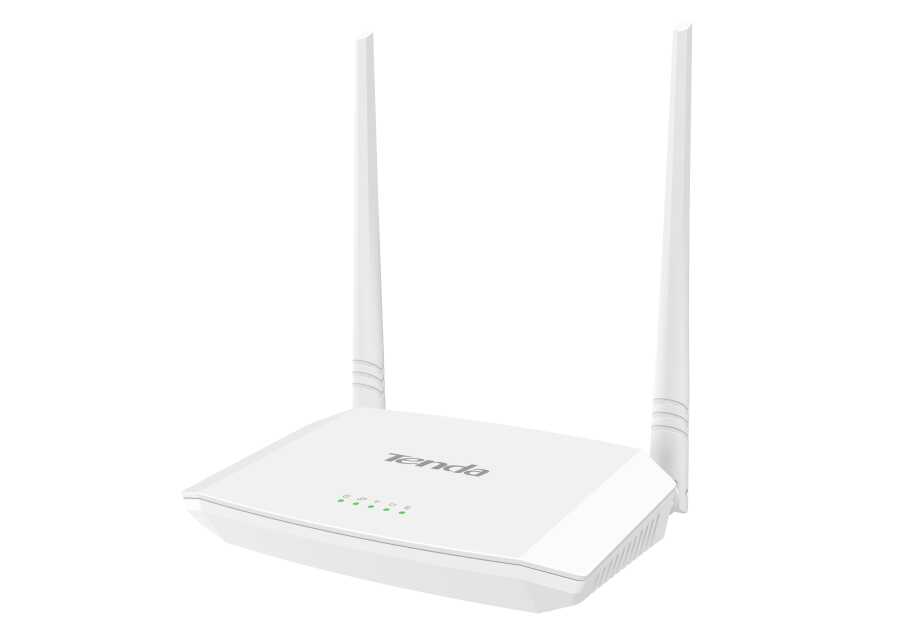

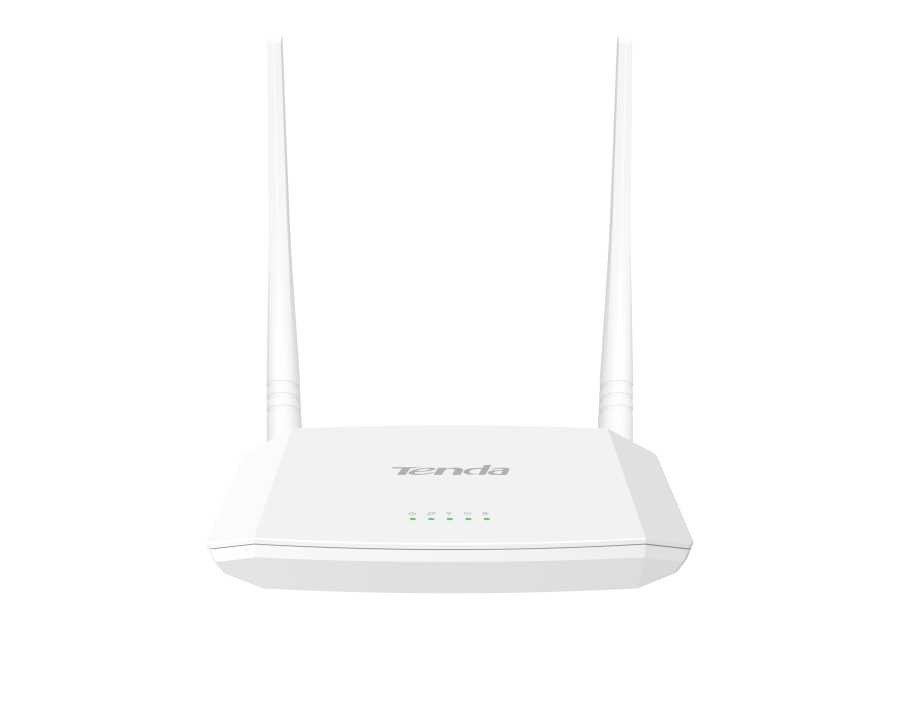

TENDA V300 WRL 4 PORT VDSL
Donanım
IEEE Standartları
IEEE802.11b/g/n, IEEE 802.3, 802.3u,IEEE 802.1Q
xDSL Standardı ve Protokolü
ITU G.993.2, Up to 17a /30a profile
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ITU-T G.993.2 VDSL2
ITU-T G.993.1 VDSL
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ITU-T G.992.4.ADSL2 (G.Lite bis)
ITU-T G.992.3 ADSL2(G.DMT.bis)
ITU-T G.992.5 ADSL2✚

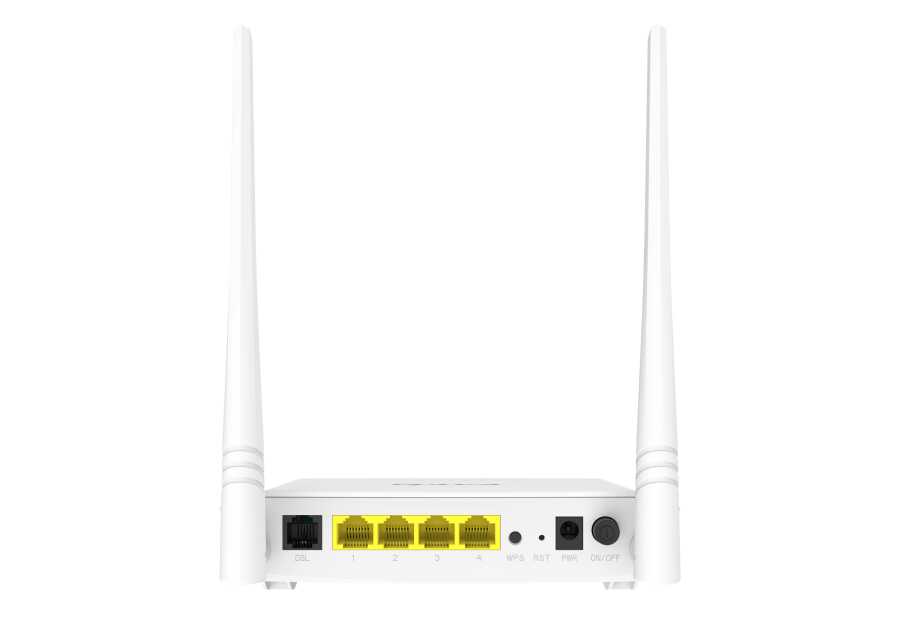

Arayüzler
3 *10/100 RJ45 LAN Ports
1 *10/100 RJ45 LAN/WAN Port
1 *RJ11 Port
Boyut
157.8 × 105.2 × 29.4mm(W * D * H)
LED Göstergesi
PWR,Internet,WLAN,LAN ,DSL
Sertifikasyon
CE, RoHS,VOC
Yazılım
Protokoller
Supports IPv4
ATM/PPP Protokolleri
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
WAN Bağlantısı
PPPoE , Dinamik IP, Statik IP, Köprü
Hizmetler
DDNS,Port Forwarding,DMZ,IPTV
DHCP Sunucusu
DHCP Server,Client List, Address Reservation
Yönetim
Web Based device Configuration(HTTP),
Web Based Firmware Upgrade, Diagnostic Tools
Gelişmiş işlevler
Routing,Port Mapping(Grouping), Static Routing, DNS proxy, IGMP
Güvenlik Duvarı
IP and Port Filtering,URL Blocking,DDOS
Diğer Fonksiyonlar
ALG,Ping Diagnostics,System Log,DSL Statistics
Kablosuz
Kablosuz Standart
IEEE 802.11b/g/n 2.4GHz
Kanal Aralığı
2.4G:Auto,CH1-CH13
Kablosuz Hız
300Mbps at 2.4GHz
İletim Gücü
2.4GHz <20dBm(EIRP)
Kablosuz İşlevler
Enable/Disable Wireless Radio,Guest network,Access Control,WPS
Kablosuz Güvenlik
None, WPA,WPA2,WPA/WPA2
Çevre
Depolama sıcaklığı
-40°c ~ 70°c
Çalışma Sıcaklığı
0℃~40℃ (32℉ ~104℉)
Çalışma Nemi
%10 ~ %90 (Yoğuşmasız)
Depolama Nemi
%5 ~ %90 (Yoğuşmasız)
Diğer
Paket İçeriği
N300 Wi-Fi VDSL/ADSL Modem Router*1
External Splitter*1
Power Adapter*1
RJ11 DSL Cable*2
RJ45 Ethernet Cable*1
Quick Installation Guide*1
