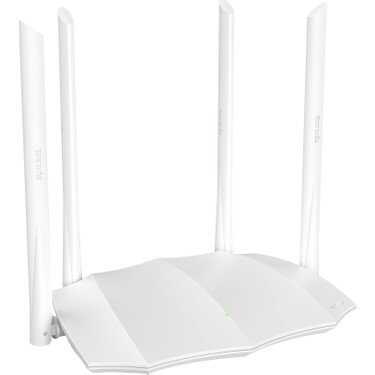

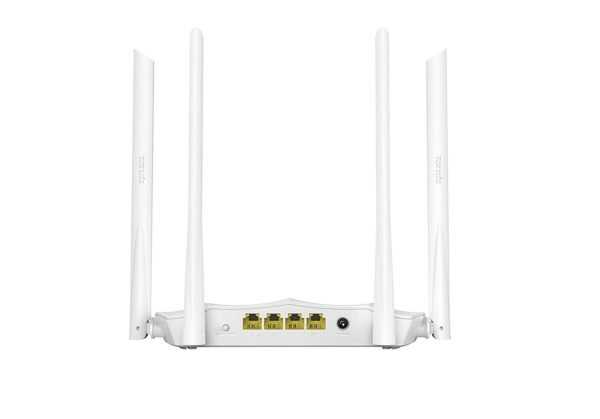

TENDA AC5 ROU 1200Mbps 4 Port Dual Band N-Router

Standart

IEEE802.3, IEEE802.3u

Arayüz

10/100 Mbps WAN port*1
10/100 Mbps LAN port*3

Anten

5dBi External antenna*4

Buton

WPS/Reset button*1, WiFi on/off button*1

Güç

AC input: 100-240V-50/60Hz, 0.2A
DC output: 9V 1A

LED

System*1, WiFi*1, WAN*1, LAN*3

Kablosuz Hız

5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps

Sıklık

Concurrent dual band 2.4 GHz & 5 GHz

İletim Gücü

2.4G:
16dbm@MCS7
17dbm@OFDM 54M
19dbm@CCK 11M
5G:
12dbm@MCS9
14dbm@MCS7

Temel Özellikler

SSID Broadcast: Enable/Disable
Beamforming
MU-MIMO

Kablosuz Güvenlik

WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS (WiFi Protected Set-up) quick encryption

İnternet Bağlantı Türü

PPPoE, Dynamic IP, Static IP
PPPoE (Russia), PPTP (Russia), L2TP (Russia)

Operating Mode

Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Sunucusu

DHCP Server
DHCP Client List
DHCP Reservation

Sanal Sunucu

Port Forwarding
DMZ Host
UPnP

Güvenlik

Client Filter (support blacklist and whitelist)
Parental Control
Remote Management

Firewall

Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS

Support DDNS, No-ip, 3322.org, Oray.com, 88ip

VPN

Ipsec
PPTP
L2TP
PPTP client
L2TP client

Özellikler

PPPoE Username/Password Clone
Smart WiFi Schedule
Smart Sleeping Mode
Smart LED on/off
Tenda WiFi App

Diğer

Bandwidth Control
Guest Network
IPTV
MAC Address Clone
Static Routing
System Log
Backup & Restore configurations
Online firmware upgrade
Local firmware upgrade

Sıcaklık

Operating Temperature: 0℃ - 40℃
Storage Temperature: -40℃ -70℃.

Nem

Operating Humidity: (10 - 90)% RH non-condensing
Storage Humidity: (5 - 90%) RH non-condensing.

Varsayılan Ayarlar

Default Access: tendawifi.com

Belgeleme

CE/FCC/RoHS

Paket İçeriği

AC1200 Smart Dual-Band WiFi Router
Power Adapter
Quick Installation Guide
Ethernet Cable
