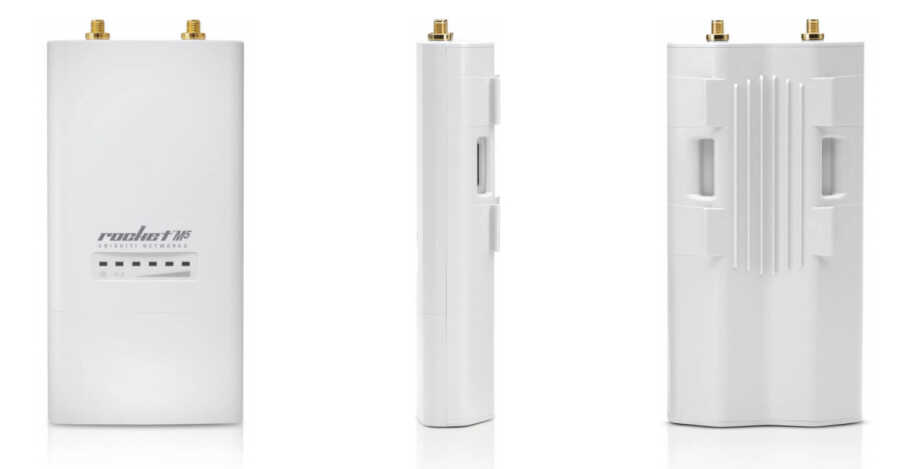

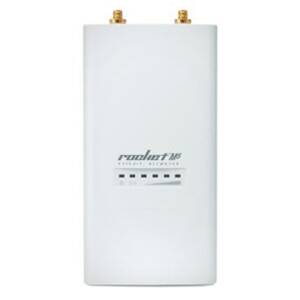

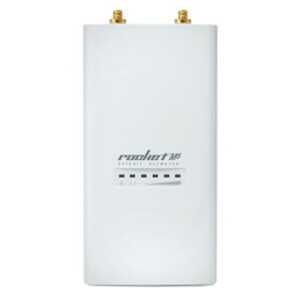

Ubiquiti Rocket M5, a high-performance and durable one operating in the 5 GHz frequency bandpoint-to-multipoint (PtMP) and point-to-point (PtP)The base station is a radio device. It provides delay-free, stable, and reliable connections with airMAX TDMA technology. It is preferred for WISP and enterprise wireless networks.
🔌 Connections & Ports
1 × 10/100/1000 Mbps Gigabit Ethernet port
Passive PoE support (24V)
For external antenna connection, RP-SMA connectors
📡 Wireless Features
Frequency Range: 4.9 – 6.1 GHz (varies by model and region)
Maximum Transmit Power: 27 dBm
Technology: airMAX TDMA protocol
MIMO: 1x1 (Rocket M5 model)
Channel Width: 20 / 40 MHz
Antenna Connection: External antenna support (external antenna required)
⚙️ Hardware Specifications
Processor: Atheros MIPS 24KC, 400 MHz
RAM: 32 MB
Flash Memory: 8 MB
Maximum Power Consumption: 5.5W
LED Indicators: Power, LAN, Signal Level
🌦️ Durability & Environmental Conditions
Weather-resistant outdoor design
Operating Temperature: -30°C ~ +80°C
UV resistance and protection against water
Wind resistance: 200 km/h
🛠️ Areas of Use
Point-to-Multipoint (PtMP) network infrastructures
Point-to-point (PtP) wireless connections
WISP infrastructures and wide area wireless access
Security systems and data transfer projects
📦 Package Contents
Rocket M5 device
Assembly apparatuses
24V PoE adapter
Power cable
User manual
