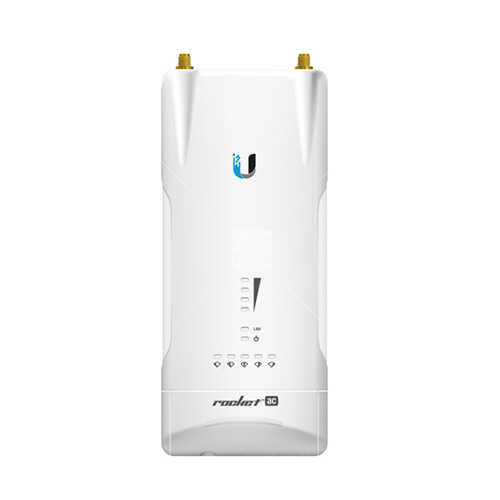

Ubiquiti Rocket 5AC PTMP, a high-performance and scalable one operating in the 5 GHz frequency bandpoint-to-multipoint (PtMP) base station radio deviceWith airMAX AC technology, it provides fast and stable connections to multiple clients over large areas. It is ideal for WISP projects and enterprise wireless networks.
🔌 Connections & Ports
1 × 10/100/1000 Mbps Gigabit Ethernet port
Passive PoE support (24V, 0.5A)
For external antenna connection, RP-SMA connectors
📡 Wireless Features
Frequency Range: 5150 – 5875 MHz
Transmit Power: Maximum 27 dBm
Technology: airMAX AC, TDMA protocol
MIMO: 2x2 MIMO support
Channel Width: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz
Antenna Connection: Compatible with external antennas
⚙️ Hardware Specifications
Processor: Atheros MIPS 74Kc, 560 MHz
RAM: 64 MB DDR2
Flash Memory: 8 MB
Maximum Power Consumption: 6.5W
LED Indicators: Power, LAN, Signal status
🌦️ Durability & Environmental Conditions
UV protected outdoor design
Operating Temperature: -40°C ~ +70°C
Wind Resistance: 200 km/h
IP55 water and dust protection certificate
🛠️ Areas of Use
Point-to-Multipoint (PtMP) wireless network infrastructures
Central base station for WISP solutions
Campus and wide area wireless network deployments
High capacity and reliable internet access
📦 Package Contents
Rocket 5AC PTMP device
Assembly apparatus
24V, 0.5A PoE adapter
Power cable
User manual
