R5AC-PRISM

🔧 Technical Specifications

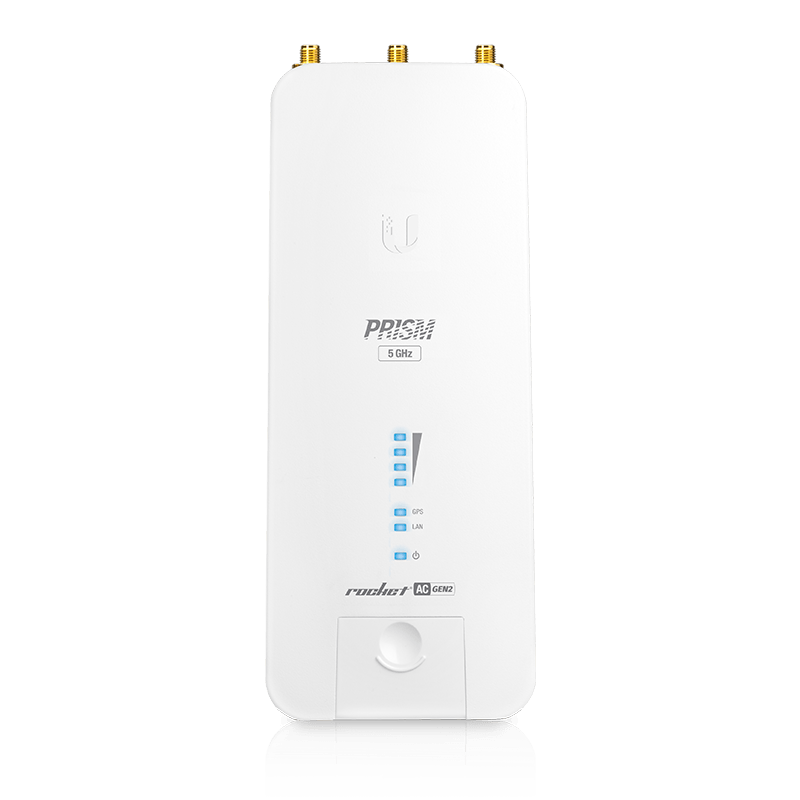

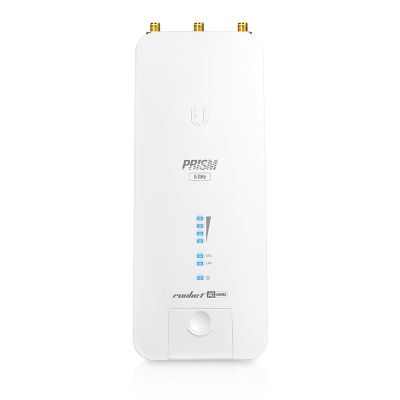

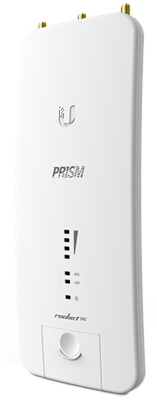

• Model: Rocket 5AC Prism (RP-5AC-Gen2)

• İşlemci: Atheros MIPS 74Kc, 720 MHz

• Bellek: 128 MB DDR2 SDRAM, 16 MB NOR Flash

• Frequency Band: 5 GHz (5150 – 5875 MHz)

• Wireless Standards: 802.11a/n/ac

• Channel Widths:

  • PtP Mode: 10/20/30/40/50/60/80 MHz

  • PtMP Mode: 10/20/30/40 MHz

• Maximum Output Power: 27 dBm

• Purchase Sensitivity: From BPSK to 256QAM, between -96 dBm and -65 dBm

• Ethernet Port: 1 x 10/100/1000 Mbps Gigabit Ethernet

• RF Connectors: 2 x RP-SMA (waterproof), 1 x GPS (waterproof)

• Power Supply: 24V, 0.5A Gigabit PoE adapter (included in the package)

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Maximum Power Consumption8.5W

• Operating Temperature: -40 to 80°C

• Working Moisture: 5% to 95% (non-condensing)

• Cash Register Material: Cast aluminum, white powder coating

• Boyutlar: 88 x 40 x 230 mm

• Ağırlık: 400 g

• LED Indicators: Power, LAN, GPS, 4 Signal Strengths (configurable via software)

• Montaj: Kit included for direct mounting.

• Sertifikalar: CE, FCC, IC, RoHS

• ESD/EMP Protection: ±24 kV Air / Contact

🌐 Software and Features

• Modlar: Access Point, Station

• Management Interface: airOS, web-based GUI, SSH, SNMP, Telnet

• Advanced Tools: airView spectrum analyzer, antenna alignment tool, site survey, ping, traceroute, speed test

• Güvenlik: Only WPA2 AES

• QoS: Packet-level classification (WMM), user-level prioritization (High/Medium/Low)

• Ubiquiti Special Features: airMAX AC mode, traffic shaping, Ackless mode, frequency band offset​

📦 Package Contents

• Rocket 5AC Prism device

• 24V, 0.5A Gigabit PoE adapter

• Power cable

• Direct mounting kit​
