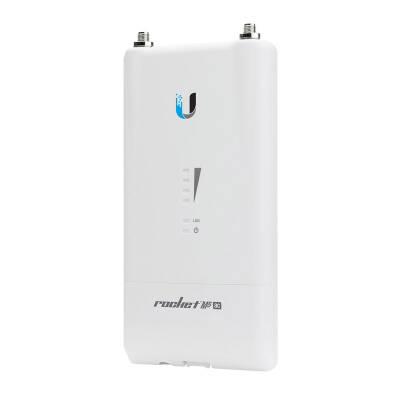

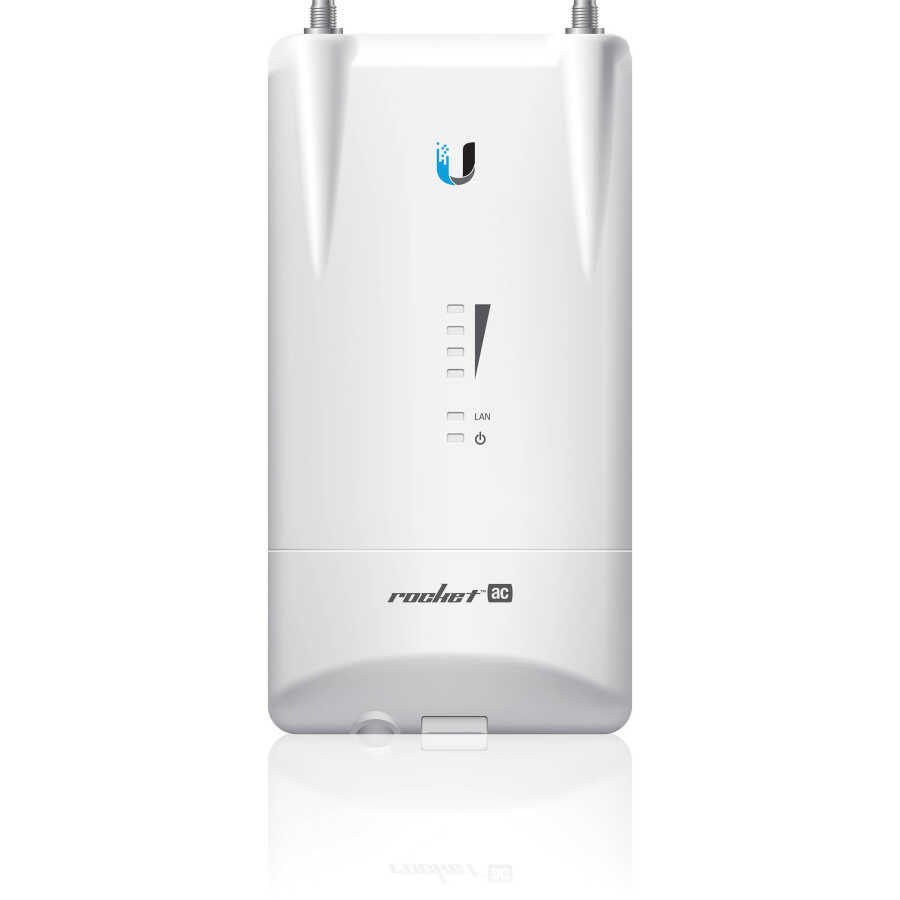

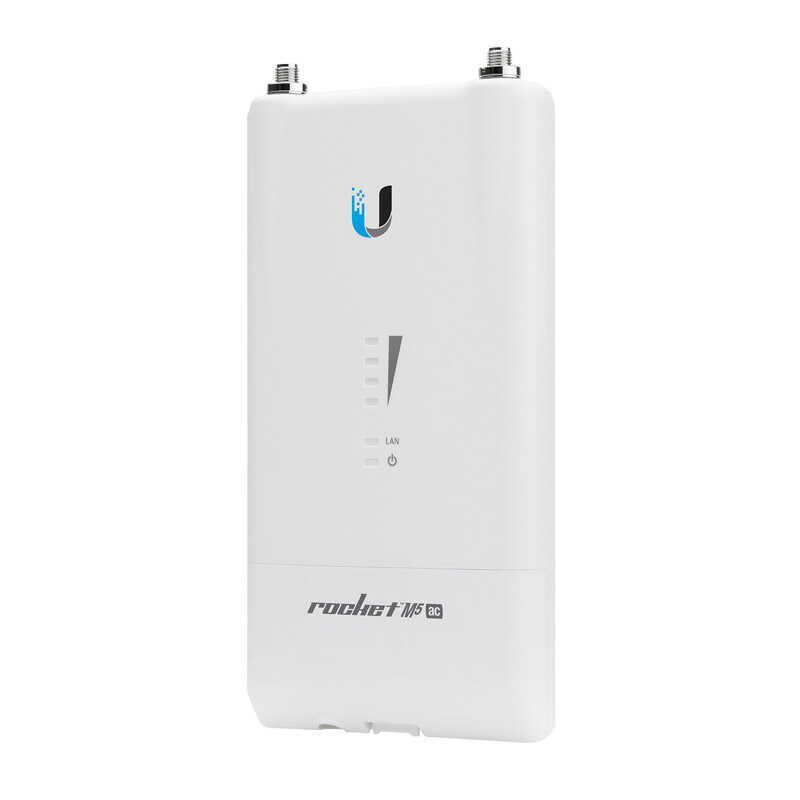

Ubiquiti Rocket 5AC Lite, a compact and powerful one operating in the 5 GHz frequency band,airMAX AC BaseStation is a radio device.It serves as a central station in wireless network infrastructures with high data speed and low latency. It is ideal for WISP solutions with easy installation and wide device compatibility.
🔌 Connections & Ports

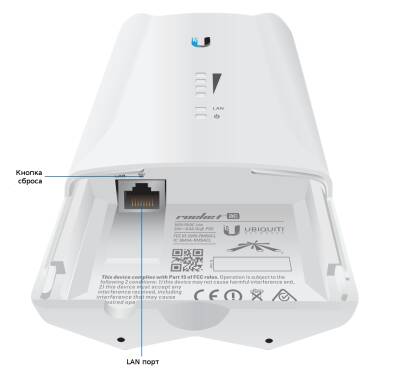

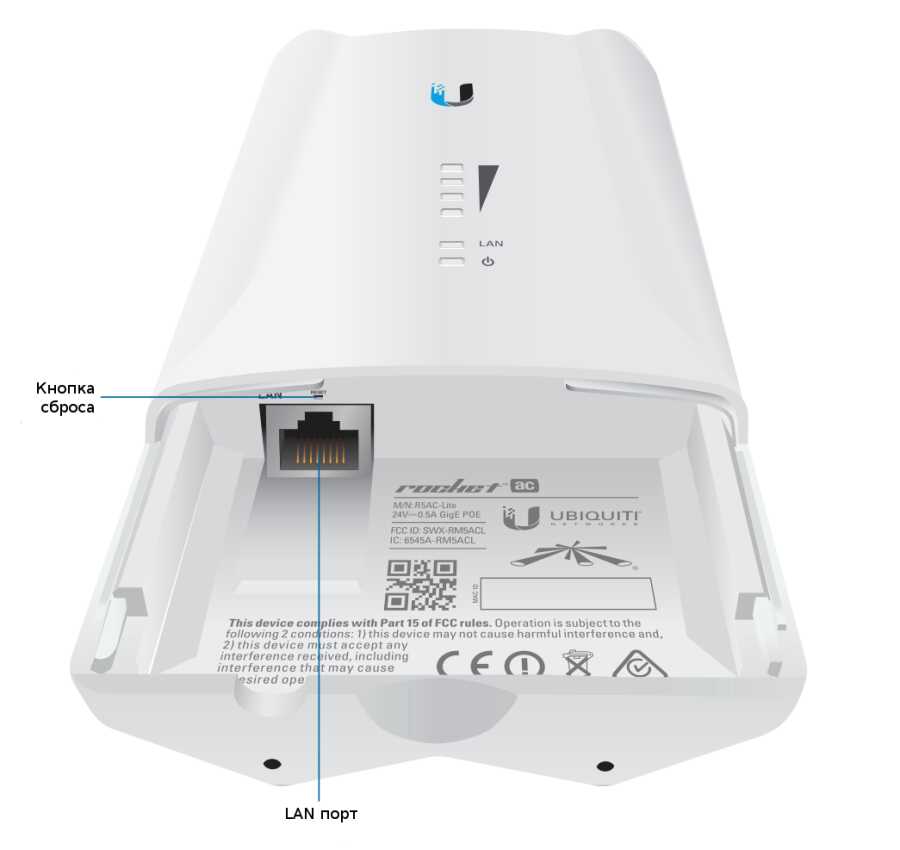

1 × 10/100/1000 Mbps Gigabit Ethernet port
Passive PoE (24V, 0.5A) support
For external antenna connection, RP-SMA connectors
📡 Wireless Features
Frequency Range: 5150 – 5875 MHz
Transmit Power: Maximum 27 dBm
Technology: airMAX AC, TDMA protocol
MIMO: 2x2 MIMO support
Channel Width: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz
Antenna Connection: Suitable for use with external antennas.
⚙️ Hardware Specifications
Processor: Atheros MIPS 74Kc, 560 MHz
RAM: 64 MB DDR2
Flash Memory: 8 MB
Maximum Power Consumption: 6.5W
LED Indicators: Power, LAN, Signal
🌦️ Durability & Environmental Conditions
UV resistant outdoor housing
Operating Temperature: -40°C ~ +70°C
Wind Resistance: 200 km/h
IP55 water and dust protection
🛠️ Areas of Use
It is used as a base station.
Point-to-multipoint (PtMP) wireless networks
Main radio device in WISP infrastructures.
High-performance wireless deployments
📦 Package Contents
Rocket 5AC Lite device
Assembly apparatuses
24V, 0.5A PoE adapter
Power cable
User manual
