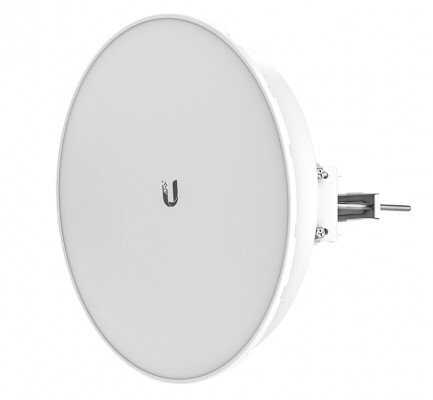

Ubiquiti PowerBeam M5 400 ISO, operating in the 5 GHz frequency band, with its high-gain 400 mm insulated parabolic antenna for long-distancepoint to point (PtP)It is an ideal outdoor CPE device for wireless connections. Thanks to its isolated antenna design, it minimizes interference, thus providing a cleaner and more stable signal.
🔌 Connections & Ports
1 × 10/100/1000 Mbps Gigabit Ethernet port
Easy and flexible power solution with passive PoE support (24V, 0.5A)
Plug and play easy installation capability
📡 Wireless Features
Frequency Range: 5150 – 5875 MHz
Antenna Gain: 25 dBi

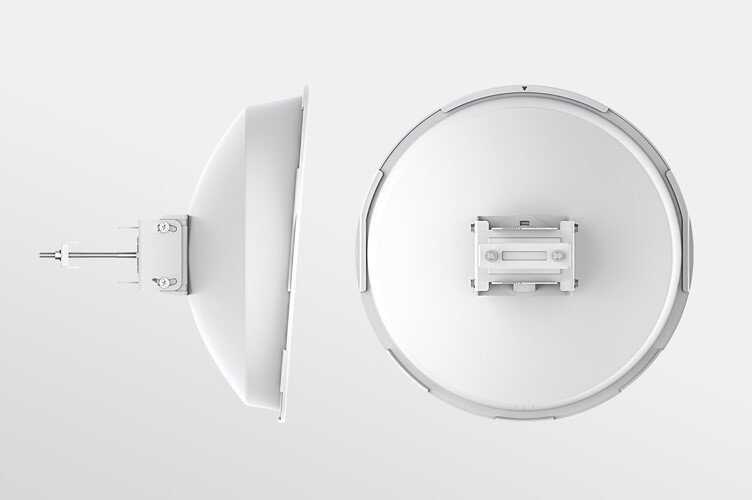

400 mm diameter insulated parabolic reflector antenna
airMAX TDMA technology delivers high performance and low latency
2x2 MIMO technology
Channel Width: 20 / 40 MHz
Dual-linear polarization
⚙️ Hardware Specifications
560 MHz Atheros MIPS processor
64 MB DDR2 RAM, 8 MB flash memory
Maximum power consumption: 6.5W
It supports the device's optimal operation with integrated temperature sensors.
LED indicators: Power, LAN, Signal level
🌦️ Durability & Environmental Conditions
UV resistant sturdy outdoor housing
IP54 certified water and dust protection
Operating Temperature: -40°C to +70°C
High wind resistance: 200 km/h
The isolated antenna structure prevents interference and signal confusion.
🛠️ Advanced Features
airOS operating system with advanced management and configuration options
Thanks to QoS (Quality of Service) support, data traffic is prioritized.
Advanced spectrum analysis and interference management
VLAN support and security protocols
Uninterrupted power supply with redundant PoE ports.
🛠️ Areas of Use
Long-range, high-speed point-to-point wireless connections
Backhaul solutions in corporate and WISP network infrastructures.
Security systems, CCTV, and IoT device connections
Campus and wide area wireless network projects
📦 Package Contents
PowerBeam M5 400 ISO device
Mounting fixtures (including pole mounting kit)
24V, 0.5A PoE adapter
Power cable
User manual and quick installation guide
