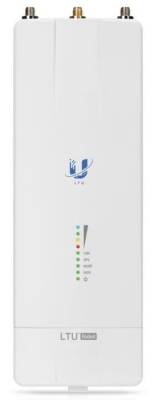

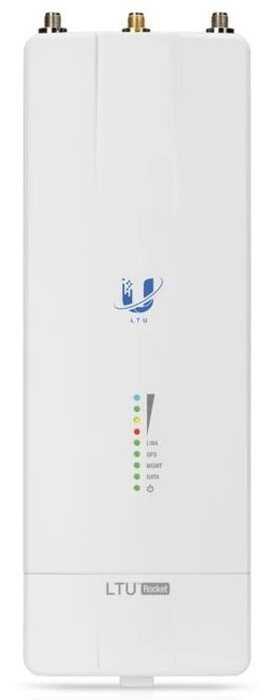

📡 Ubiquiti LTU-Rocket — Technical Information

📝 Overview

• Base station radio using LTU (Long-Term Ubiquiti) protocol..

• In the 5 GHz bandIt was designed for high-capacity point-to-multipoint (PtMP) connections.

• Instead of AirMax ACSpecial LTU technologywith more throughput and lower latency.

• Modular design compatible with different antennas (sector, dish).

⚙️ Hardware Specifications

• Frequency Range:5.150 – 5.875 GHz

• Channel Width:10 / 20 / 30 / 40 / 50 MHz (adjustable)

• Maximum Capacity:600+ Mbps (theoretical, in PtMP scenarios)

• Max. Modulation:Up to 4096-QAM

• TX Power:Up to 22 dBm

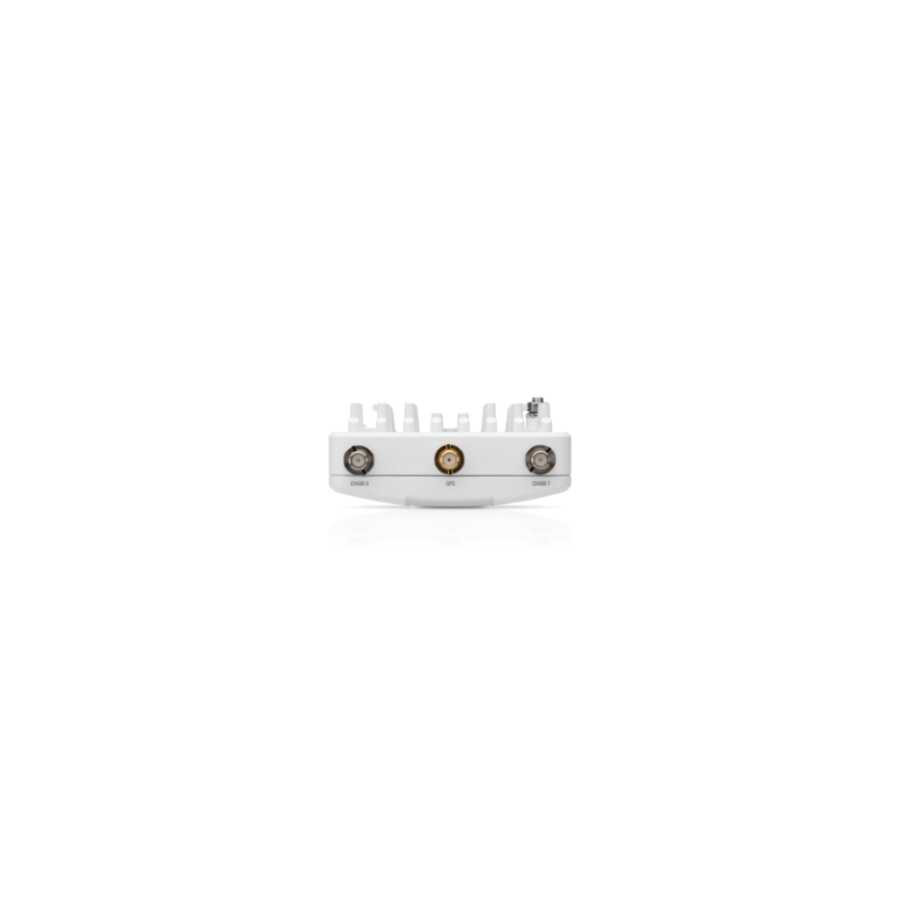

• Anten:External (compatible with Rocket series antennas, sector or dish can be used)

🔌 Connection & Power

• Ethernet Port:1 × 10/100/1000 Mbps RJ45

• Besleme:

  • 24V Passive PoE

  • Maximum Power Consumption: ~8.5 W

🔒 Security & Management

• WPA2 AES wireless security

• VLAN support

• QoS (bandwidth management)

• Yönetim:

  • Web interface

  • UNMS (Ubiquiti Network Management System)

  • AirControl / LTU Configuration

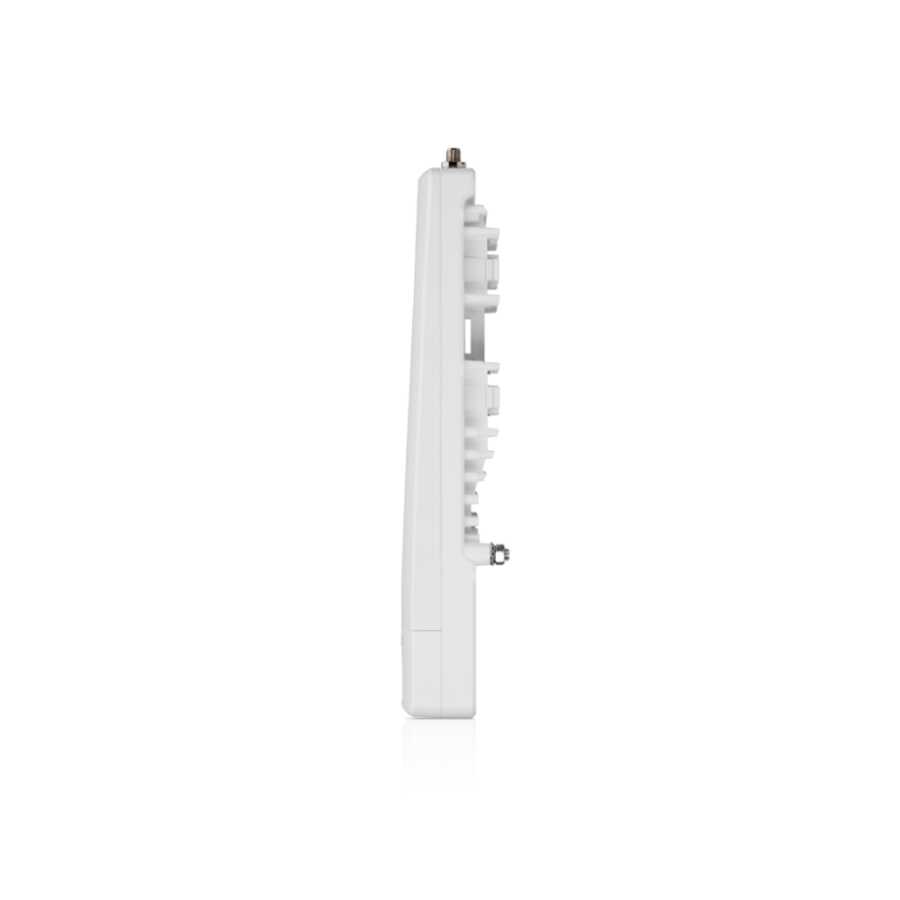

📐 Physical Properties

• Boyut:162 × 84 × 48 mm

• Ağırlık:250 g

• Montaj:Direct/outdoor compatible Rocket mounting kits with

• Dayanıklılık:IP67 protection class (water and dust resistant)

• Operating Temperature:-40 °C ~ +55 °C

🚀 Usage Scenario

• Base station (BaseStation Radio)It serves CPE devices such as LTU-Lite or LTU-Pro.

• For ISPswireless internet distribution(especially rural areas).

• Scalable infrastructure capable of handling high user density.
