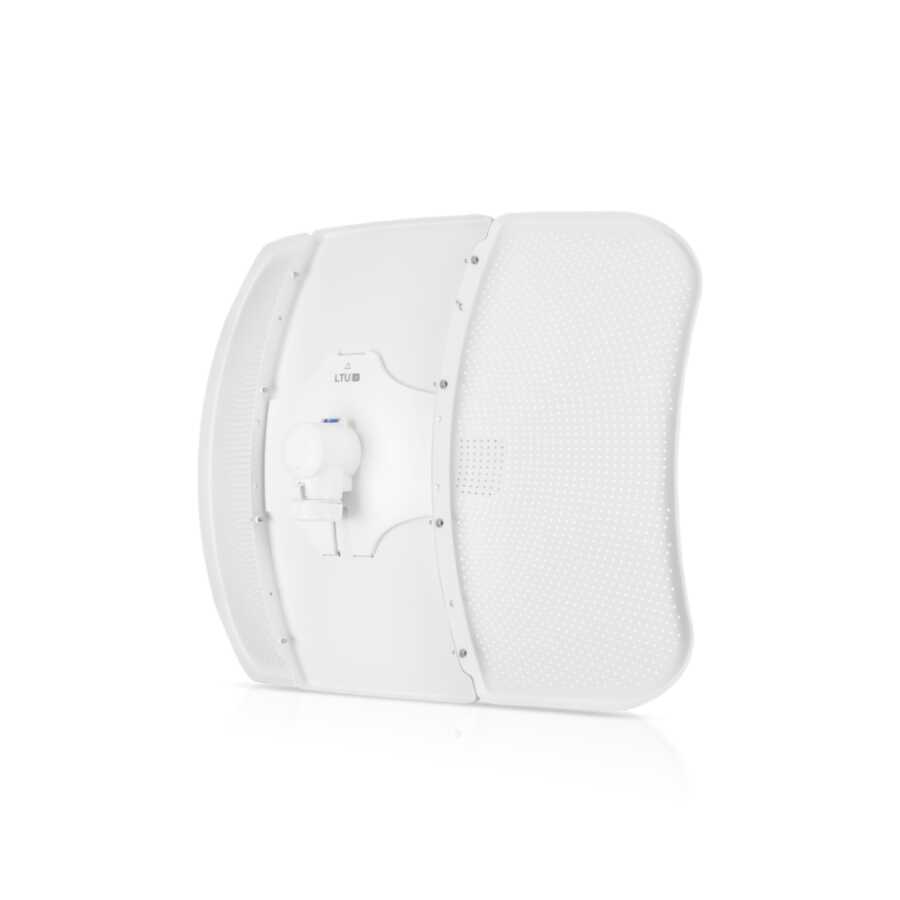

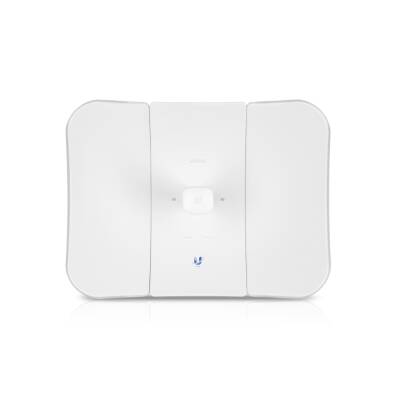

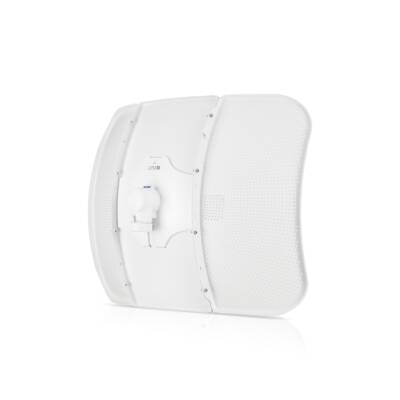

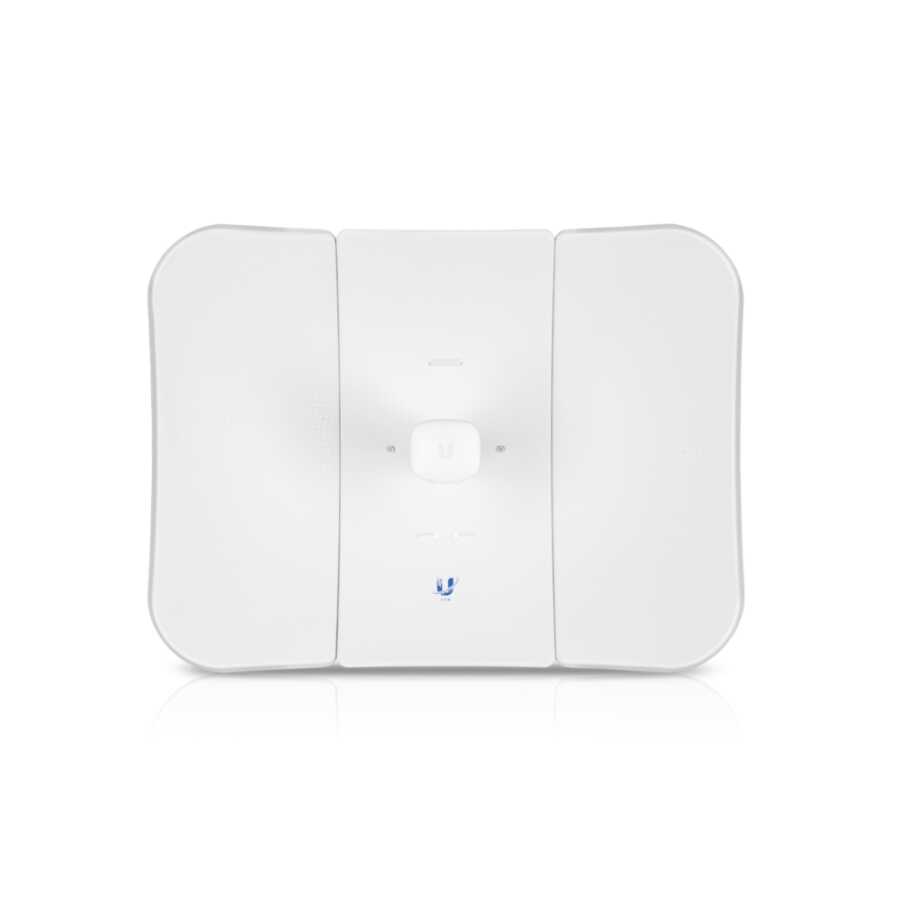

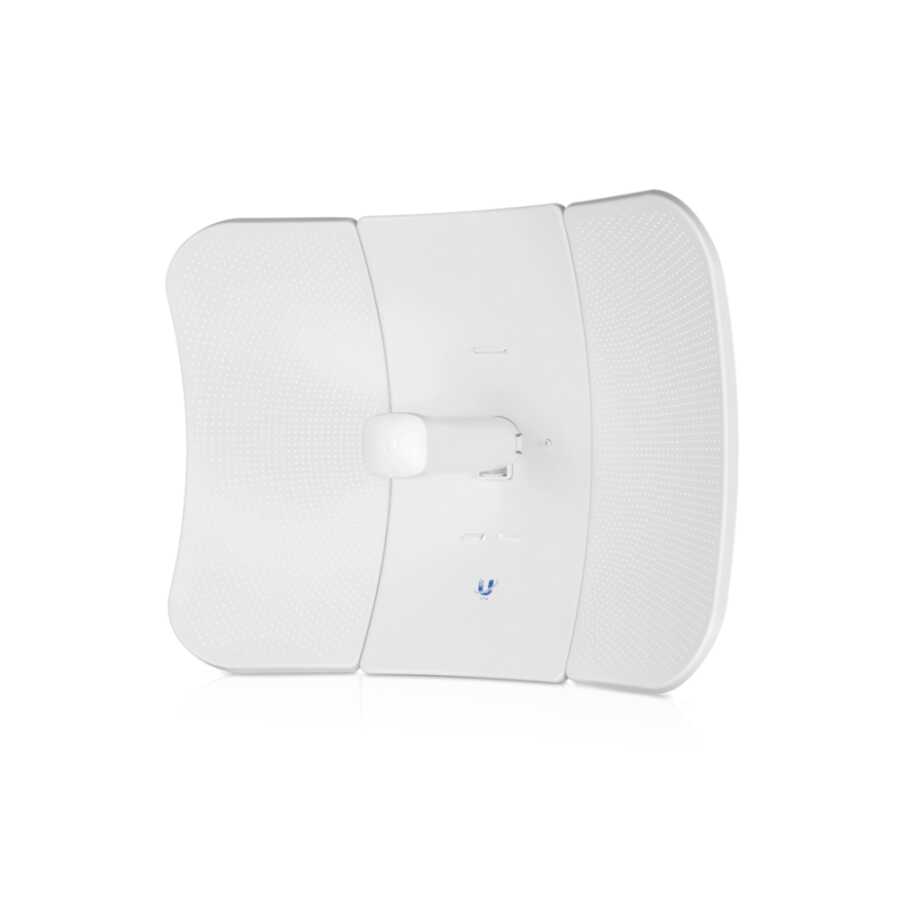

📡 Ubiquiti LTU-LR — Technical Information

📝 Overview

• LTU (Long-Term Ubiquiti) protocollong range working withCPE device.

• In the 5 GHz bandhigh performance connection.

• Thanks to the special LTU technology developed as an alternative to AirMax AC:

  • Higher throughput

  • Lower latency

  • Flexible frequency usage

• It is designed for ISPs to provide internet to users over long distances.

⚙️ Hardware Specifications

• Frequency Range:5.150 – 5.875 GHz

• Channel Width:10 / 20 / 30 / 40 / 50 MHz (flexible configuration)

• Max. Capacity:600+ Mbps

• Max. Modulation:Up to 4096-QAM

• Anten:26 dBi built-in parabolic antenna

• Beam Angle:8° (H-plane) × 8° (V-plane) → long-range focused

• TX Power:Up to 22 dBm

🔌 Connection & Power

• Ethernet Port:1 × 10/100/1000 Mbps RJ45

• Besleme:

  • 24V Passive PoE

  • Maximum Power Consumption: ~8.5 W

🔒 Security & Management

• WPA2 AES wireless encryption

• VLAN support

• QoS (traffic management)

• Management options:

  • Web interface

  • UNMS (Ubiquiti Network Management System)

  • AirControl & LTU Config

📐 Physical Properties

• Boyut:512 × 512 × 360 mm

• Ağırlık:1.35 kg

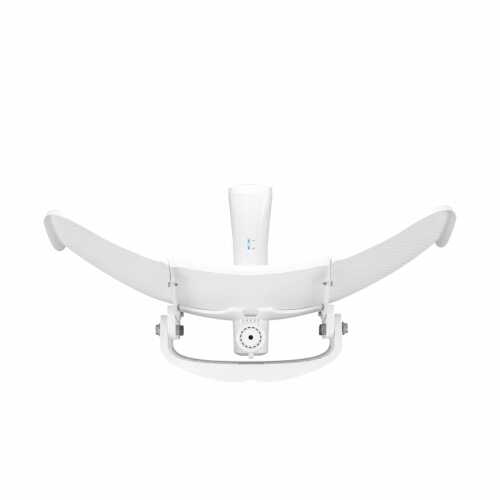

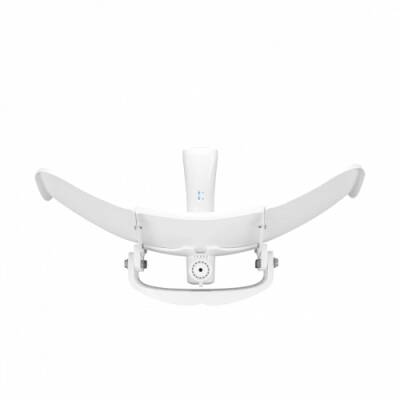

• Montaj:Kit included for pole mounting.

• Dayanıklılık:IP67 protection class (suitable for outdoor use)

• Operating Temperature:-40 °C ~ +55 °C

🚀 Usage Scenario

• ISPs for internet distribution over long distances (10+ km)customer premises equipment (CPE).

• Point-to-point (PtP) and point-to-multipoint (PtMP) connections.

• High-speed connection in rural areas.
