EDGE SWITCH 48 PORT 750W

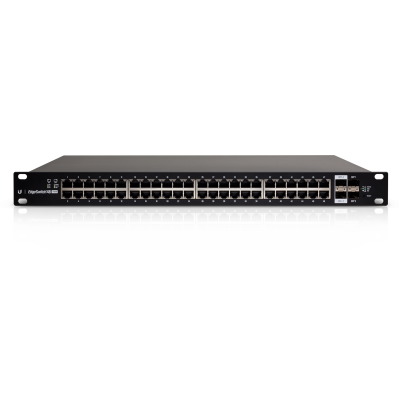

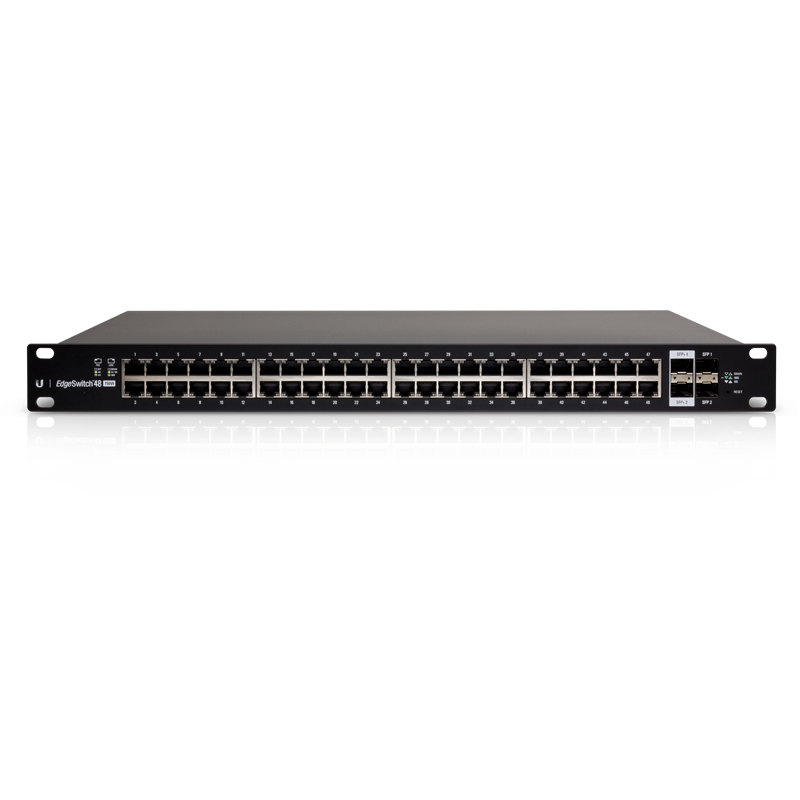

EdgeSwitch 48 750W (ES-48-750W)
Equipped with powerful PoE capabilities, a 48-port Layer 2/Layer 3 switch.

📦 Hardware Specifications:

• Total Ethernet Port:

  • 48 x Gigabit RJ45 port(10/100/1000 Mbps)

  • 2 x SFP port(1 Gbps fiber uplink)

  • 2 x SFP+ port(10 Gbps fiber uplink)

• İşlemci:Dual-Core 500 MHz

• RAM:512 MB

• Flash Storage:256 MB

⚡ Power and PoE Features:

• Total Power Capacity: 750 Watt

• PoE Standards:

  • 802.3af (PoE)

  • 802.3at (PoE+)

  • 24V Passive PoE(For Ubiquiti devices)

• Thanks to PoE+ support,It can directly power high-power devices (such as UniFi AC HD or PTZ cameras).

• Smart PoE management:Ability to manage the power given to each port through software.

🌐 Software and Management:

• Operating System:EdgeSwitch OS (Ubiquiti's proprietary Layer 2/3 switch operating system)

• Management Interface:

  • Web GUI (EdgeSwitch UI)

  • Telnet / SSH / CLI access

  • SNMP, VLAN, STP, RSTP, IGMP Snooping, Port mirroring, Jumbo Frame support

• Layer 3 Features:
  (Static routing, VLAN routing support is available)

🛠️ Physical Features:

• Montaj:Rack mount compatible (1U, 19")

• Boyutlar:485 x 285 x 43 mm

• Ağırlık:~4.8 kg

• Soğutma:Active cooled (with fan)

• Operating Temperature:-5°C to +40°C

📌 Usage Scenarios:

• Corporate network infrastructures

• IP camera systems (powered by PoE)

• High-density Access Point installations

• Large-scale VoIP systems

• Data center or backbone switch requirements
