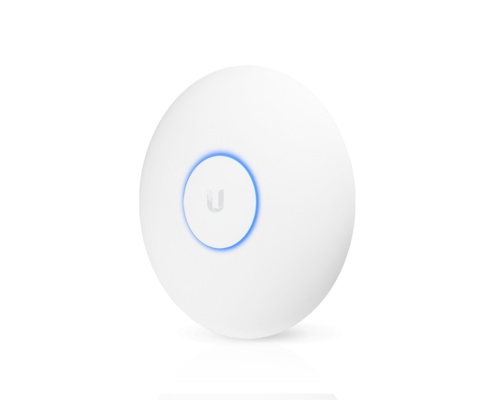

UAP-AC-LR SINGLE(+PoE)

📦 General Features

• Model: UAP-AC-LR

• Boyutlar: 175.7 x 175.7 x 43.2 mm

• Ağırlık: 240 g (315 g with mounting kits)

• Montaj: Kits for wall and ceiling installation are included.

• Operating Temperature: -10°C to 70°C

• Working Moisture: 5% to 95% (non-condensing)

• Sertifikalar: CE, FCC, IC​

📡 Wireless Features

• Wi-Fi Standards: 802.11 a/b/g/n/ac

• Frequency Bands: 2.4 GHz and 5 GHz (simultaneous dual-band)

• MIMO Configuration:

  • 2.4 GHz: 3x3 MIMO

  • 5 GHz: 2x2 MIMO

• Maximum Data Rate:

  • 2.4 GHz: 450 Mbps

  • 5 GHz: 867 Mbps

• Antenna Gain:

  • 2.4 GHz: 3 dBi

  • 5 GHz: 3 dBi

• Maximum Broadcast Power:

  • 2.4 GHz: 24 dBm

  • 5 GHz: 22 dBm

• BSSID: Up to 8 for each radio

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)​

🔌 Network and Power Features

• Ethernet Port: 1 x 10/100/1000 Mbps RJ-45

• Power Methods:

  • 802.3af/A PoE

  • 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Power Supply: 24V, 0.5A Gigabit PoE Adapteronly included in single packs)

• Maximum Power Consumption: 6.5W​A

📦 Package Contents (Single Package)

• 1 x UAP-AC-LR Access Point

• 1 x 24V, 0.5A Gigabit PoE Adapter

• Mounting Kits (for wall and ceiling mounting)

• Quick Start Guide​

🔧 Additional Features

• Yönetim: Centralized management with UniFi Controller Software

• VLAN Support: 802.1Q

• Advanced Traffic Management: Advanced QoS, guest access, bandwidth limitations​
