🏠 ZTE H298Q – GPON Modem / ONT / Router

The ZTE H298Q is a home gateway device designed for FTTH (Fiber to the Home) infrastructure. This device, which offers modem, router, and VoIP telephone services, provides a high-performance network experience for home users.

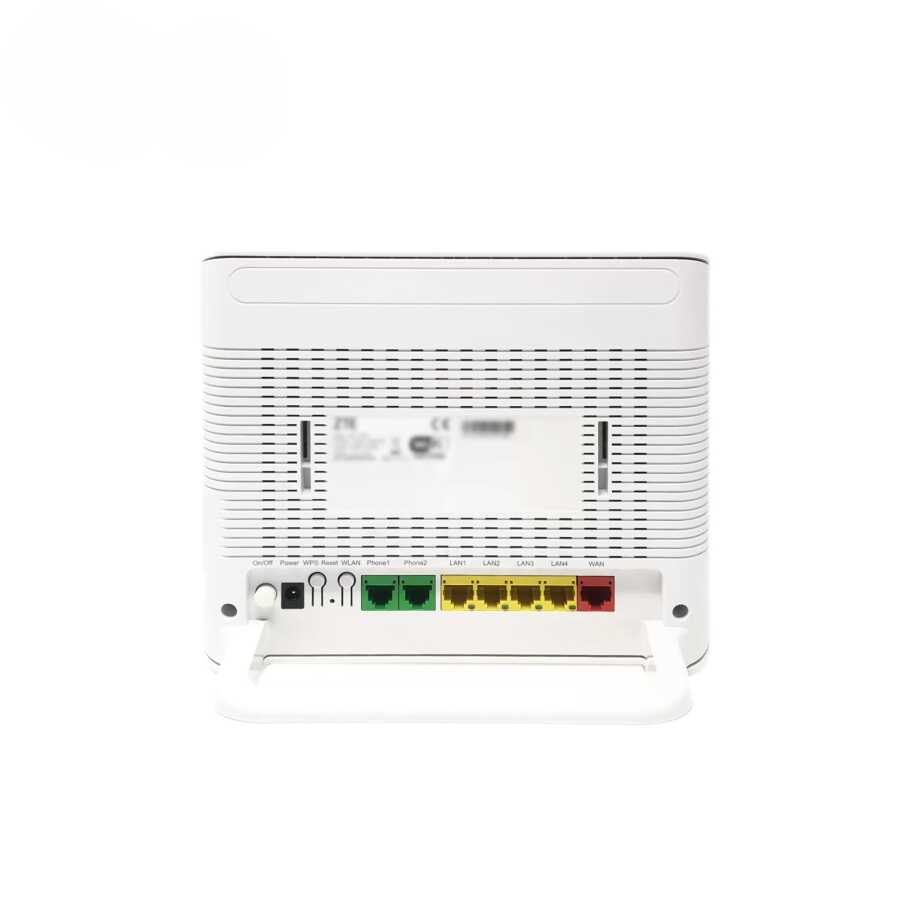

🔌 Connection Points & Ports

• WAN Port1 × Gigabit Ethernet (RJ-45)

• LAN Ports4 × Gigabit Ethernet (RJ-45)

• USB Port1 × USB 2.0 (For storage, printer, or 3G/4G modem connection)

• Phone Ports: 2 × FXS (RJ-11) – For analog telephone connection

📶 Wireless Connection (Wi-Fi)

• Wi-Fi Standard802.11ac (Wi-Fi 5) Dual-Band (2.4 GHz and 5 GHz)

• Wi-Fi SpeedTotal 2033 Mbps (2.4 GHz: 2x2 MIMO, 5 GHz: 2x2 MIMO)

⚙️ Management & Protocols

• Management ProtocolsTR-069, web-based GUI

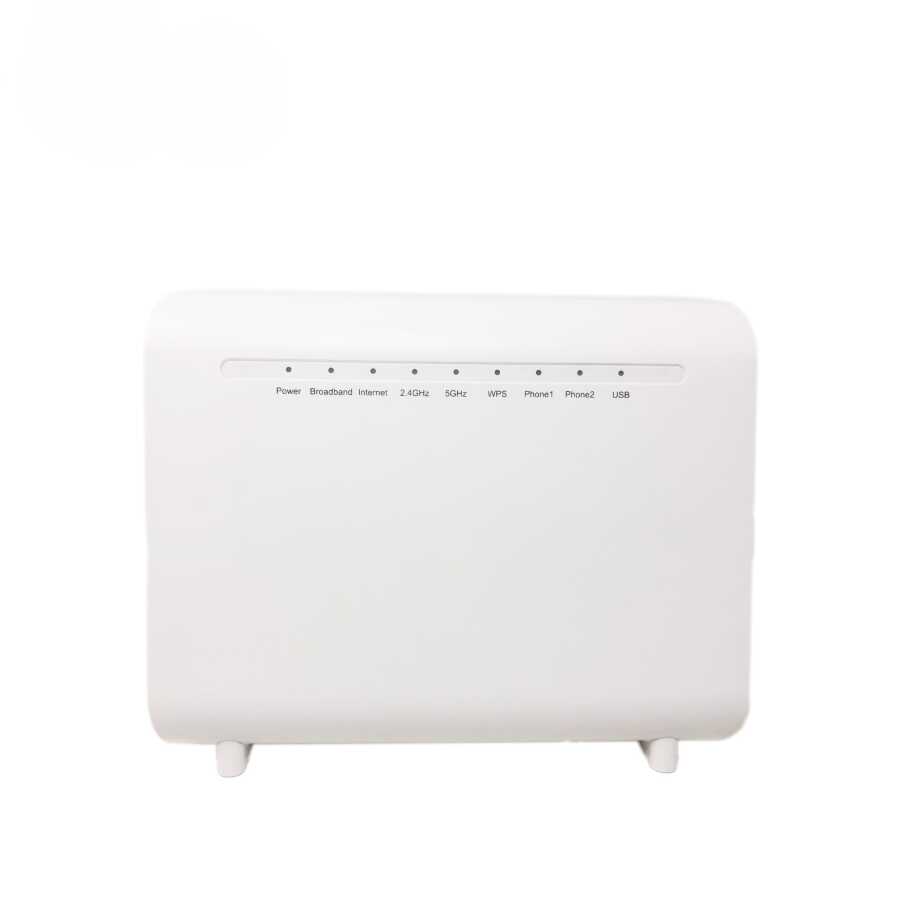

• LED Indicators:

  • PowerGreen – Device is on

  • BroadbandGreen – WAN connection active

  • InternetGreen – Internet connection active

  • 2.4GHz / 5GHzGreen – Wi-Fi active

  • WPSGreen – WPS process active

  • Phone1 / Phone2Green – VoIP phone service is active.

  • USBGreen – USB device connected

🔧 Additional Features

• WPS ButtonFor fast connection with wireless devices

• Reset ButtonTo reset to factory settings

• WLAN ButtonTurn on/off the wireless network connection

• Power SupplyInput AC 100-240V, output DC 12V 2A adapter

• Boyutlar221 mm x 186 mm x 89 mm

• Operating TemperatureBetween 0°C and 40°C

• Operating Humidity RatioBetween 5% and 95% (non-condensing)
