LDF 5

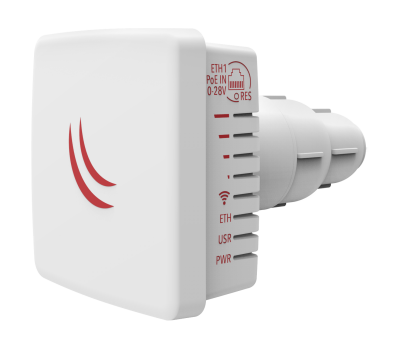

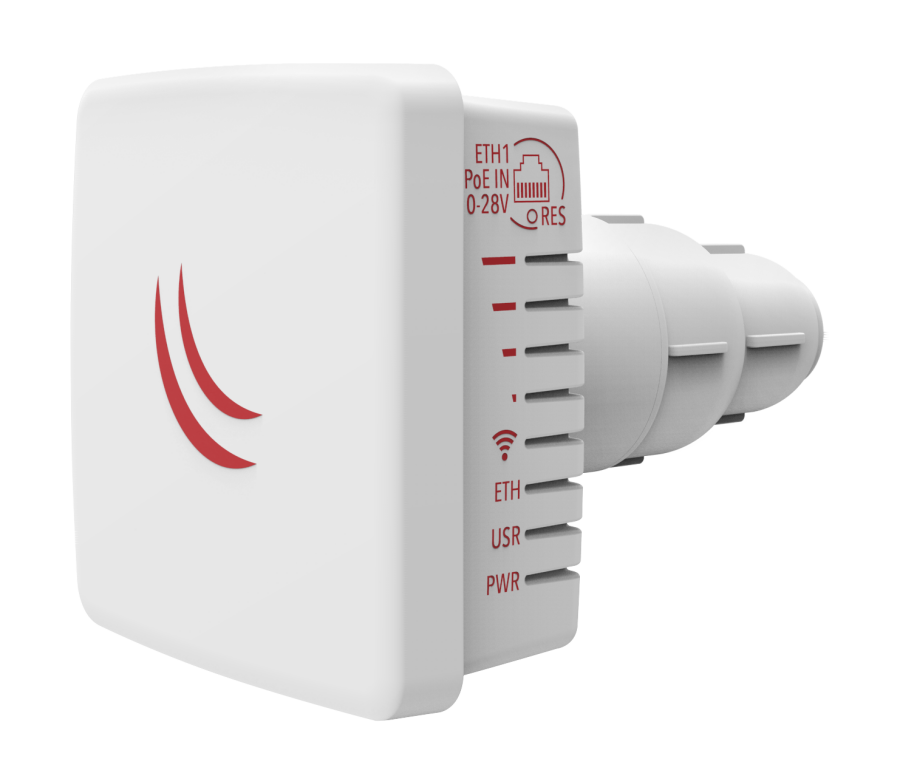

MikroTik LDF 5(Lite Dish Feed), model codeRBLDF-5nDIt is a compact 5 GHz wireless system designed for outdoor use, to work with parabolic or offset mounted dish antennas. This device provides an economical and effective solution for establishing long-distance wireless connections by utilizing the reflective property of the satellite dish.

🔧 Technical Specifications

• Model Code: RBLDF-5nD

• İşlemci: AR9344, 600 MHz, single-core

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS, License Level 3

• Boyutlar: 84 x 84 x 115 mm

• Operating Temperature: -40°C to +70°C

• MTBF: Approximately 100,000 hours @ 25°C

• Soğutma: Pasif

📡 Wireless Features

• Frequency Range: 5150 MHz – 5875 MHz (May vary depending on country regulations)

• Wireless Standards: 802.11a/n (Wi-Fi 4)

• Maximum Data Rate: 300 Mbit/s

• Antenna Gain: 9 dBi (internal)

• Antenna Beam Width: 60°

• Chain Count: 2 (Dual Chain)

⚡ Power and Connection

• Ethernet Port: 1 x 10/100 Mbps Fast Ethernet

• Power Input: Passive PoE (10–30 V)

• Maximum Power Consumption:6 W

🛠️ Assembly and Use

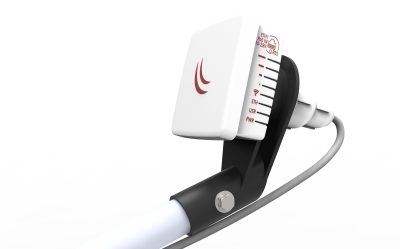

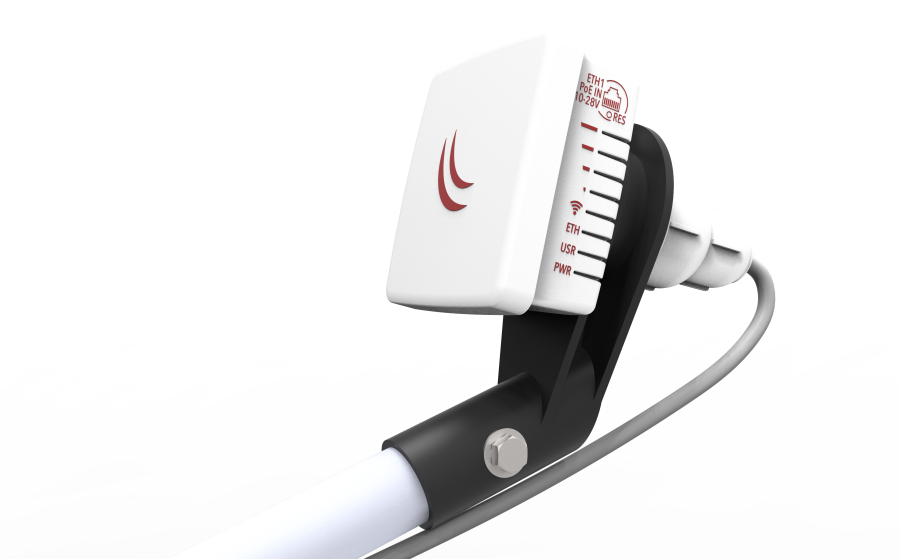

• Mounting Type: Compatible with 40 mm diameter offset dish antenna sockets.

• IP Protection Class: IP54

• Antenna Compatibility: When used with dish antennas up to 100 cm, the total antenna gain can reach up to 33 dBi.

• Box Contents: 24V 0.38A power adapter and PoE injector
