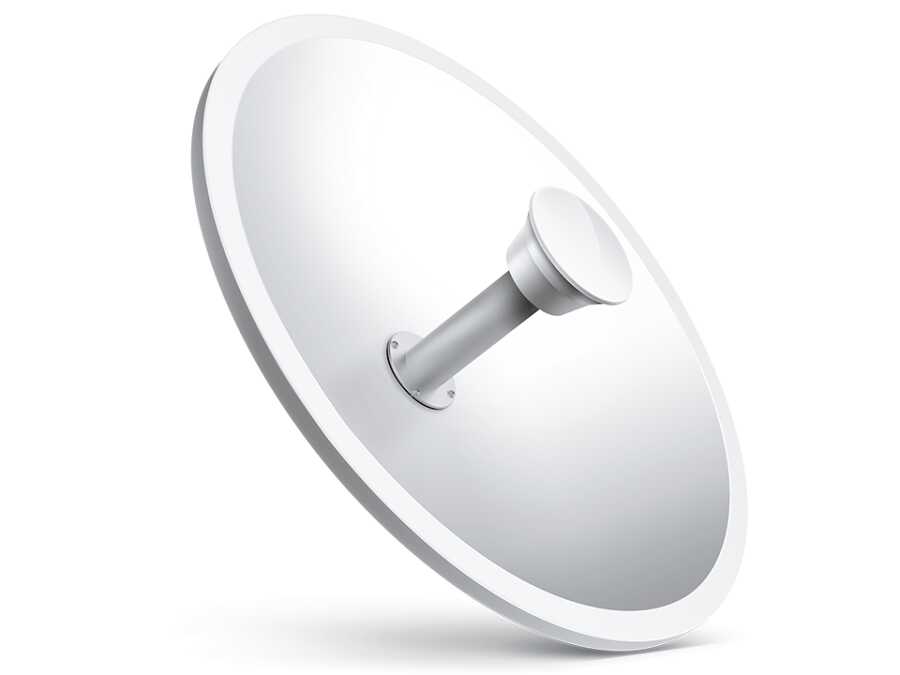

Designed as a high-gain directional (dish/parabolic) antenna.
Increase data capacity with 2×2 MIMO support.
Suitable for long-distance bidirectional (Point-to-Point) bridging (backhaul) connections.
Optimized for integrated use with TP-LINK Pharos systems.
| Frequency Range | 5.0 – 6.0 GHz |
| Empedans | 50 Ω |
| Kazanç | 30 dBi (excluding cable loss) |
| VSWR (Max.) | 1.8 |
| Y-Axis (HPOL) 3 dB Beam Width | 6° |
| Vertical (VPOL) 3 dB Beam Width | 6° |
| Polarizasyon | Horizontal & Vertical (dual polarization) |
| Front/Back Ratio | ≥ 34 dB |
| Connection Interface | RP-SMA (Compatible with Male / Female) |

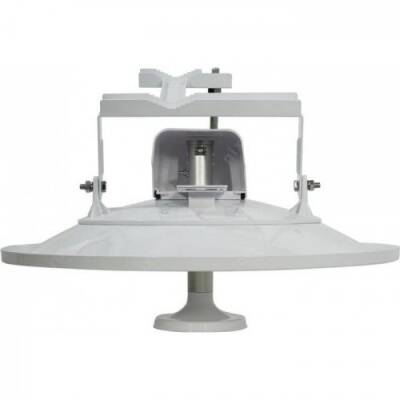

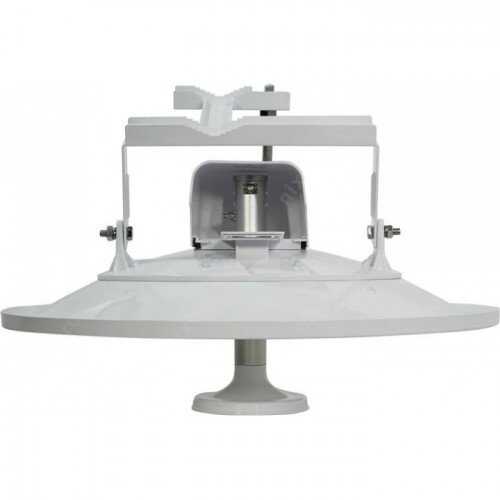

| Mounting Type | Direct mount (pole mount) |
| Wind Resistance (Survival) | 241 km/h |
| Product Dimensions | 650 × 650 × 360 mm |
Easy Installation:It enables tool-free installation thanks to the internal mounting mechanism.
Suitable for Challenging Environments:It is designed for outdoor use in a weather-resistant manner.
MIMO Support:It provides capacity increase with a 2×2 structure and offers advantages in network connections with high throughput.
Compatible Systems:It is designed to work with Pharos Base Station devices.
