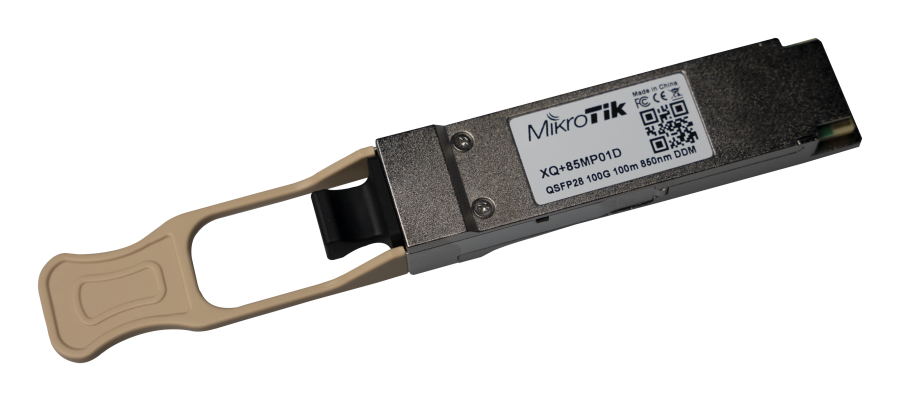

MikroTik XQ+85MP01DIt is an optical SFP module with QSFP28 form factor and supports the 100GBASE-SR4 standard. This module has four independent full-duplex channels operating at a wavelength of 850 nm, offering a speed of 25 Gbps for each channel and providing total data transmission of up to 100 Gbps. It is used with a 12-fiber optical cable with MTP/MPO-12 (Type-B) connectors and enables high-speed data transmission over distances of up to 100 meters.
Product Code: XQ+85MP01D
Format: QSFP28
Konektör: 1x12 MTP/MPO
Data Rate: 40G / 100G
Mesafe: 100 m (with OM3 Multimode Fiber)
Mod: Multimode
Wavelength: 850 nm
Maximum Power Consumption: 3.5 W
Operating Temperature: 0°C to +70°C
Wavelength: 850 nm
Connection Type: MTP/MPO-12 (Type-B)
High-Speed Data Transmission: It provides data transmission at 100 Gbps speeds in data centers and large network infrastructures.
Compatibility with MikroTik Products: MikroTik CCR2216 is compatible with devices such as CRS504 and CRS518.
Long Distance Connections: It establishes high-speed connections at distances up to 100 meters.
Digital Diagnostic Functions: It offers digital diagnostic features such as optical power monitoring.
1 x XQ+85MP01D QSFP28 Optical Module
