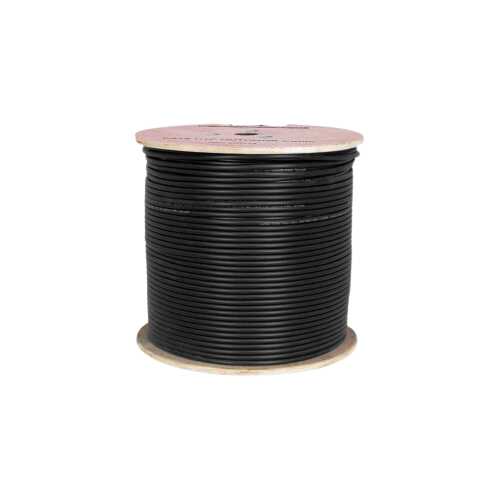

WISS PRO CAT6 NETWORK CABLE (500 METER)

📡 Basic Features

• Kategori:Cat6 (Category 6)

• Uzunluk:500 meter reel

• Cable Type:U/UTP (No shielding, unshielded twisted pair cable)

• Conductor Material:Typically pure copper (or copper-clad aluminum – CCA may be used, depending on the model type).

• Frequency Support:250 MHz

• Maximum Data Rate:Gigabit speeds (1 Gbps)

⚡ Electrical Performance

• Characteristic Impedance:100 Ω ± tolerance

• Conductor Resistance:Approximately 94 Ω/km (20 °C reference temperature)

• Insulation / Dielectric Capacity:~ 56 pF/m (typical)

• Velocity of Propagation:%67 – %69 (ratio relative to the speed of light)

• Resistance Imbalance:≤ 2%

🛠 Mechanical & Environmental Features

• Outer Sheath / Jacket:PVC or UV resistant PE for outdoor environments (depending on model variation)

• Bending Radius (Minimum):~ 8 × cable outer diameter

• Operating Temperature:Typically between -20 °C and +60 °C

• Test Voltage:Generally 1,200 V DC (minute)

✅ Application Notes & Advantages

• Wide Usage:Suitable for homes, offices, server rooms, and network infrastructures.

• Gigabit Ethernet Compatibility:It supports data transmission at 1 Gbps thanks to the Cat6 standard (maximum distance ~100 m).

• Cost / Performance Balance:It offers good performance compared to very high-cost equipment.

• Adaptation to External Environment:If there is an option for a UV-protected outer cable, it is more resistant to outdoor conditions.
