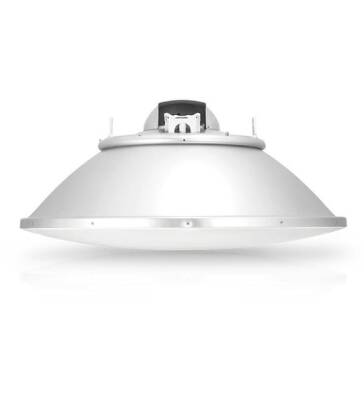

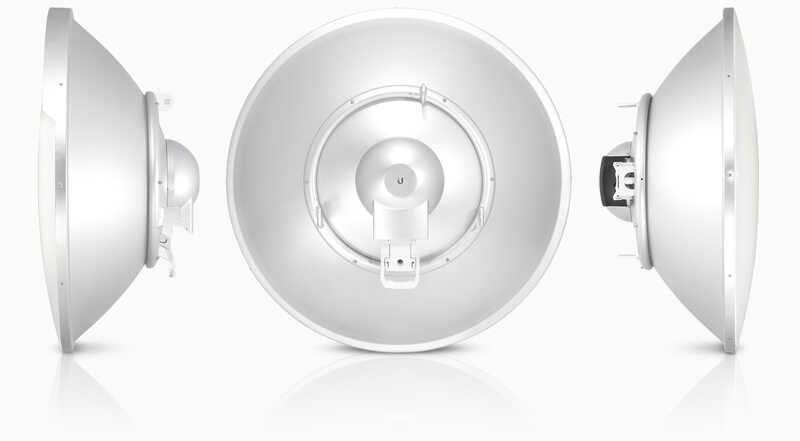

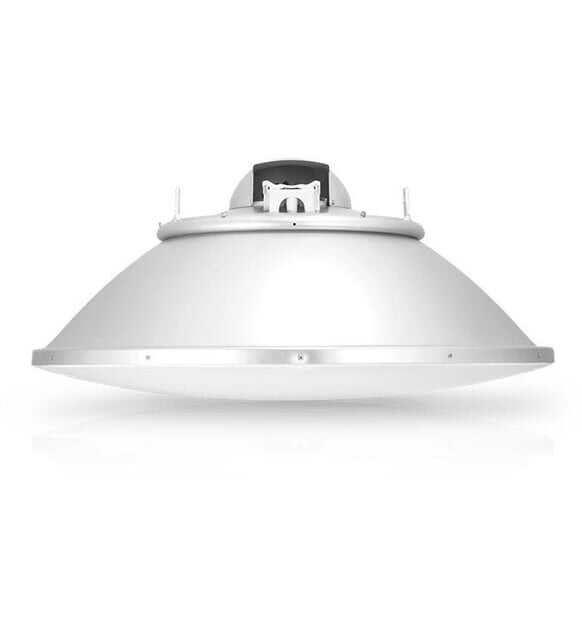

ROCKETDISH RD-5G31-AC

📡 General Features

• Model: RD-5G31-AC

• Frequency Range: 5.1 – 5.8 GHz

• Gain: 31 dBi

• Maximum VSWR: 1.4:1

• Polarizasyon: Dual Linear

• Cross Polarization Isolation: ≥ 35 dB

• ETSI Standard: EN 302 326 DN2

• Uyumluluk: Rocket5ac and RocketM5 series​

🛠️ Physical Properties

• Boyutlar: 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 inches)

• Weight (Including Assembly): 7.6 kg (16.76 lb)

• Montaj: Universal pole mounting, RocketM bracket, and weather-resistant RF connectors are included.

• Wind Load: 1,028 N @ 200 km/h (231 lbf @ 125 mph)

• Wind Resistance: 200 km/h (125 mph)​

🌐 Areas of Use

RocketDish RD-5G31-AC is ideal for long-range point-to-point (PtP) wireless connections due to its high gain and narrow beam width. Especially in environments with heavy interference, it provides strong signal isolation and high data transmission capacity.​

📦 Box Contents

• 1 x RocketDish RD-5G31-AC Antenna

• 1 x Protective Radome Cover

• 1 x Metal Protective Umbrella (Shroud)

• 1 x Mounting Kit (For pole mounting)

• 1 x Weather-Resistant RF Connectors​
