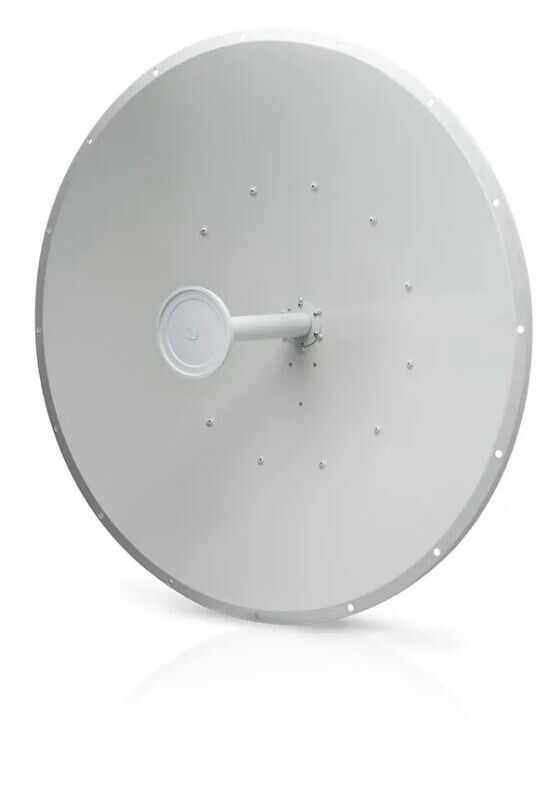

Ubiquiti RD‑5G34
This antenna is particularly for long-distancePoint-to-Point (PtP)It is a high-gain dish-type (parabolic) antenna model used for connections and wireless backhaul applications.
| Özellik | Value / Description |
|---|---|
| 📶 Frequency Range | 4.9 – 5.8 GHz (5 GHz band) |
| 🏆 Winnings | 34 dBi (manufacturer's declaration) |
| 🎯 Beamwidth (3 dB) | Horizontal (H) ≈ 3° / Vertical (V) ≈ 3° |
| 🔄 Polarization | Dual linear dual polarization support |
| 🔙 Front-to-Back Ratio | ≥ 42 dB |
| 🔀 VSWR (Max) | ≤ 1.4 : 1 |
| ⚖️ Body / Size | Diameter ~ 1050 mm, depth ~ 421 mm |
| 🧮 Weight | ~ 13.5 kg |
| 🌪 Wind Resistance | Survival capacity ~ 200 km/h |
| 🧱 Assembly | Compatible with pole mount installation using a 50 mm diameter pole support, includes Rocket mounting bracket. |
🔝 High gain and focused beamThanks to it, signal loss is low over long distances, and the connection is stable.
📡 Dual polarizationIt reduces signal interference and improves connection quality.
🛠 Integration compatible with Rocket devices— Direct application with the Rocket series air devices
🏗 Suitable for outdoor conditions.- provides performance even in challenging weather conditions
🌐 ISP backhaul / PtP lines / campus connectionsIdeal for scenarios like these
