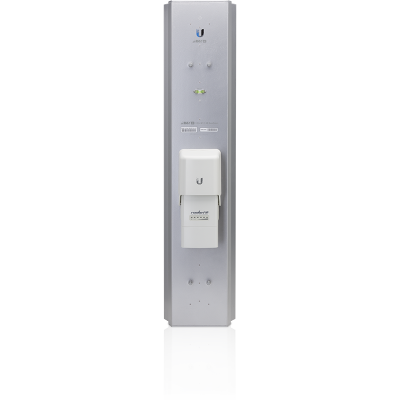

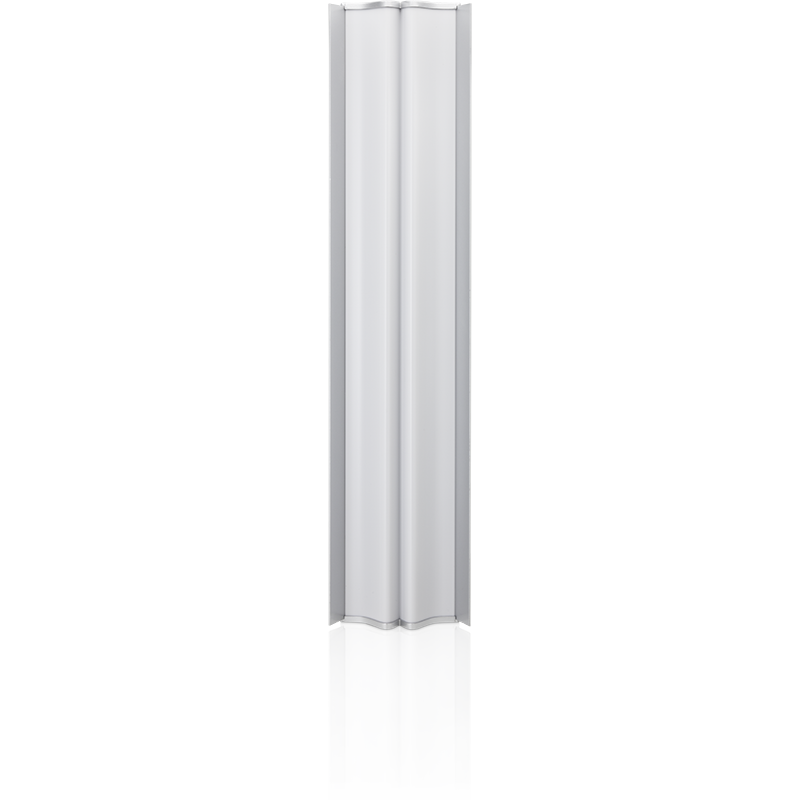

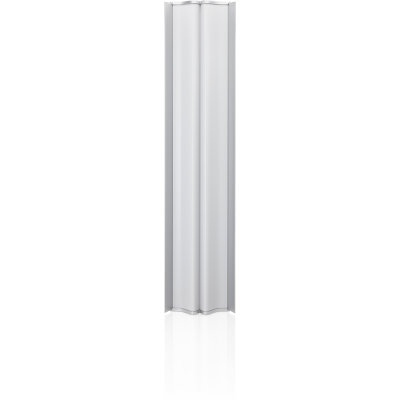

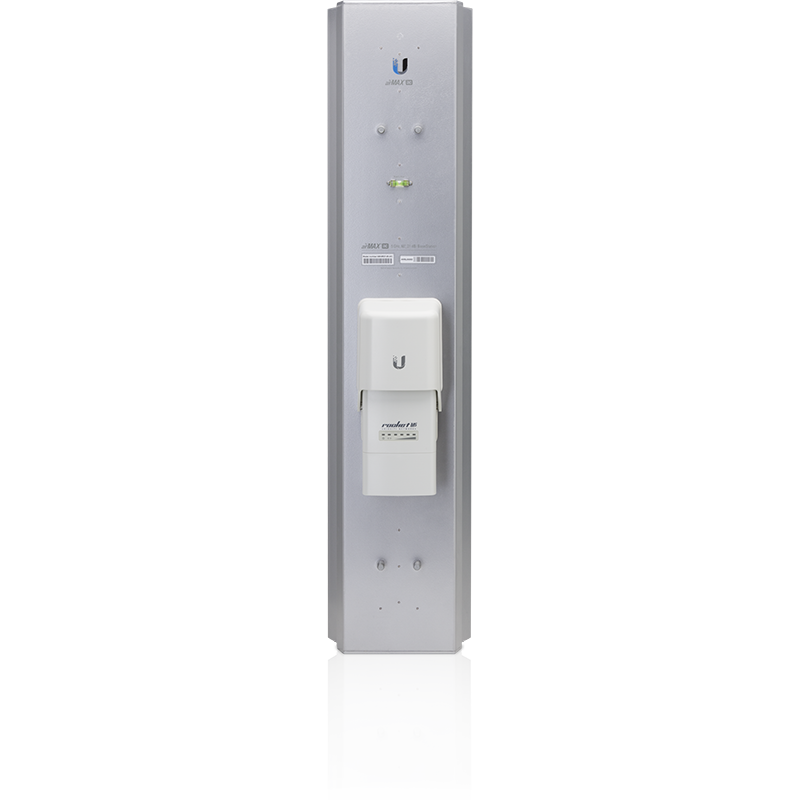

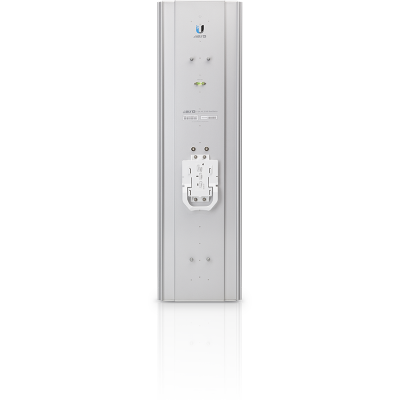

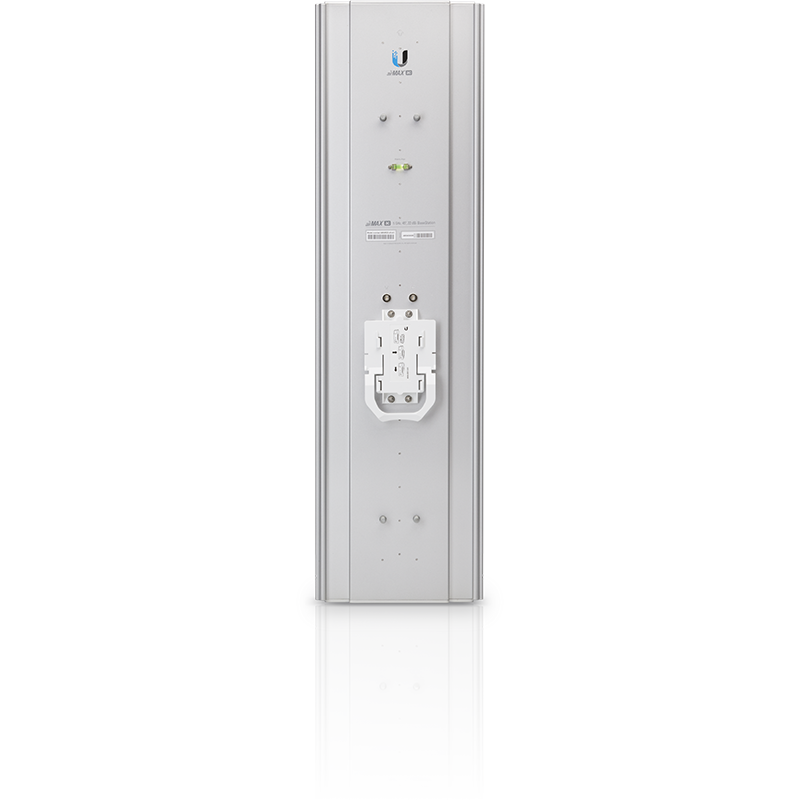

Ubiquiti AM-5AC21-60, a high-performance airMAX AC technology, operating at 5 GHz frequency, with 21 dBi gain and 60° anglesectoral directional antennaIt is fully compatible with the Rocket 5AC BaseStation. It offers wide coverage with high data transfer and low latency.
🔌 Connection & Compliance
RF Connector: 2 × RP-SMA Female
Compatible Devices: Rocket 5AC Lite, Rocket Prism 5AC
Assembly: Quick and easy installation with integrated Rocket mount.
📡 Wireless Features
Frequency Range: 5.10 – 5.85 GHz
Antenna Gain: 21 dBi
Horizontal Spread Angle: 60°
Vertical Beamwidth: 6°
Polarization: Dual-linear
Technology: airMAX AC TDMA protocol for high performance
⚙️ Physical Properties
Dimensions: 750 × 140 × 79 mm
Weight: 2.4 kg
Material: UV protected, weather-resistant outer casing
Wind Resistance: Durable up to 200 km/h
🌦️ Durability & Environmental Conditions
Operating Temperature: -40°C ~ +80°C
Humidity Resistance: 5% – 95% (non-condensing)
Optimized for outdoor installations.
🛠️ Areas of Use
Point-to-multipoint (PtMP) connections
WISP base stations
High-speed distribution in networks with heavy traffic
Ideal solution for wide areas such as campuses, sites, and factories.
📦 Package Contents
AM-5AC21-60 Sectoral Antenna
Assembly apparatuses (pole kit)
RF connection cables
User manual
