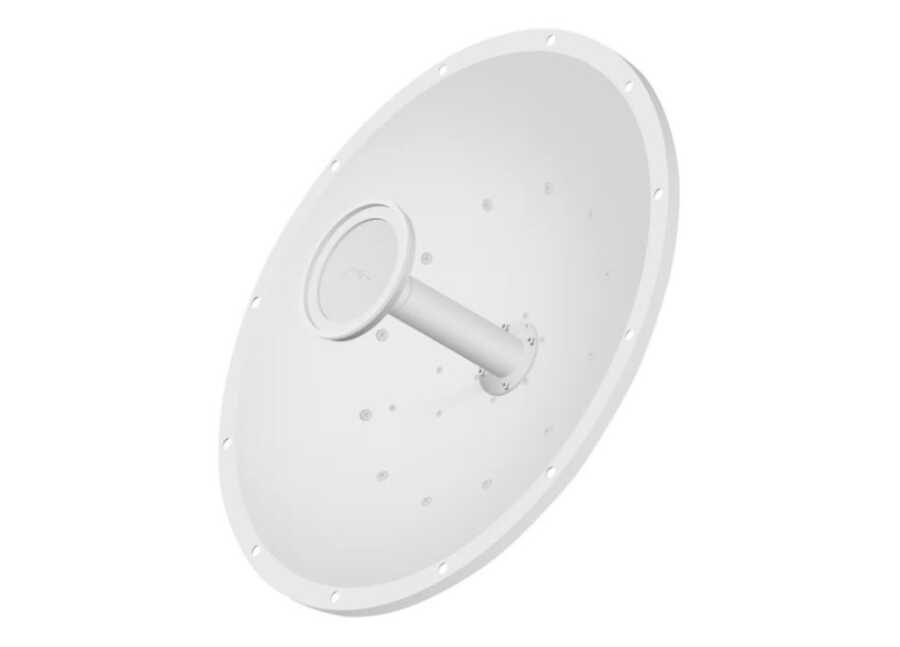

RD-5G30, Ubiquiti RocketCompatible with series products,high gain 5 GHz directional parabolic antennais a model. This antenna is for long-distancePoint-to-Point (P2P)It is designed for wireless connections and provides strong signal routing.
| Frequency Range | 5.1 – 5.9 GHz |
| Antenna Gain (Gain) | 30 dBi |
| Polarizasyon | Dual-Linear (Horizontal + Vertical) |
| Beamwidth (3dB) | 5° |
| Front-to-Back Ratio | > 35 dB |
| VSWR | < 1.4:1 avg. |
| Maximum VSWR | < 1.8:1 |
Connector Type2 x RP-SMA
Compatible Devices:
Rocket M5
Rocket Prism 5AC
Rocket Prism 5AC Gen2
| Antenna Diameter | 650 mm (25.6 inches) |
| Derinlik | 386 mm |
| Ağırlık | 7.4 kg (including bracket and radome) |

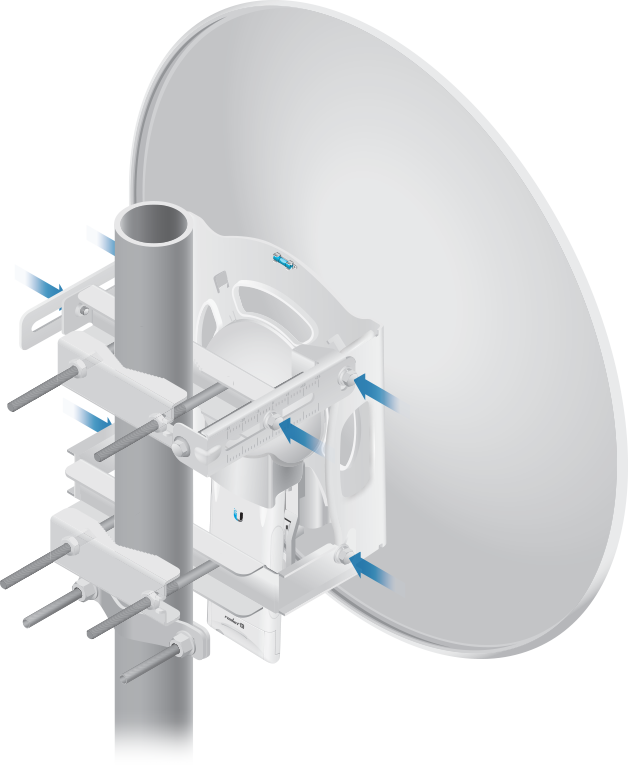

| Montaj | Direct mounting (pole diameter 30–75 mm) |
| Wind Resistance | 200 km/h (125 mph) |
| Operating Temperature | -40°C to +80°C |
Radom CoverUV resistant plastic
MalzemeWeather-resistant aluminum and steel
IP RatingIP67 (indirectly; fully compatible with outdoor environments)
RD-5G30 Antenna (parabolic)
Assembly apparatus
RF cables
Radom cap
Installation guide
Long distanceP2P (Point-to-Point) köprüleme
WISP (Wireless Internet Service Provider) uygulamaları
Mountain, plain, rural areas high-performance wireless bridging
