NS-5ACL

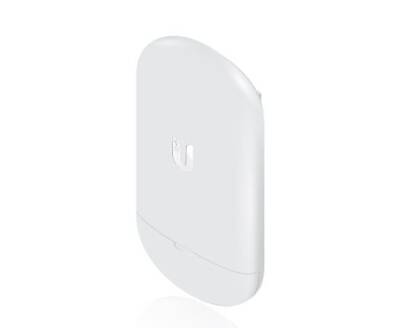

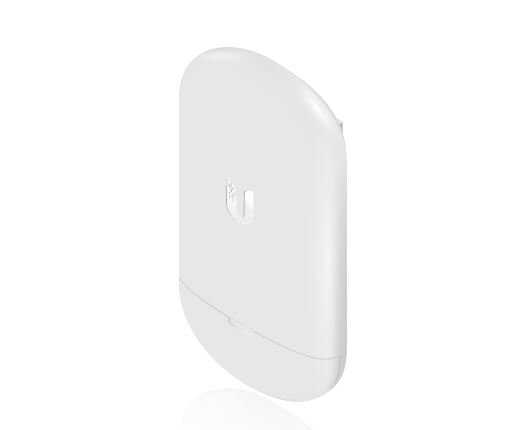

📡 NS-5ACL – NanoStation 5AC Loco, 5 GHz airMAX AC CPE Device

Ubiquiti NS-5ACL, compact and powerful aOutdoor CPE operating in the 5 GHz frequency bandIt is a device. It offers high speed and low latency with airMAX AC technology. It is an economical solution ideal for short and medium-range wireless connections.

🔌 Connections & Ports

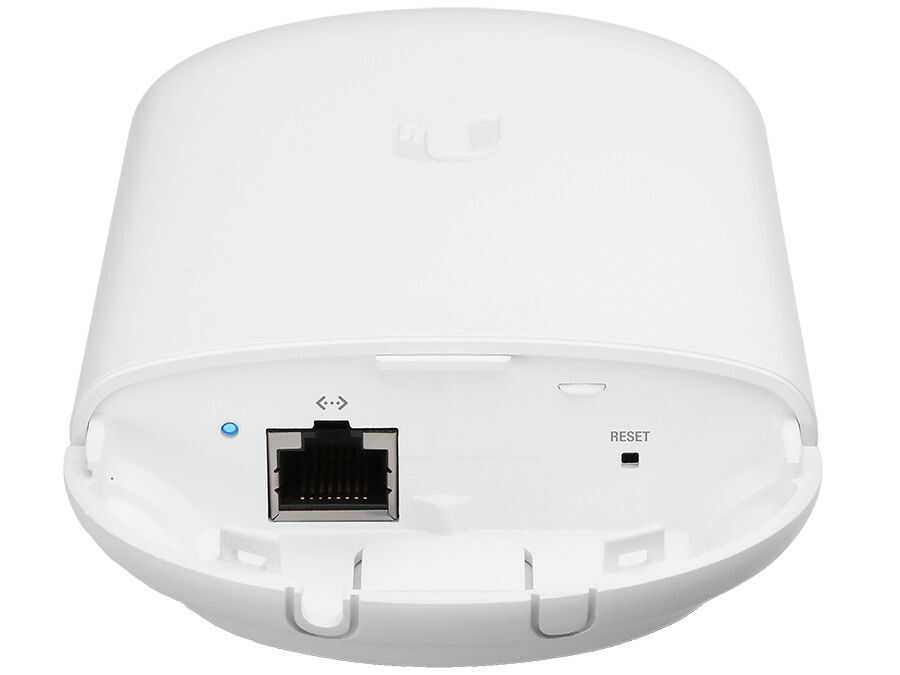

• 1 × 10/100 Mbps Ethernet port

• Passive PoE (24V) supported

• Plug and play easy installation

📡 Wireless Features

• Frequency Range: 5150 – 5875 MHz

• Antenna Gain: 13 dBi integrated directional antenna

• Technology: airMAX AC, TDMA protocol

• MIMO: 2x2 MIMO support

• Channel Width: 20 / 40 MHz

• Polarization: Dual-linear

⚙️ Hardware Specifications

• Processor: Atheros MIPS 74Kc, 560 MHz

• RAM: 64 MB

• Flash Memory: 8 MB

• Maximum Power Consumption: 6.5W

• LED Indicators: Power, LAN, Signal

🌦️ Durability & Environmental Conditions

• Weather-resistant, UV-protected outdoor housing.

• Operating Temperature: -40°C ~ +70°C

• IP54 water and dust protection

🛠️ Areas of Use

• Short and medium-range point-to-point (PtP) connections

• Home and office wireless network extensions

• Security cameras and IoT device connections

• Suitable for WISP projects

📦 Package Contents

• NanoStation 5AC Loco (NS-5ACL) device

• Assembly apparatuses

• 24V PoE adapter

• Power cable

• User manual
