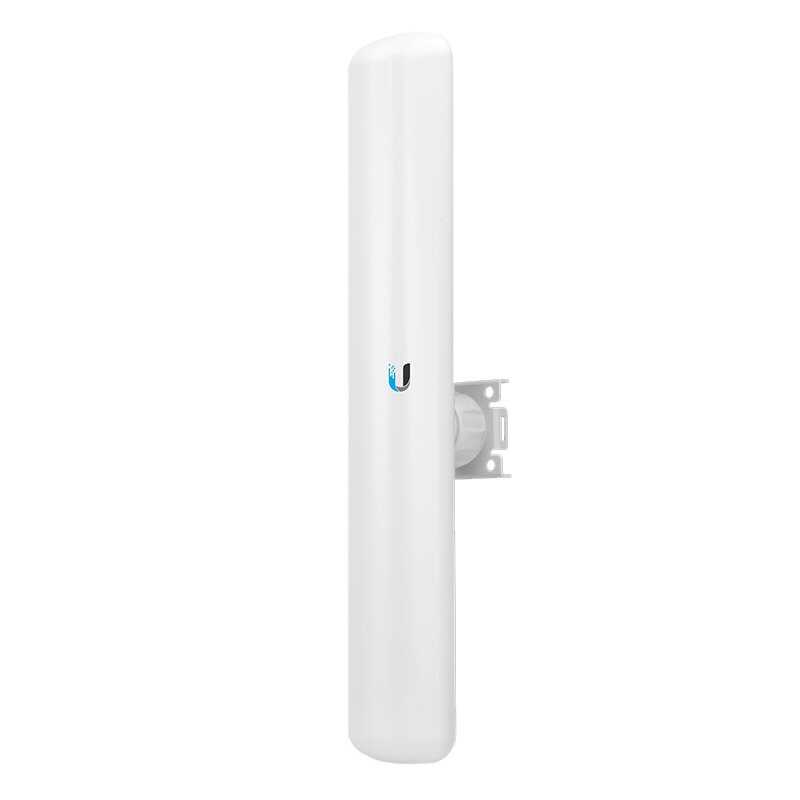

LAP-120

​The Ubiquiti LAP-120 is a high-performance access point designed for outdoor use, part of the LiteAP AC series, and operates in the 5 GHz band. It is especially suitable for wireless internet service providers (WISP) and long-distance connections.​

📡 Technical Specifications

• Wireless Standard: 802.11ac (Wi-Fi 5)

• Frequency Range: 5150 – 5875 MHz (Globally unlicensed 5 GHz band)

• Antenna Gain: 16 dBi, 120° internal sector antenna

• Maximum Output Power: 25 dBm

• Maximum Data Rate: 450+ Mbps real TCP/IP throughput

• Channel Width:

  • PtP Mode: 10/20/30/40/50/60/80 MHz

  • PtMP Mode: 10/20/30/40 MHz

• Network Interface: 1 piece 10/100/1000 Mbps Gigabit Ethernet port

• Power Supply: 24V, 0.5A Gigabit PoE adapter (included in the package)

• Power Consumption: Maximum 8W

• İşlemci: 533 MHz

• Bellek: 64 MB RAM

• Operating Temperature: Between -40°C and +70°C

• Moisture Resistance: 5% – 95% relative humidity (non-condensing)

• Wind Resistance: Resistant to wind speeds up to 200 km/h.

• ESD/EMP Protection: ±24kV air/contact protection

🔧 Software and Management

• Operating System: airOS® v8

• Administrative Tools:

  • airOS: Web-based user interface

  • UNMS (Ubiquiti Network Management System): Application support for mobile devices (U-Installer may be required for initial setup)

• Operating Modes:

  • Access Point (AP)

  • Point-to-MultiPoint (PtMP)

  • Point-to-Point (PtP)

• Güvenlik: WPA2 encryption support

• Uyumluluk: Compatible operation (mixed mode) with airMAX AC and airMAX M series devices

🧰 Physical Features and Installation

• Boyutlar: 452.3 x 78.7 x 54.4 mm

• Ağırlık: 420 g

• Montaj: Direct mounting can be done with the ball-joint mounting apparatus included in the box.

• Ease of Installation: Tool-free assembly; can be set up with just a key.

• Package Contents:

  • LiteAP LAP-120 device

  • Ball Joint Mounting Tool

  • Metal Clamp

  • 24V, 0.5A Gigabit PoE adapter

  • Power cable

  • Quick Start Guide ​

🎯 Areas of Use

LAP-120 is especially ideal for the following scenarios:​

• Wireless ISP (WISP) Applications: To provide long-distance, high-speed internet access

• Wide Area Coverage: Wireless network installations in large areas such as farms, campuses, or large open spaces.

• Security Camera Systems: To provide network connectivity for IP cameras at remote locations

• Rural and Remote Areas: To provide connectivity in areas with limited internet infrastructure​
