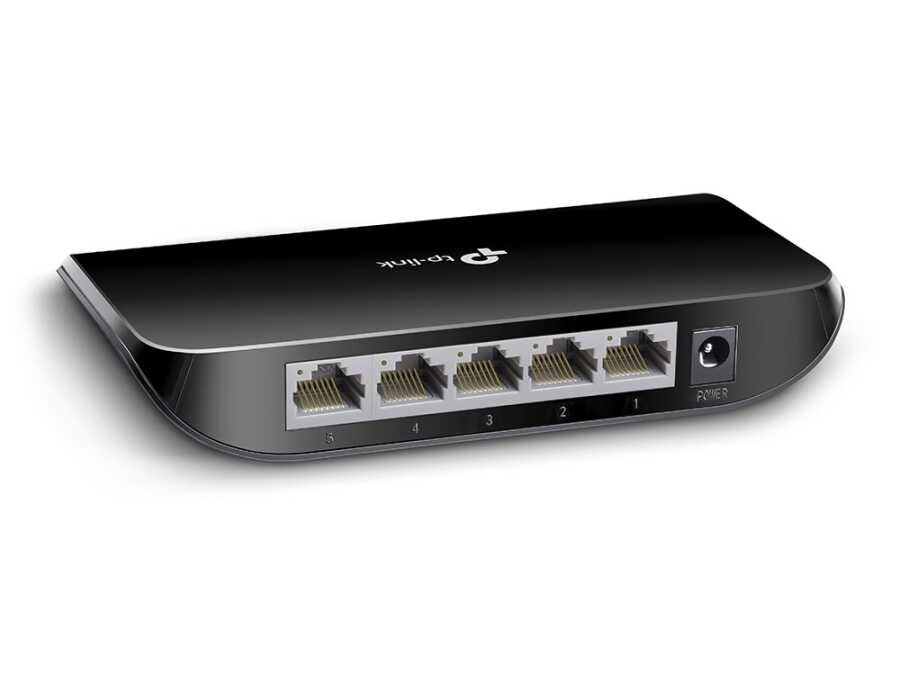

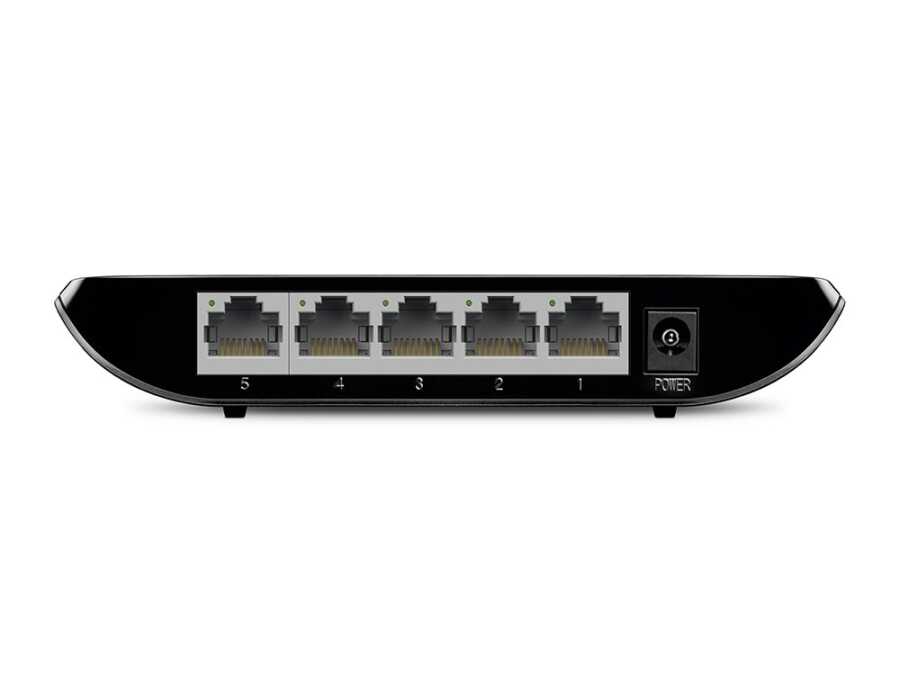

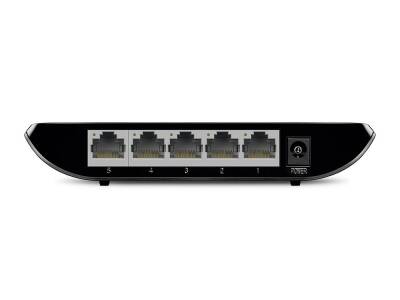

5 pieces10/100/1000 Mbps RJ45port (Auto-Negotiation / Auto MDI/MDIX)
Fanless design (no fan)

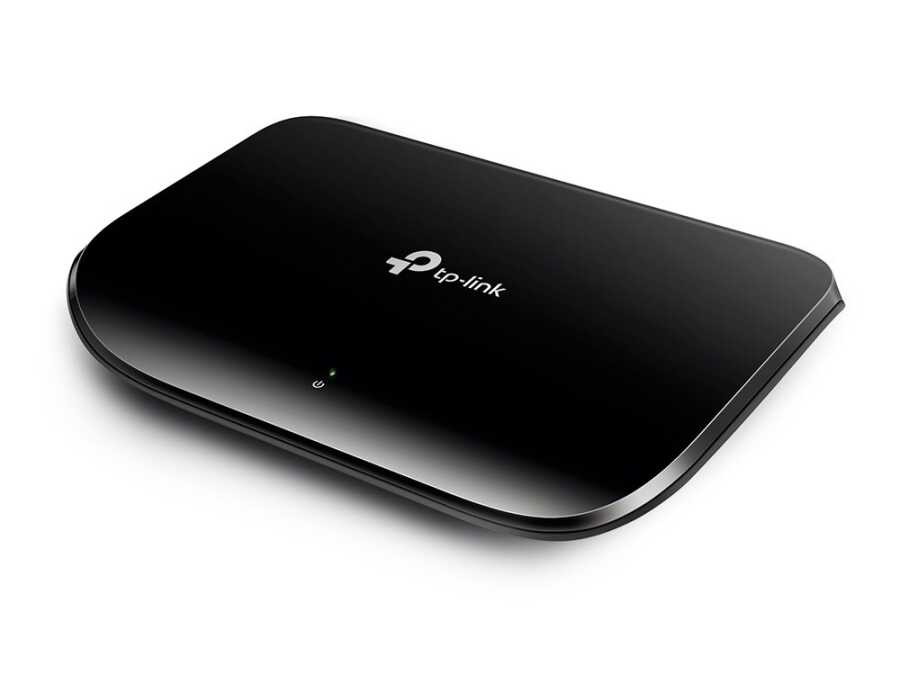

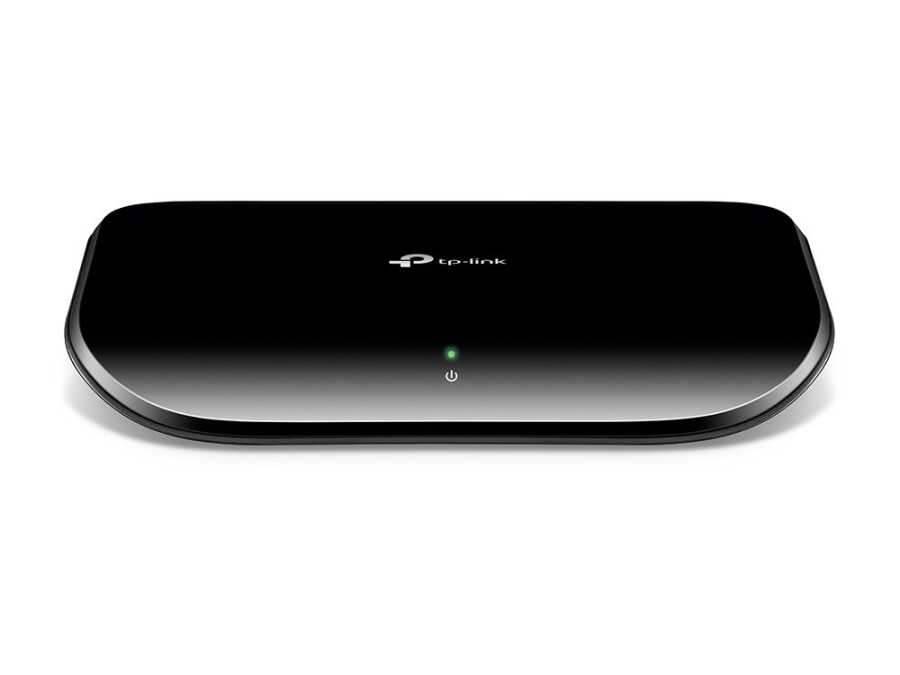

Plastic case; can be mounted on the desktop or wall.
Plug and play — no configuration required.
It provides energy savings with "Green Ethernet" technology (automatically adjusts power consumption based on link status and cable length).
| Transfer Method | Store-and-Forward |
| 802.3x Flow Control (Full Duplex) / Back Pressure (Half Duplex) | Evet |
| Jumbo Frame Support | 15 KB (≈ 15,000 bytes) |
| MAC Address Table | 8K Entry (≈ 8000 addresses) |
| Switch Capacity / Bandwidth | ~ 10 Gbps background capacity |
| Message Rate Per Port | 10BASE-T: 14,880 pps 100BASE-TX: 148,800 pps 1000BASE-T: 1,488,000 pps |
| External Power Adapter | 9V DC / 0.6A |
| Maximum Power Consumption | ~ 2.4 W |
| Dimensions (W × D × H) | 140 × 88 × 23 mm (≈ 5.5″ × 3.5″ × 0.9″) |
| Operating Temperature | 0 °C ~ 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Humidity Ratio | Operation: 10% to 90% non-condensing Storage: 5% to 90% non-condensing |
| Certificates / Compliance | FCC, RoHS, CE |
