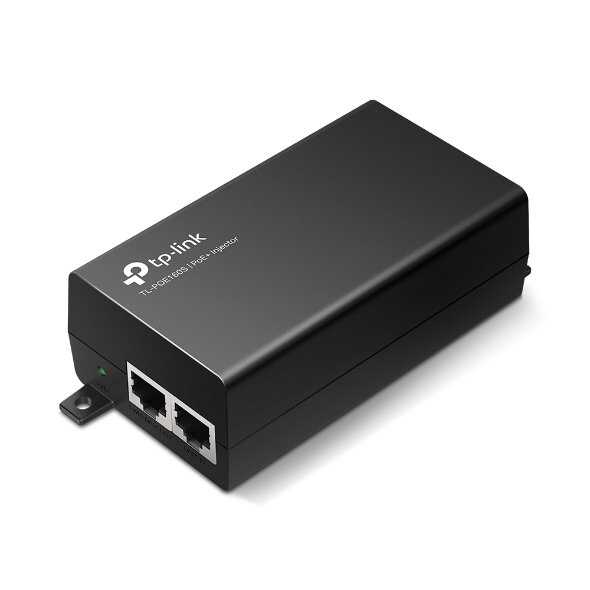

TL-POE160SIt is a PoE+ (Power over Ethernet) injector compliant with IEEE 802.3af/at standards. This device provides both data and power over a single Ethernet cable, offering a practical and economical solution for the installation of PoE-supported devices.
IEEE Compliance: 802.3af/at

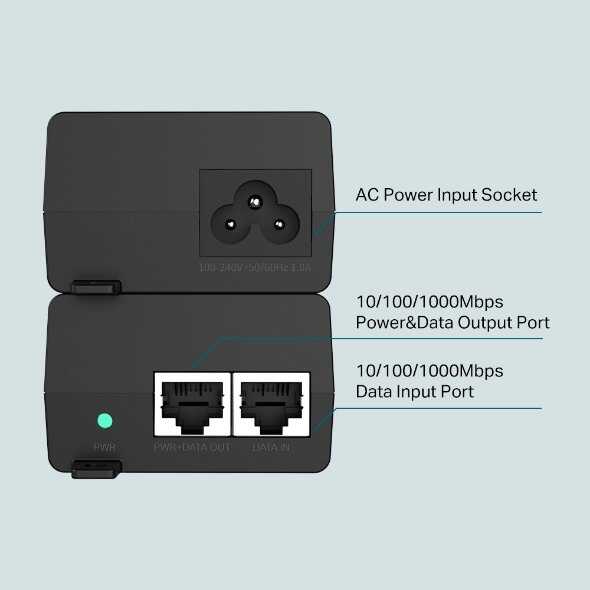

Portlar:1 × 10/100/1000 Mbps RJ45 data input, 1 × 10/100/1000 Mbps RJ45 data and power output
Power Output:30W (maximum)
Power Input:100–240V AC, 50/60 Hz
Operating Temperature:Between 0°C and 40°C
Storage Temperature:-40°C to 70°C
Operating Humidity Ratio:Between 10% and 90% (without condensation)
Storage Humidity Rate:Between 5% and 90% (non-condensing)
Boyutlar:125 mm × 60 mm × 35 mm
Ağırlık:0.2 kg
Gigabit Ports:10/100/1000 Mbps RJ45 ports for high-speed data transmission.
Integrated Power Supply:Direct AC power input without the need for an external power adapter.

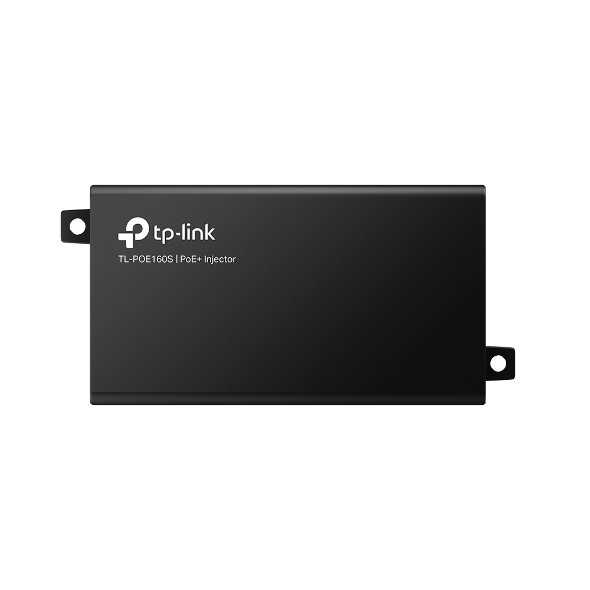

Assembly Options:Wall mounting and desktop installation support.
LED Indicators:LED lights indicating power and PoE status

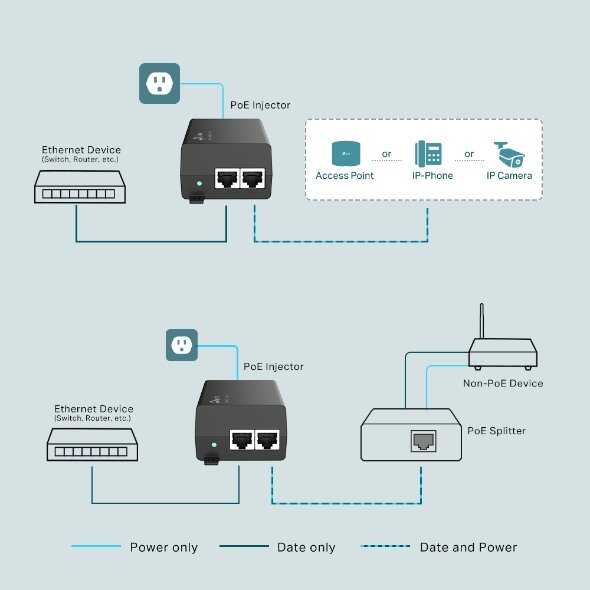

IP Camera Installations:To provide the data and power needs of security cameras with a single cable
Access Point (AP) Connections:Provide power and data connection for wireless access points.
IP Telephone Systems:Providing power and data connection for VoIP phones with a single cable
Network Expansion:Integration of PoE-supported devices into the existing network infrastructure.
Automatic Power Detection:Automatic recognition of PoE-supported devices and providing appropriate power.
Overcurrent Protection:Protection of the device against overcurrent conditions
Overvoltage Protection:The device is protected against high voltage conditions.
