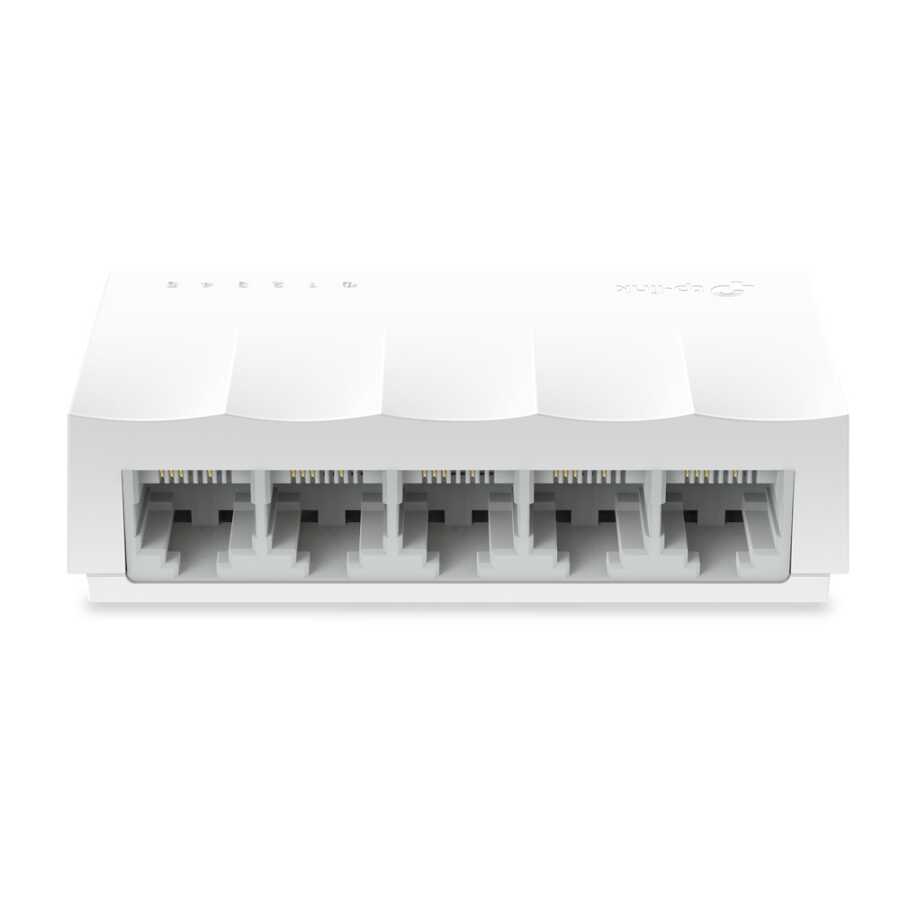

TP-LINK LS1005 5 PORT 10/100 DESKTOP SWITCH

🔧 Technical Specifications

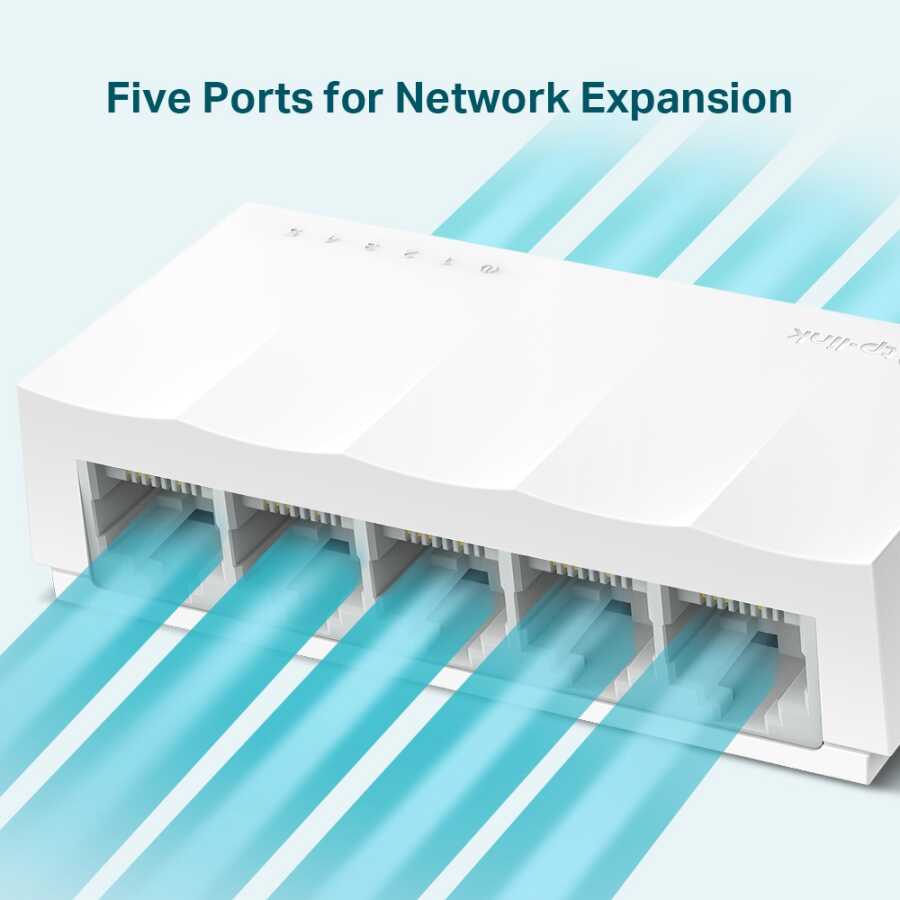

• Number of Ports: 5 x 10/100Mbps Auto-Negotiation RJ45 port

• MDI/MDIX Support: Yes (Auto-MDI/MDIX)

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

• Data Transmission Method: Store and Forward

• LED Indicators: Connection status and power indicators

• Case Type: Plastic, desktop design

• Fan: Fanless (silent operation)

• Power Supply: External power adapter (5V DC, 0.6A)

• Boyutlar: 83.6 mm (W) x 45.7 mm (D) x 22.8 mm (H)

• Maximum Power Consumption: 1.65W

• Maximum Heat Distribution: 5.627 Btu/hr

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity Ratio: 10% - 90% (non-condensing)

• Storage Humidity Rate: 5% - 90% (non-condensing)

• Sertifikalar: CE, FCC, RoHS

🌿 Energy Efficiency and Ease of Use

• Green Ethernet Technology: It automatically adjusts power consumption based on connection status and cable length to save energy.

• Plug and Play: No installation required; plug in the device and start using it immediately.

• Fanless Design: It provides silent operation and does not cause disturbance in office or home environments.

🏠 Areas of Use

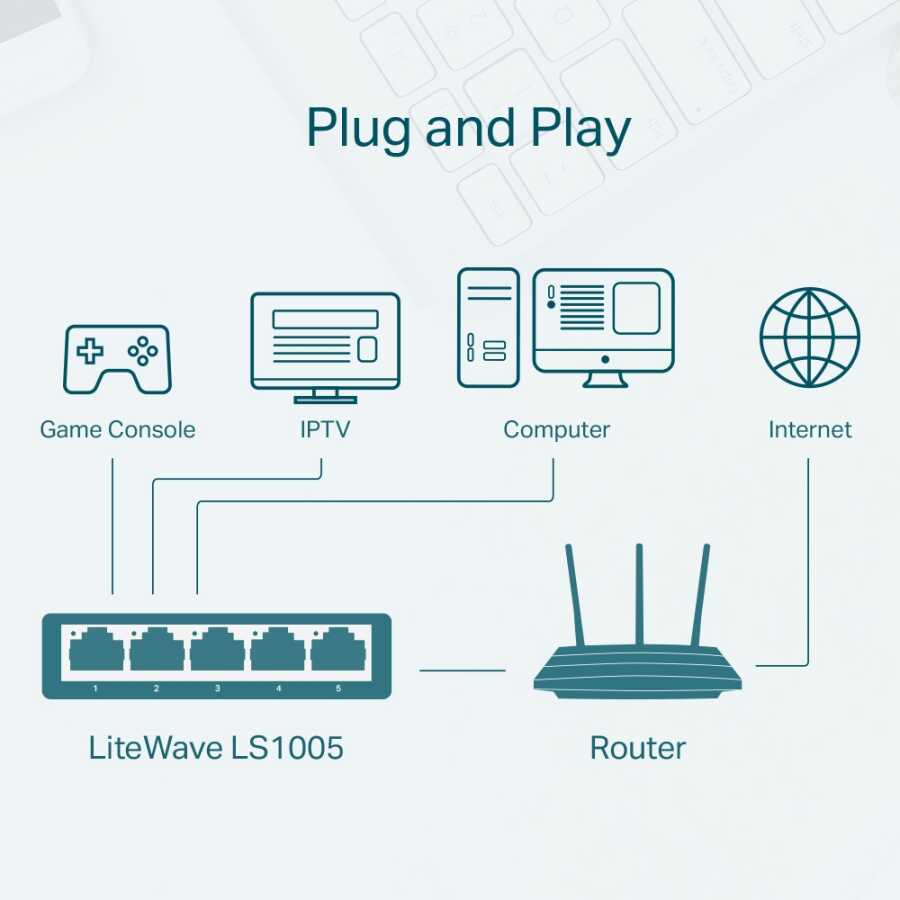

LS1005 is ideal for connecting devices such as computers, printers, IP cameras, and gaming consoles in environments like homes, small offices, student dormitories, and security systems.

📦 Package Contents

• LS1005 Switch

• Power Adapter

• Quick Setup Guide
