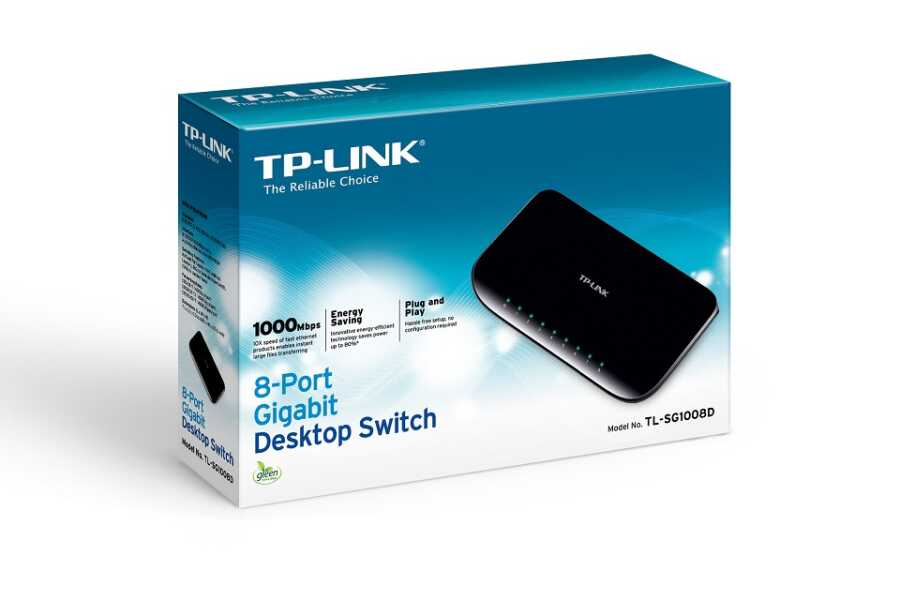

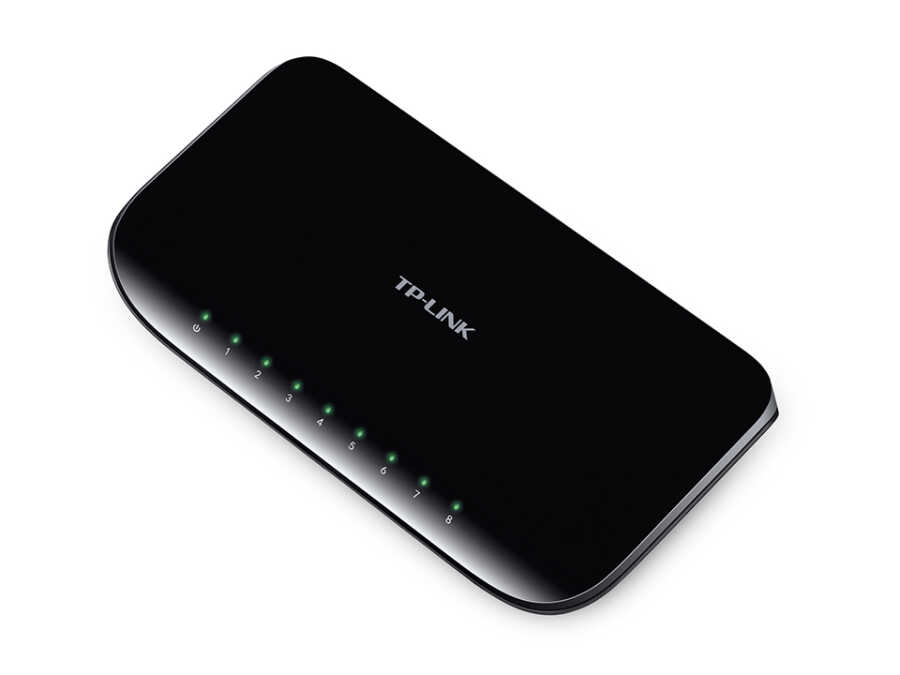

TP-LINK TL-SG1008DIt is an unmanaged gigabit Ethernet switch designed for home and small office networks, offering 8 ports with 10/100/1000 Mbps speed, auto-negotiation, and MDI/MDIX support. Thanks to its fanless design, it operates quietly and stands out with energy efficiency.

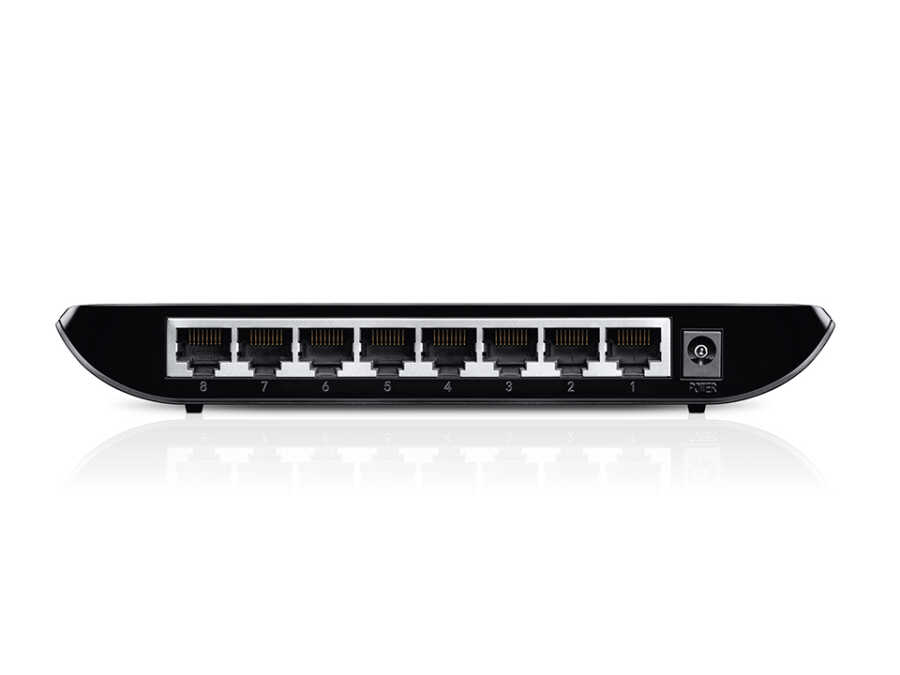

| Number of Ports | 8 × 10/100/1000 Mbps RJ45 (Auto-Negotiation, Auto MDI/MDIX) |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Switching Capacity | 16 Gbps |
| Jumbo Frame Support | 15 KB |
| MAC Address Table | 8,000 records |

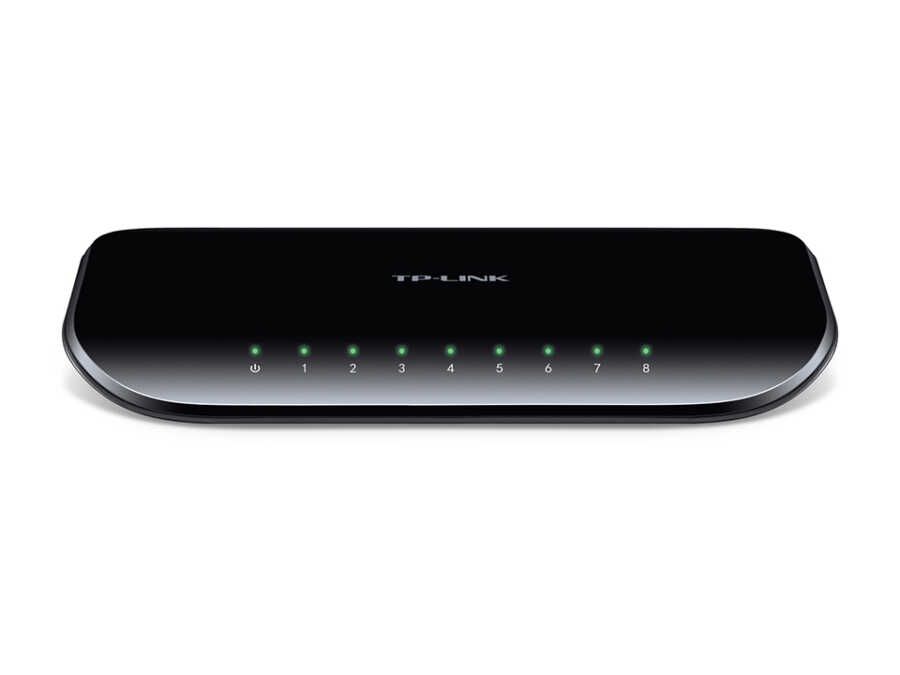

| LED Indicators | Power, Connection Status, Speed, Activity |
| Operating Mode | Store-and-Forward |
| Power Consumption | Maximum: 4.63W (220V/50Hz) |
| Power Supply | External power adapter (Output: 9V DC / 0.6A) |
| Fan | None (Fanless design) |
| Dimensions (WxDxH) | 180 × 90 × 25.5 mm |
| Assembly Options | Desktop or wall mounting support |
| Operating Temperature | Between 0°C and 40°C |
| Storage Temperature | Between -40°C and 70°C |
| Operating Humidity Ratio | Between 10% and 90%, non-condensing |
| Storage Humidity Rate | Between 5% and 90%, non-condensing |
TL-SG1008D reduces energy consumption by up to 80% using TP-LINK's "Green Ethernet" technology. This technology automatically adjusts power consumption based on connection status and cable length, providing an eco-friendly solution.
Home Network:It provides fast and reliable internet connection between devices at home.
Small Offices:It manages in-office network connections and facilitates data sharing between devices.
IPTV and HD Broadcasts:It optimizes IPTV broadcasts with support for IGMP Proxy/Snooping, Bridge, and Tag VLAN.
NAS Connections:It provides fast access to storage devices over the network.
