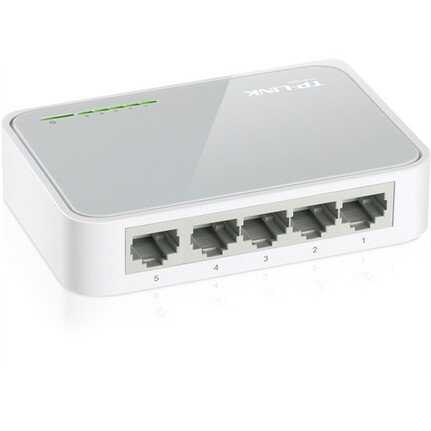

5 units of 10/100 Mbps RJ45 ports (Auto-Negotiation and Auto MDI/MDIX supported) Unmanaged device — no configuration required, plug & play
Fanless design — silent operation
Energy saving with Green Ethernet technology (reducing power consumption) (TP-Link uses "saves up to 68%" value for this model)
| Data Processing Capacity | 200 Mbps full duplex (meaning a total of 100 Mbps + 100 Mbps in both directions) |
| Transfer Method | Store-and-forward |
| Flow Control / Traffic Control | IEEE 802.3x (full duplex) and Back Pressure (half duplex) support |
| Jumbo Frame Support | 2K Jumbo frame (some sources) |
| Backplane Capacity (Backplane) | 1 Gbps |
| Message Rate Per Port | 10BASE-T: 14,880 pps / 100BASE-TX: 148,800 pps |
| Power Supply | External adapter, 5.0 V DC / 0.6 A |
| Maximum Power Consumption | ~ 1.9 W |
| Boyutlar | 103.5 × 70 × 22 mm (~ 4.1 × 2.8 × 0.9 in) |
| Work Environment | Temperature: 0 °C – 40 °C Humidity: 10% – 90% (non-condensing) |
| Storage Status | Temperature: -40 °C – 70 °C Humidity: 5% – 90% (non-condensing) |
Auto-NegotiationThanks to its ports, devices automatically select either 10 Mbps or 100 Mbps speed.
Auto MDI/MDIXdoes not require a crossover cable with support (connection can be made regardless of cable type)
Plastic case, desktop design
Compliant with CE, RoHS certifications
