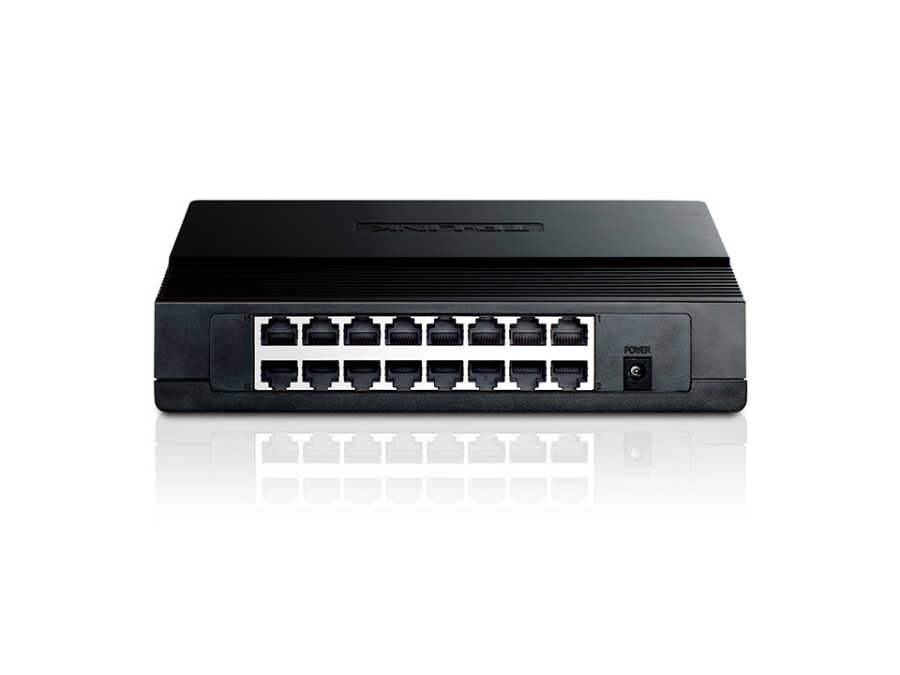

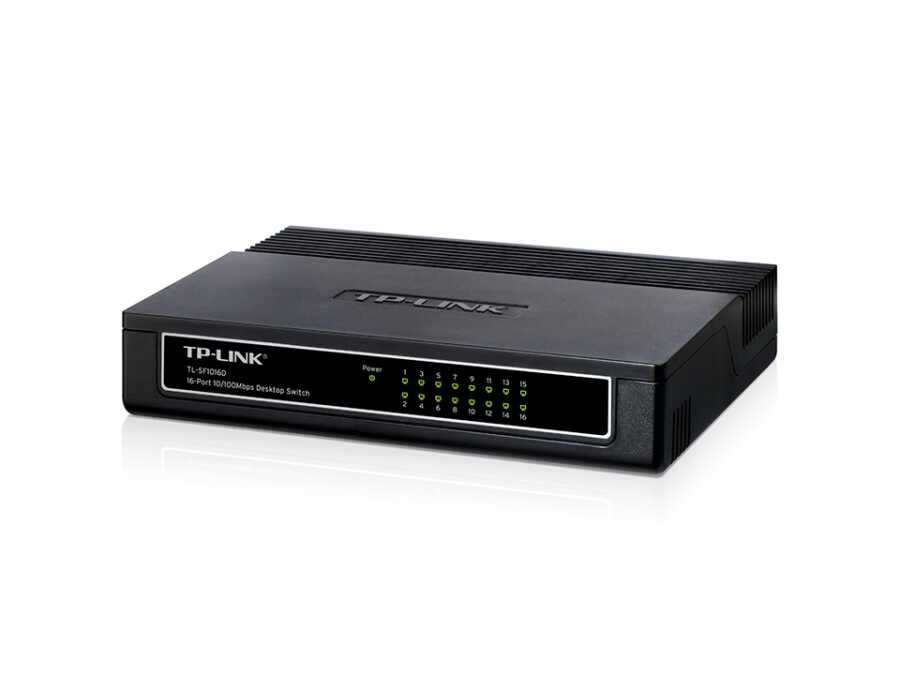

TL-SF1016D 16 Port 10/100 MBIT

🔧 Technical Specifications

• Number of Ports:16 × 10/100 Mbps RJ45 Auto-Negotiation port

• MDI/MDIX Support:Auto MDI/MDIX (automatic crossover support)

• Connection Speed:10/100 Mbps (auto-detection)

• Operating Mode:Half and full duplex

• Maximum Data Rate:200 Mbps (full duplex)

• Jumbo Frame Support:9K Jumbo Frame

• Transmission Method: Store-and-Forward

• MAC Address Table:1,000 addresses

• Switching Capacity:3.2 Gbps

• LED Indicators:Power, Port 1–16 (Connection and Activity)

• Power Consumption:Maximum 4.3W (220V/50Hz)

• Power Supply:External adapter (Output: 9V DC, 0.6A)

• Boyutlar:280 × 180 × 44 mm

• Ağırlık:Approximately 600 grams

• Operating Temperature:Between 0°C and 40°C

• Storage Temperature:-40°C to 70°C

• Humidity Rate:Operating: 10%–90% (non-condensing); Storage: 5%–90% (non-condensing)

✅ Advantages

• Easy Installation:Plug-and-play design requires no configuration.

• Wide Compatibility:With Auto MDI/MDIX support, there is no need for a crossover cable.

• Reliable Data Transfer:IEEE 802.3x flow control prevents data loss.

• Energy Efficiency:With Green Ethernet technology, power consumption can be reduced by up to 70%.

• Fanless Design:It provides silent operation.

🛠️ Application Areas

• Home networks

• Small offices (SOHO)

• Network expansion and device connections

• Adding ports for IP cameras, printers, and other network devices.
