RG-RAP52-OD

Ruijie RG-RAP52-ODIt is an outdoor Wi-Fi access point and belongs to the Reyee series. Below, you can find the detailed technical specifications of this device.

🌐 Basic Features

• Model: RG-RAP52-OD

• Seri:Reyee (Ruijie)

• Usage Type:Outdoor

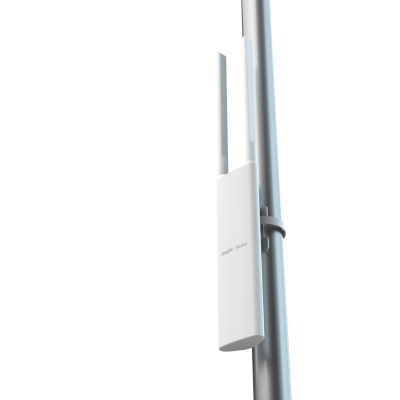

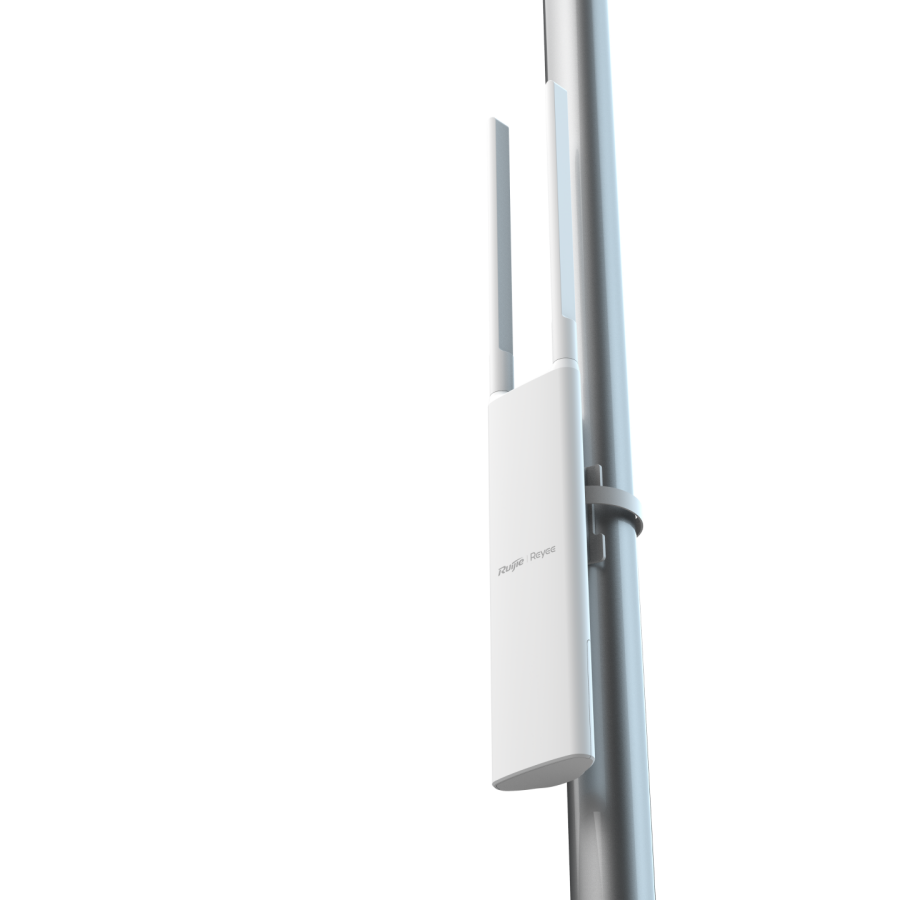

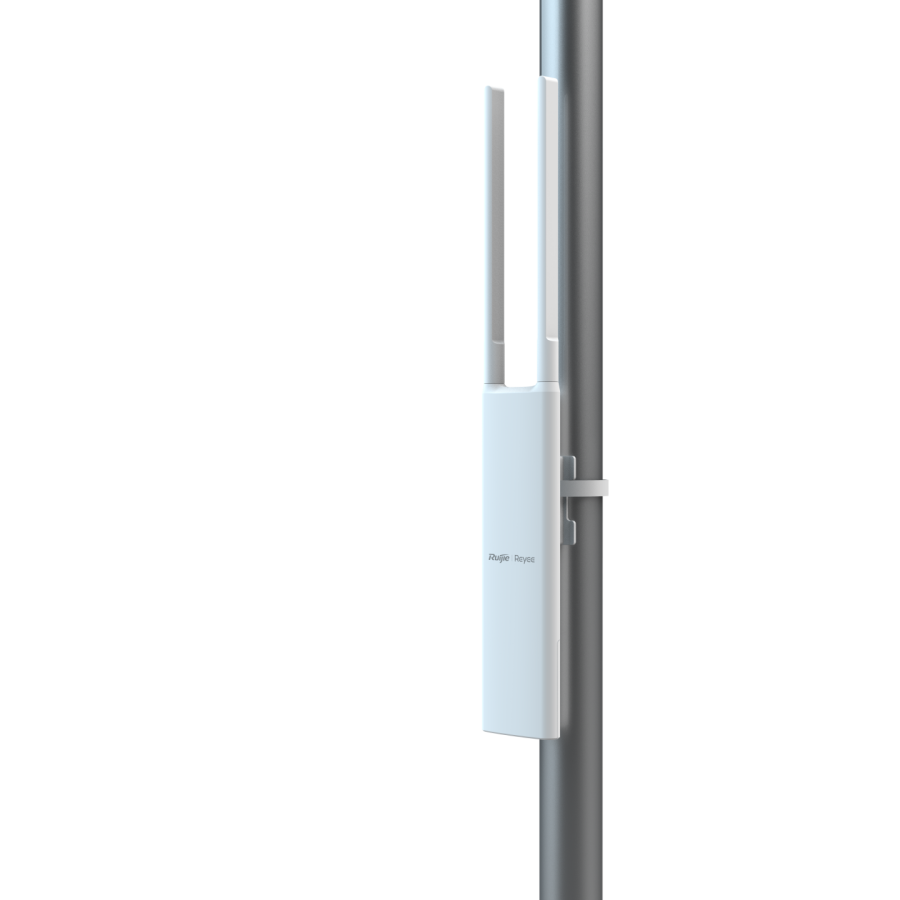

• Mounting Type:Direct or wall mounting

📶 Wireless Features

• Wi-Fi Standard:IEEE 802.11a/b/g/n/ac Wave2

• Dual Band:2.4 GHz & 5 GHz (operates simultaneously)

• Maximum Wireless Speed:

  • 2.4 GHz: 300 Mbps

  • 5 GHz: 867 Mbps

  • Toplam:1167 Mbps

• Antenna Type:2 × 5 dBi (internal omnidirectional)

• MIMO:2×2 MU-MIMO

🔌 Wired Connection

• Ethernet Ports:

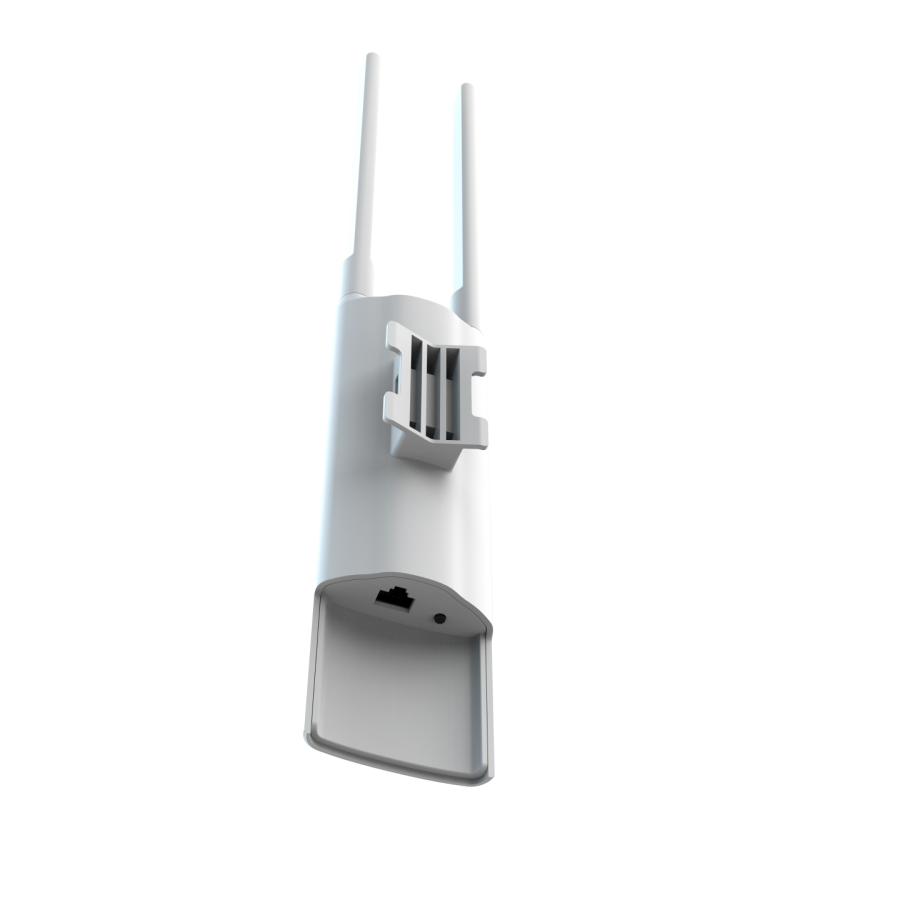

  • 1 × 10/100/1000 Mbps Ethernet (PoE supported)

⚡ Güç

• PoE Support:IEEE 802.3af/at

• Power Consumption:Max. 13W

🌧️ Environmental Resilience

• IP Protection Class:IP68 (Dust and water resistant)

• Operating Temperature:-30°C to +65°C

🛠️ Management and Features

• Yönetim:

  • Remote management via Ruijie Cloud

  • Easy installation with the mobile app

• Software Features:

  • SSID separation

  • ACL (Access Control List)

  • VLAN support

  • Portal, captive portal, access control, guest network

📦 Box Contents

• RG-RAP52-OD device

• Assembly apparatuses

• Quick setup guide

• Waterproof accessories
