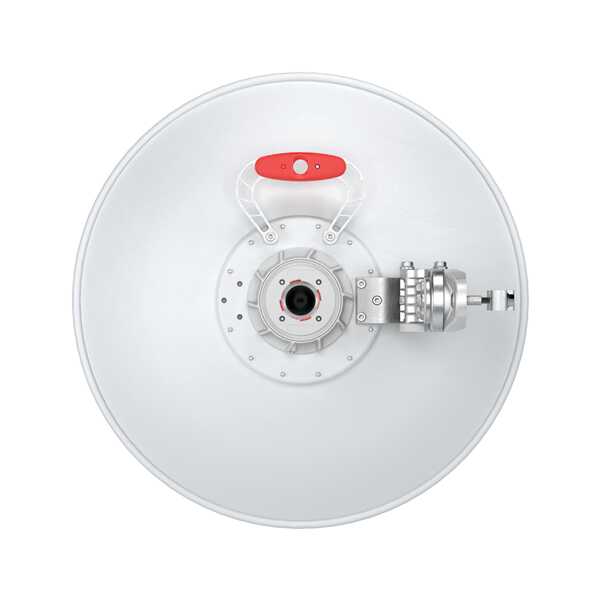

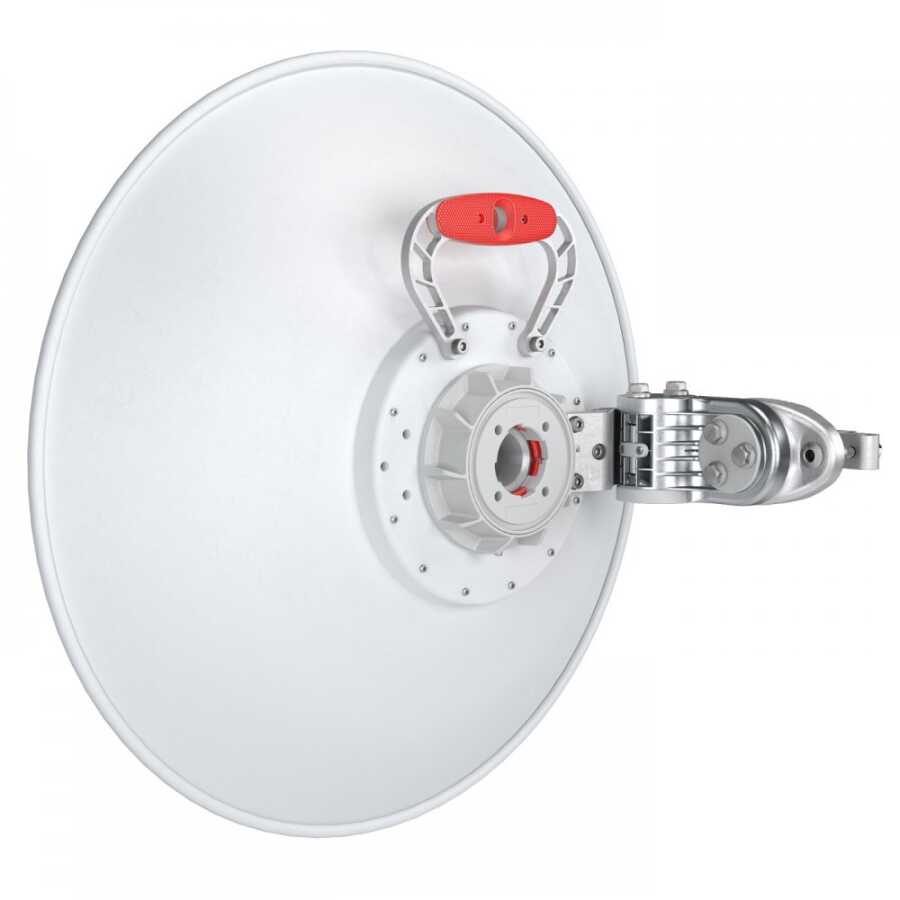

RF Elements UltraDish TP 550 (ULD-TP-550)It is a high-directionality parabolic antenna operating in the 5 GHz band with a gain of 27.5 dBi. This antenna is specifically designed for CPE (Customer Premises Equipment) and Point-to-Point (PtP) connections. Thanks to the TwistPort™ connector, it provides nearly lossless connectivity, enabling easy integration and maintenance of radio devices.
Frequency Range: 5180 – 6100 MHz
Kazanç: 27.5 dBi
Beam Width (-3 dB):
Horizontal: 6°
Vertical: 6.5°
Beam Width (-6 dB):
Horizontal: 8°
Vertical: 8.5°
Front-Back Ratio (Min.): 37 dB
Polarizasyon: Bilinear (H + V)
Empedans: 50 Ohm
VSWR (Max.)1.8
Connection Type: TwistPort™ - Quick Lock Waveguide Port
Antenna Type: Parabolic Dish
Malzeme: Aluminum alloy reflector, UV resistant plastic, stainless steel mounting parts
Protection ClassIP65
Operating Temperature: -40°C to +60°C
Wind Resistance: 160 km/h
Wind Load: 324 N @ 160 km/h
Mounting Pole Diameter: 25 – 80 mm (preferably close to 80 mm if possible)
Ağırlık: 3.7 kg (single antenna)
Boyutlar: 567 × 567 × 315 mm
High Directivity: It is ideal for long-distance connections thanks to its narrow beam width.
Low Side Lobes: It provides a cleaner signal by minimizing the levels of interference.
TwistPort™ Connector: It offers almost lossless connection and easy setup.
Durable Design: It is resistant to challenging outdoor conditions.
Easy Installation: It comes pre-assembled and can be set up with a single tool.
CPE Connections: It provides high-gain connections for customer-side equipment.
Point to Point (PtP) Connections: It is suitable for long-distance, high-speed data transmission.
Noisy Environments: It minimizes interference levels thanks to low side lobes.
