UH-TP-5-24 UltraHorn

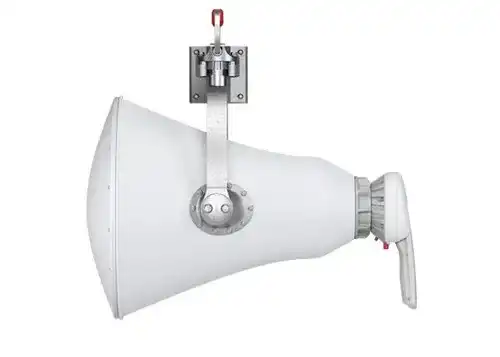

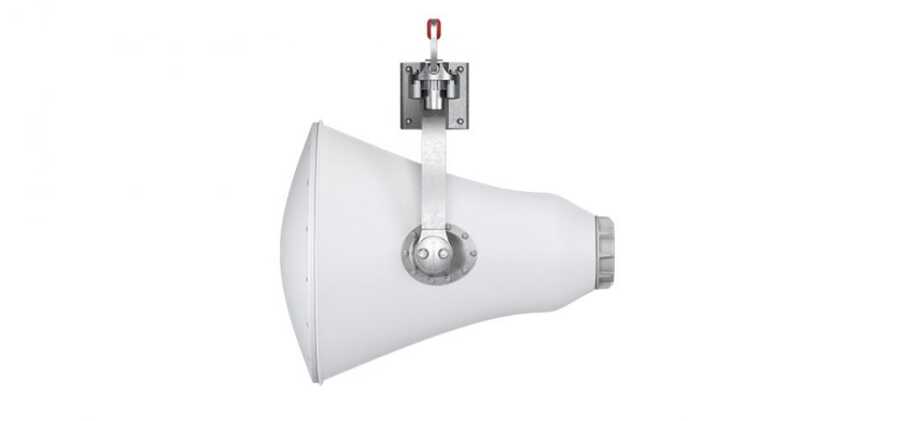

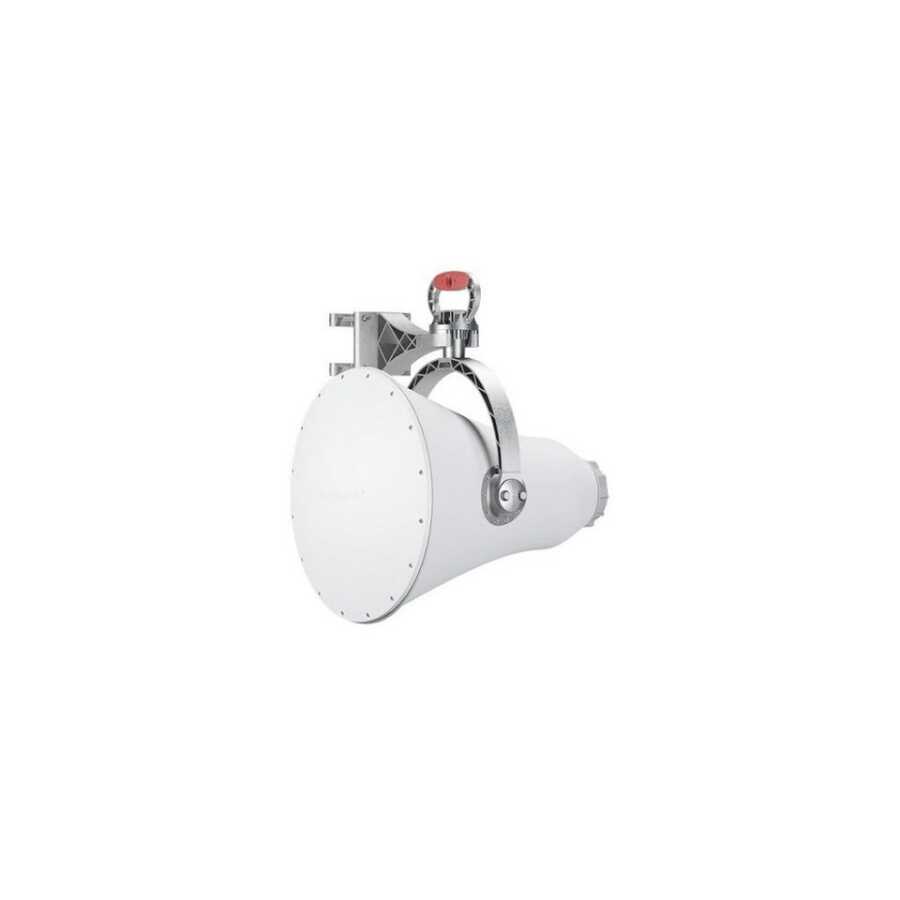

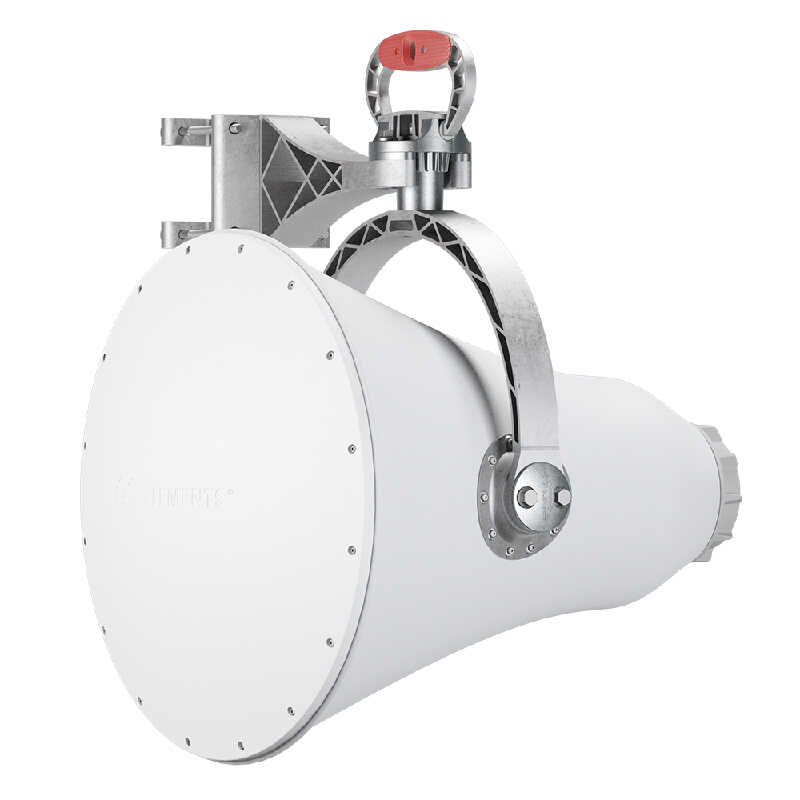

RF elements UltraHorn™ TP 5-24, high-gain and directionalHorn antennaIt is designed for long-distance point-to-point (PtP) wireless connections, especially in noisy environments. This antenna minimizes interference by eliminating side lobes and enhances signal integrity.

📡 Technical Specifications

• Model: UH-TP-5-24

• Frequency Range: 5180 – 6400 MHz

• Kazanç: 24 dBi

• Beam Width:

  • -3 dB: Horizontal 11°, Vertical 11°

  • -6 dB: Horizontal 16°, Vertical 15°

• Polarizasyon: Bilinear (H + V)

• Front-Back Ratio: 40 dB

• Ray Efficiency: 99%

• Connection Interface: TwistPort™ – Quick-Locking Waveguide Port

• Malzeme: UV resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel

• Protection ClassIP55

• Mounting Pole Diameter: 30–80 mm

• Mechanical Adjustment: ±25° Elevation and Azimuth

• Operating Temperature: -30°C to +55°C

• Wind Resistance: 160 mph

• Wind Load: 197 N @ 160 km/h

• Boyutlar: 592 × 662 × 518 mm

• Ağırlık: 8.2 kg (packaged 9.2 kg)

🎯 Highlighted Features

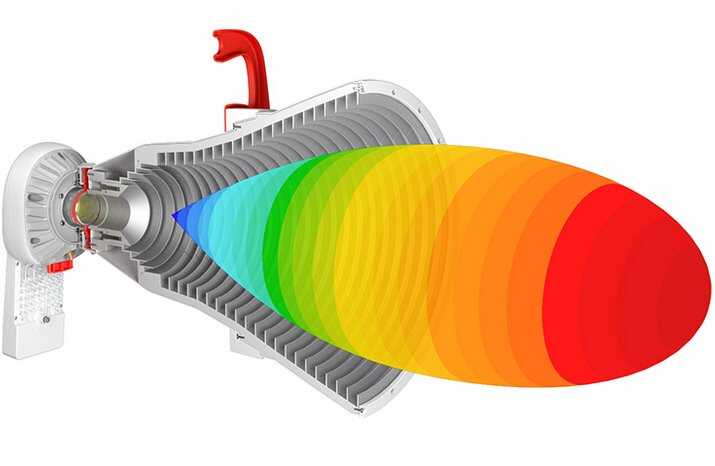

• High Immunity to Interference: It provides superior performance in noisy environments due to the absence of side lobes.

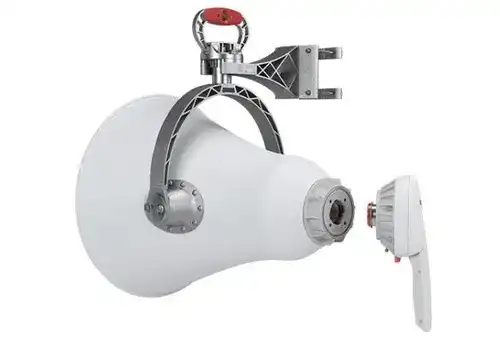

• TwistPort™ Connection: It offers an almost lossless connection and provides ease of setup.

• Durable Design: It offers high resistance against challenging external environmental conditions.

• Wide Compatibility: RF elements' TwistPort™ adapters are compatible with various third-party radios.
