RF ELEMENTS TWISTPORT SHIELDED ADAPTOR FOR ROCKET AC

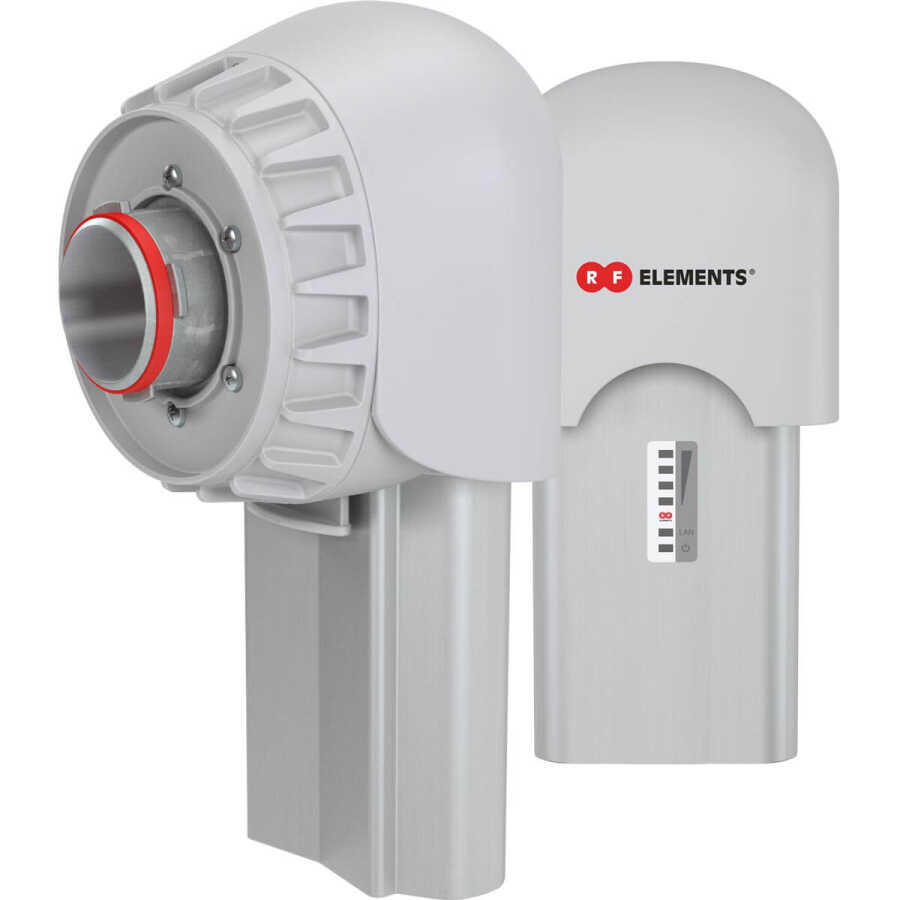

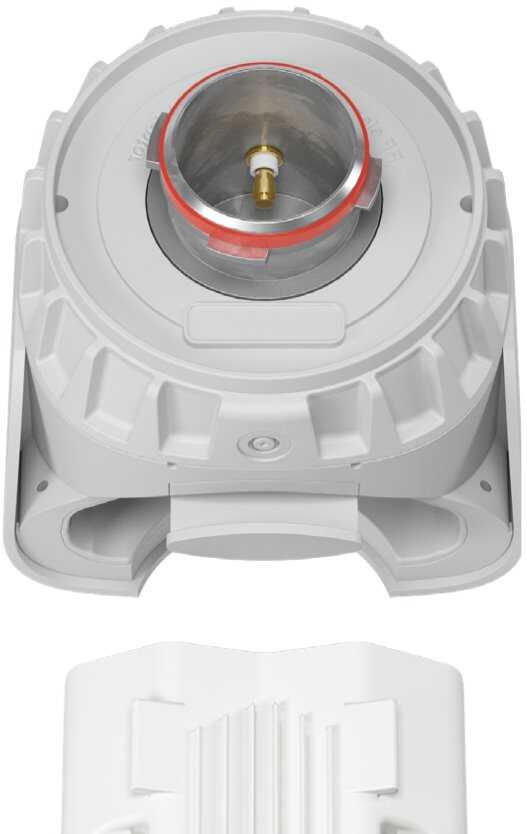

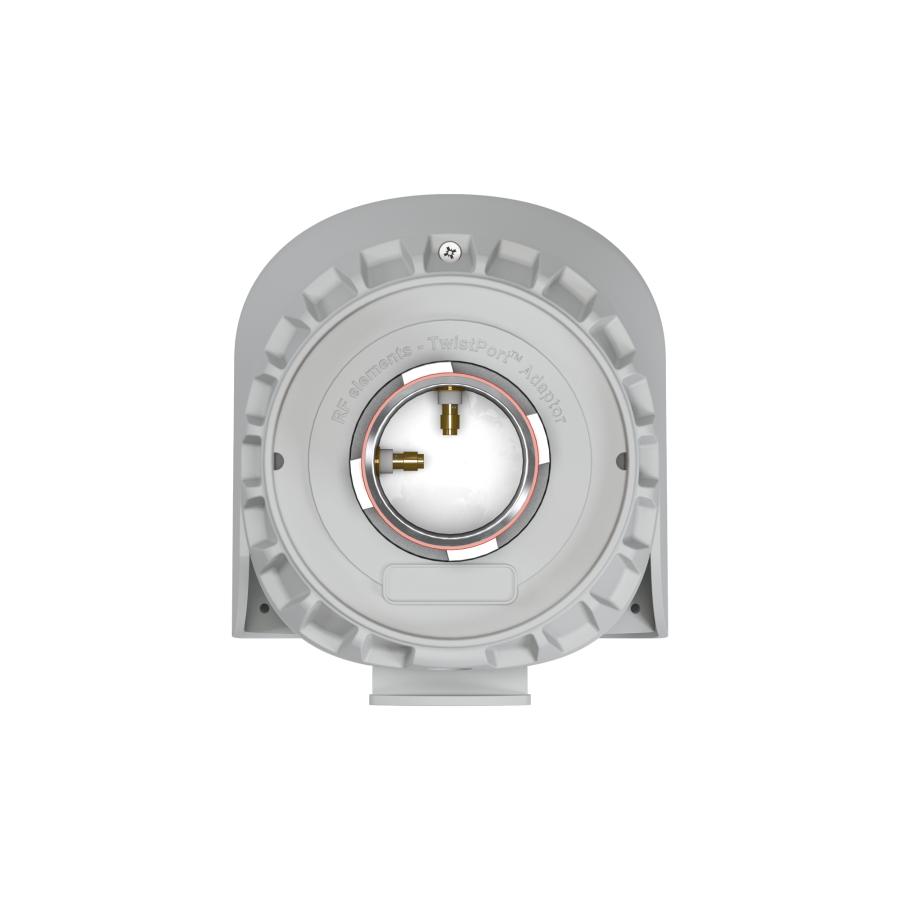

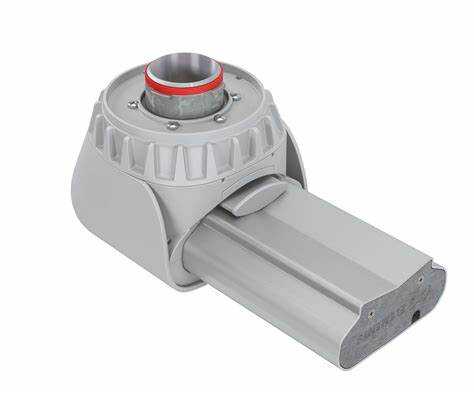

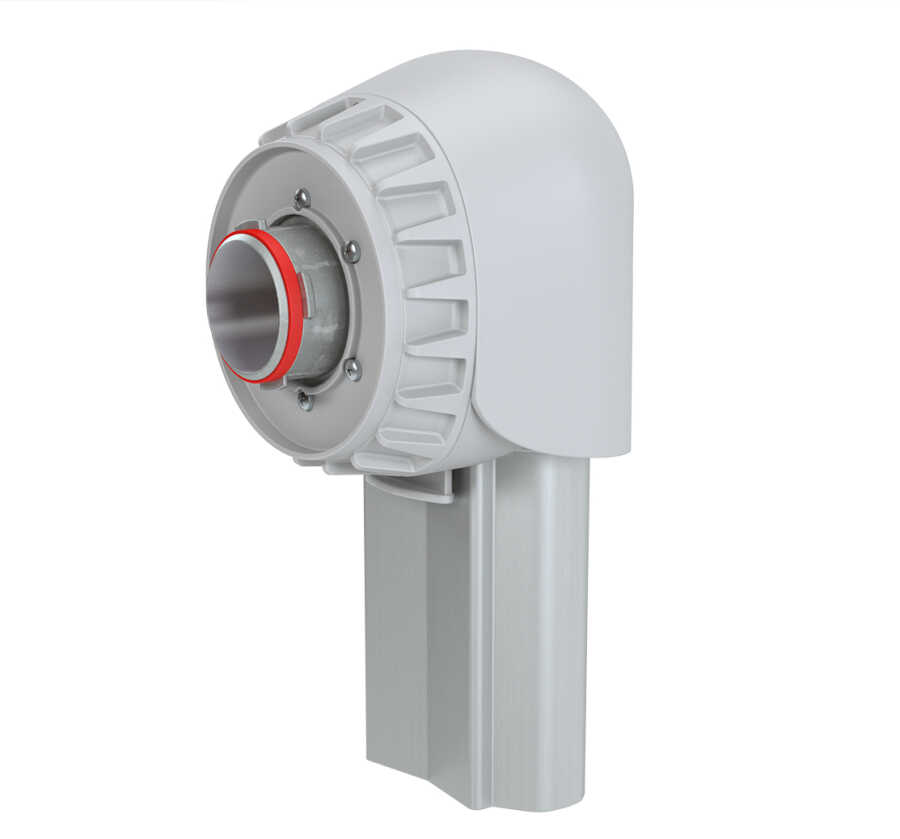

RF elements TwistPort™ Shielded Adapter for Rocket AC (TP-ADAPTOR-R5AC-S)It is an adapter designed to make Ubiquiti's Rocket 5AC-Lite devices compatible with RF elements' TwistPort™ antennas. This adapter reduces electromagnetic interference thanks to integrated metal protection and provides resistance against external environmental conditions.

📡 Technical Specifications

• Frequency Range: 5400 – 5900 MHz

• Polarizasyon: Bilinear (H + V)

• Cross Polarization Isolation (Min.): 29 dB

• VSWR (Max.)1.8

• Empedans: 50 Ohm

• Inter-Port Isolation: 37 dB

• Antenna Connection: TwistPort™ – Quick-Locking Waveguide Port

• Radio Connection: 2 × Slide-On RP-SMA

• Malzeme:

  • Inner Part: Aluminum Alloy

  • Kalkan: Aluminum and Zinc Alloy

  • Adapter: UV stabilized and weather-resistant ABS plastic

• Flame Resistance: UL 94 HB

• Operating Temperature: -40°C to +60°C

• Wind Resistance: 160 mph

• Ağırlık:

  • Single Unit: 0.5 kg

  • Packaged: 0.7 kg

• Boyutlar: 112 × 112 × 225 mm

📦 Package Contents

• TwistPort™ Adapter Body

• TwistPort™ Adapter Bottom Cover

• 2 × Screw (2.9 x 6.5 mm)

✅ Featured Features

• Quick and Tool-Free Installation: Thanks to the TwistPort™ mechanism, the radio and antenna connection is fast and easy.

• Integrated Protection: Metal protection reduces electromagnetic interference and extends the device's lifespan.

• High Compatibility: It is compatible with Ubiquiti Rocket 5AC-Lite devices.

• Durable Design: It offers high resistance against challenging external environmental conditions.
