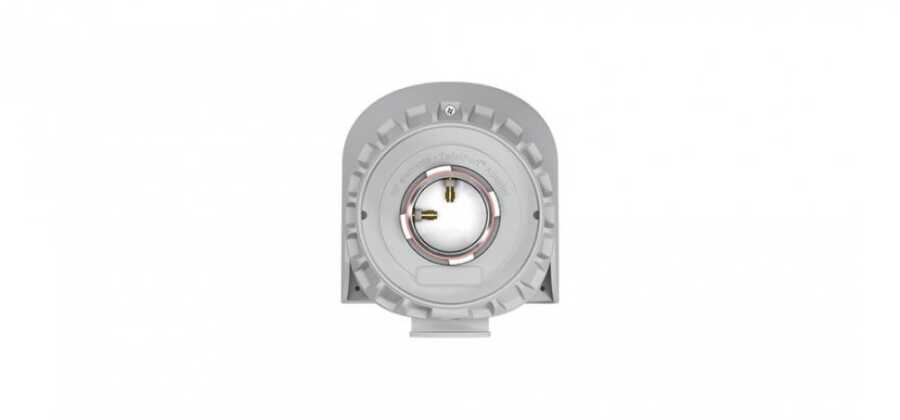

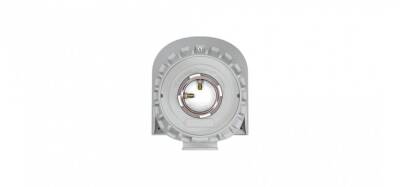

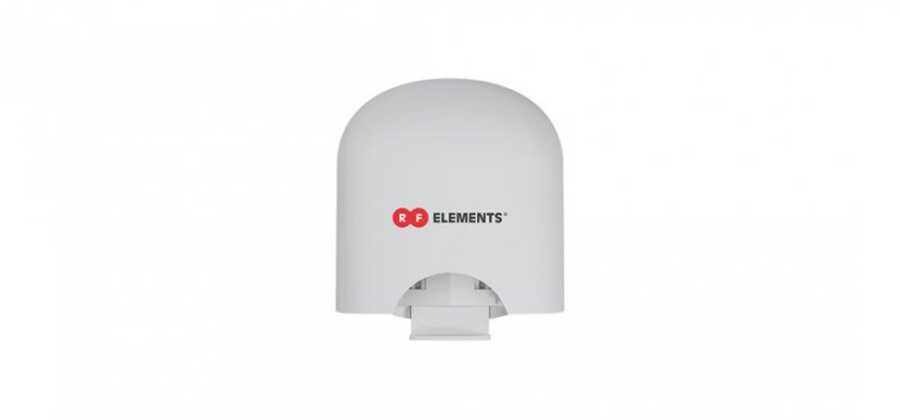

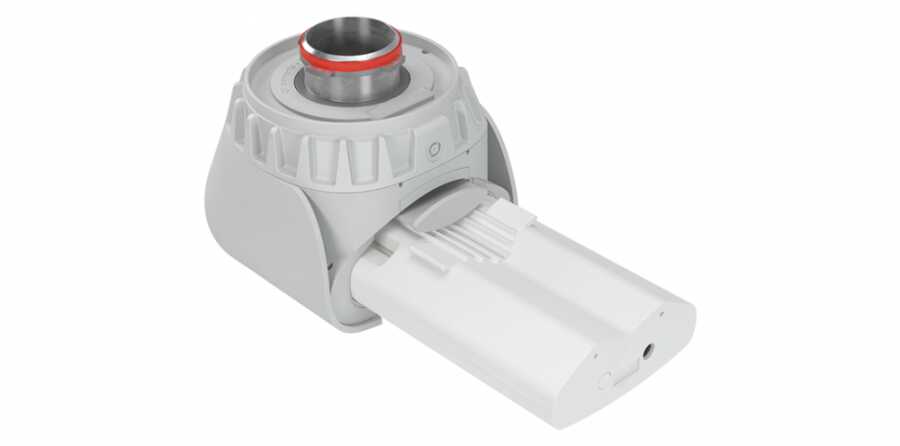

RF ELEMENTS TWISTPORT ADAPTOR FOR ROCKET M5

RF elements TPA-RM5 TwistPort™ Adapter, It is an adapter that makes Ubiquiti Networks' Rocket™ M5 devices compatible with RF elements' TwistPort™ antennas. This adapter provides flexibility and efficiency in network infrastructures by enabling quick and tool-free installation.

📡 Technical Specifications

• Frequency Range: 5180 – 6400 MHz

• Polarizasyon: Bilinear (H + V)

• VSWR (Max.)1.8

• Empedans: 50 Ohm

• Antenna Connection: TwistPort™ – Quick-Locking Waveguide Port

• Radio Connection: 2 × Slide-On RP-SMA

• Malzeme:

  • Inner Part: Aluminum Alloy

  • Adapter: UV stabilized and weather-resistant ABS plastic

• Flame Resistance: UL 94 HB

• Operating Temperature: -40°C to +60°C

• Wind Resistance: 160 mph

• Ağırlık:

  • Single Unit: 0.4 kg

  • Packaged: 0.5 kg

  • 20-Pack Box: 11.5 kg

• Boyutlar:

  • Single Unit: 130 × 112 × 112 mm

  • 20-Pack Box: 60.5 × 29.0 × 28.5 cm

✅ Compatibility

• RF elements: Compatible with all TwistPort™ antennas.

• Ubiquiti NetworksRocket™ M5

⚙️ Featured Features

• Quick and Tool-Free Installation: Thanks to the TwistPort™ mechanism, the radio and antenna connection is fast and easy.

• High Compatibility: Compatible with Rocket™ M5 devices.

• Durable Design: It offers high resistance against challenging external environmental conditions.

• High Performance: It provides efficient signal transmission with a low VSWR value and 50 Ohm impedance.
