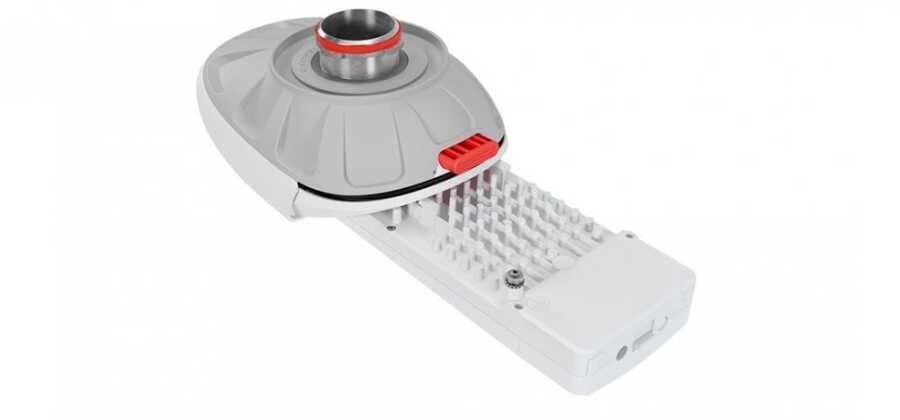

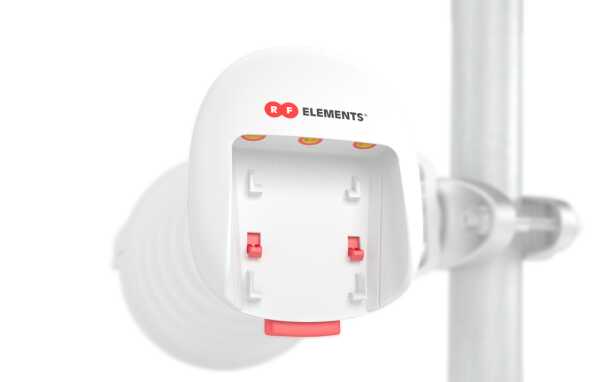

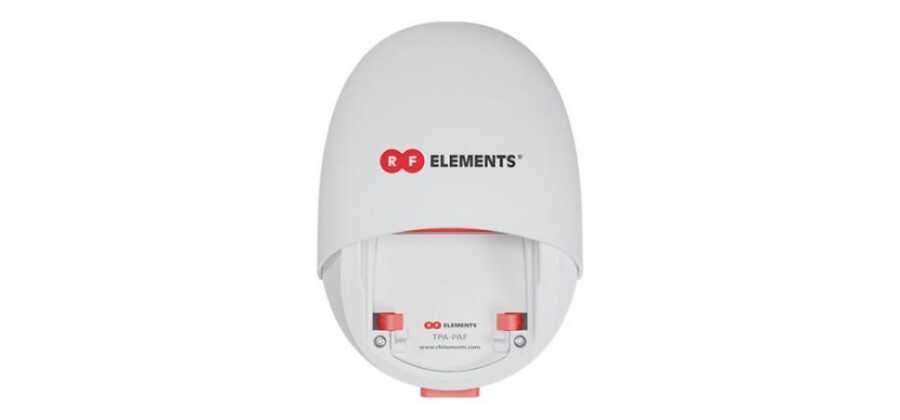

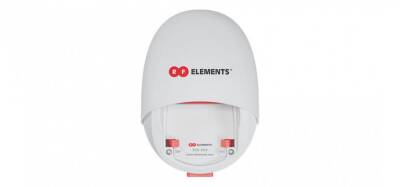

RF elements TwistPort™ Adapter for Rocket 5AC Prism Gen2 (TP-ADAP-R5AC-PRISM)It is an adapter that makes Ubiquiti's Rocket 5AC Prism and Rocket 5AC Prism Gen2 devices compatible with RF elements' TwistPort™ antennas. This adapter provides flexibility and efficiency in network infrastructures by enabling quick and tool-free installation.
Frequency Range: 5180 – 6400 MHz
Polarizasyon: Bilinear (H + V)
VSWR (Max.)1.8
Empedans: 50 Ohm
Antenna Connection: TwistPort™ – Quick-Locking Waveguide Port
Radio Connection: 2 × Slide RP-SMA and 1 × RP-SMA (for GPS)
Malzeme:
Inner Part: Aluminum Alloy
Adapter: UV stabilized and weather-resistant ABS plastic
Flame Resistance: UL 94 HB
Operating Temperature: -40°C to +60°C
Wind Resistance: 160 mph
Ağırlık: 0.36 kg
Boyutlar: 156 mm x 123 mm x 123 mm
Quick and Tool-Free Installation: Thanks to the TwistPort™ mechanism, the radio and antenna connection is fast and easy.

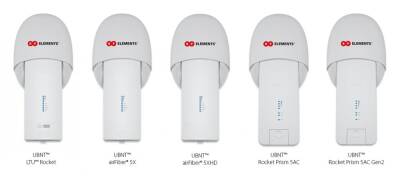

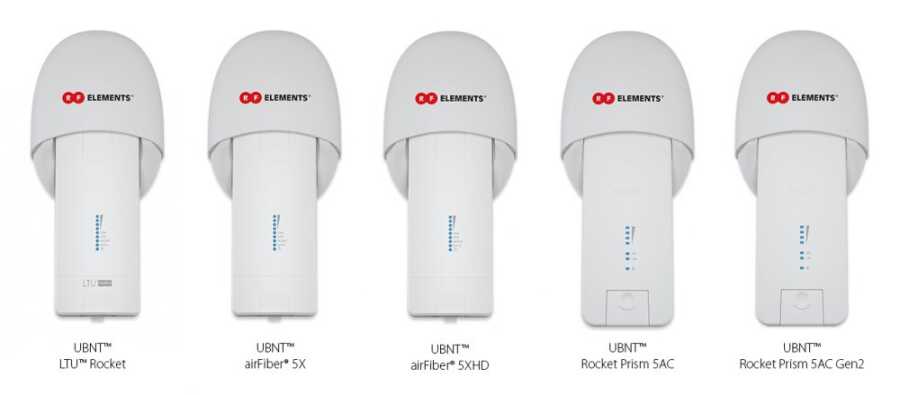

High Compatibility: Ubiquiti Rocket 5AC Prism is compatible with Rocket 5AC Prism Gen2 devices.
Durable Design: It offers high resistance against challenging external environmental conditions.
High Performance: It provides efficient signal transmission with a low VSWR value and 50 Ohm impedance.
