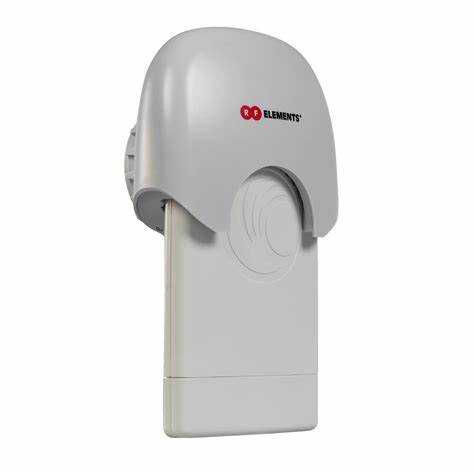

RF ELEMENTS TWISTPORT ADAPTOR FOR EPMP 2000 (CAMBIUM)

RF elements TwistPort™ Adapter for ePMP™ 2000 (TP-ADAP-e2K)It is a high-performance adapter designed to make Cambium Networks' ePMP 2000 series devices compatible with RF elements' TwistPort™ antennas. This adapter provides flexibility and efficiency in network infrastructures by enabling quick and tool-free installation.

📡 Technical Specifications

• Model: TP-ADAP-e2K

• Compatible Devices:

  • Cambium Networks ePMP™ 2000 AP

  • ePMP™ Force 400C

  • ePMP™ 4500L

• Compatible Antennas: All RF elements TwistPort™ antennas

• Frequency Range: 5180 – 6400 MHz

• Polarizasyon: Bilinear (H + V)

• VSWR (Max.)1.8

• Empedans: 50 Ohm

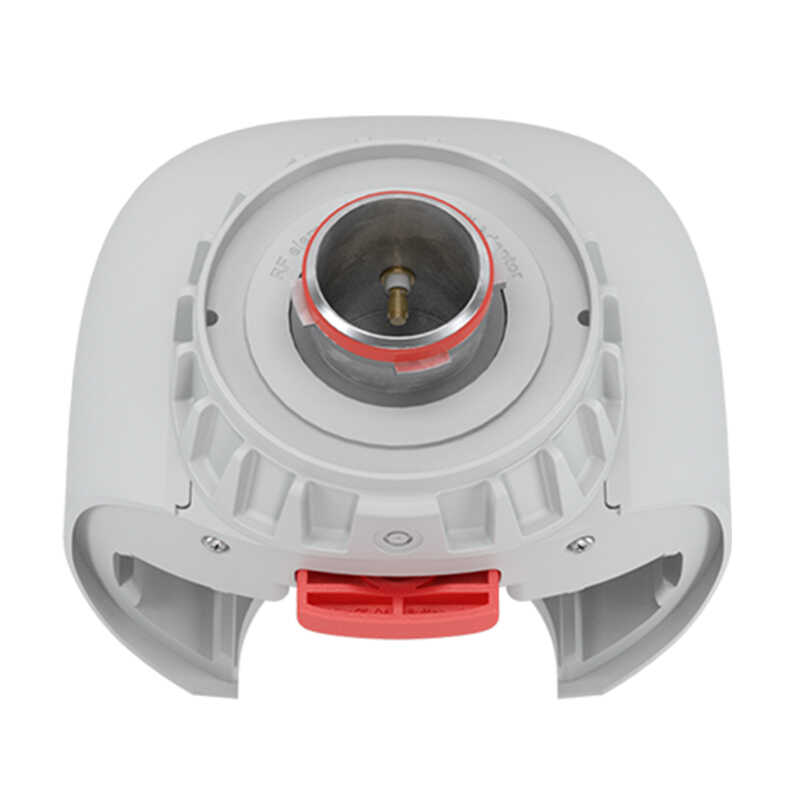

• Antenna Connection: TwistPort™ – Quick-Locking Waveguide Port

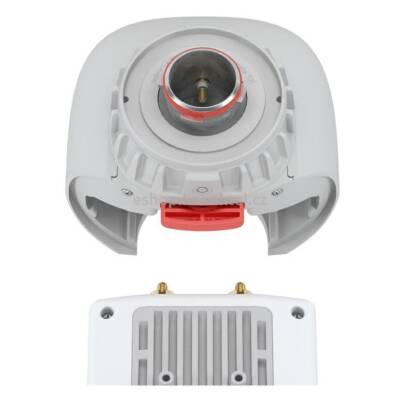

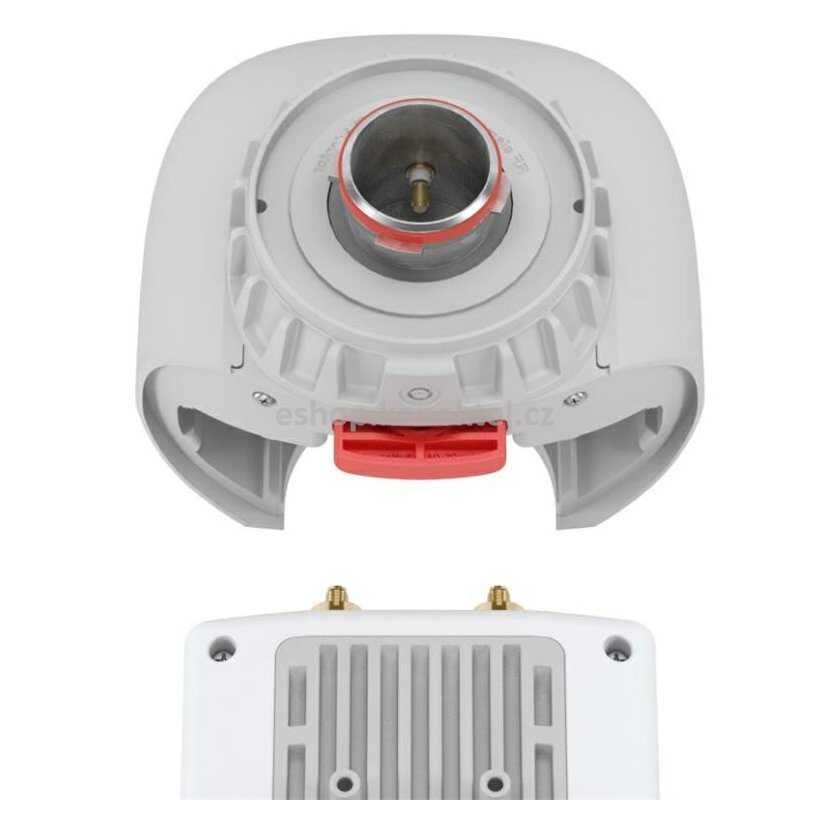

• Radio Connection: 2 × Slide-On RP-SMA

• Malzeme:

  • Inner Part: Aluminum Alloy

  • Adapter: UV stabilized and weather-resistant ABS plastic

• Flame Resistance: UL 94 HB

• Operating Temperature: -40°C to +60°C

• Wind Resistance: 160 mph

• Boyutlar: 157 × 154 × 116 mm

• Ağırlık: 0.42 kg

🎯 Highlighted Features

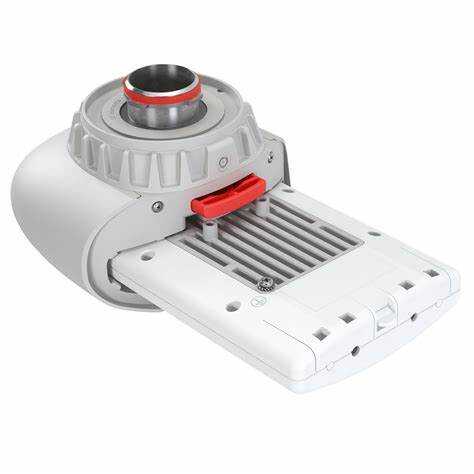

• Quick and Tool-Free Installation: Thanks to the TwistPort™ mechanism, the radio and antenna connection is fast and easy.

• High Compatibility: It is compatible with various Cambium Networks devices and offers flexibility in different network configurations.

• Durable Design: It offers high resistance against challenging external environmental conditions.

• High Performance: It provides efficient signal transmission with a low VSWR value and 50 Ohm impedance.
