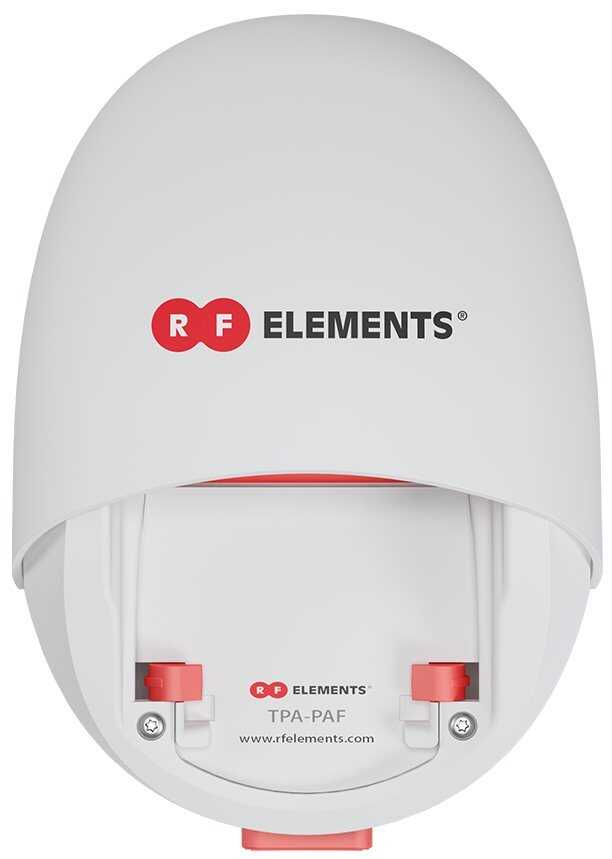

TPA-PAF

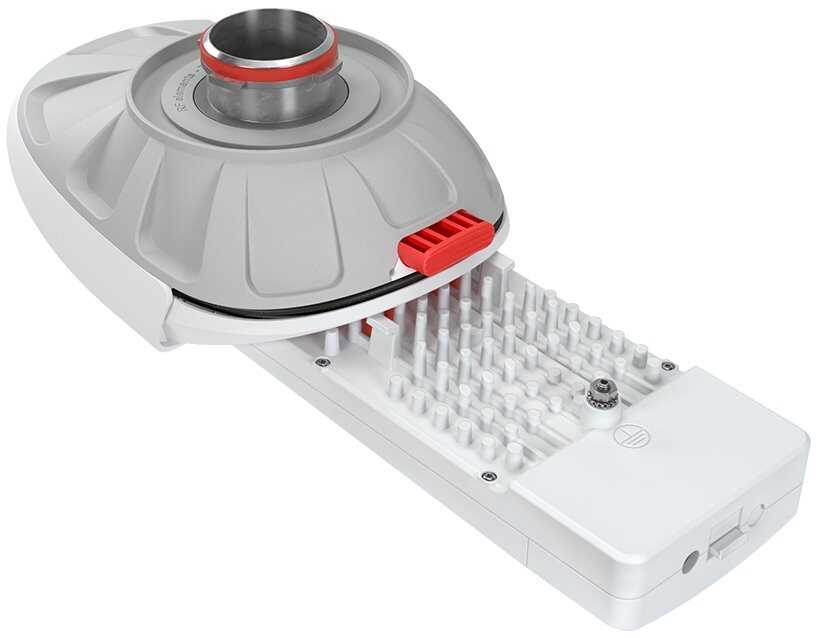

RF elements TPA-PAF TwistPort™ AdapterIt is an adapter that makes certain Ubiquiti Networks devices compatible with RF elements' TwistPort™ antennas. This adapter provides flexibility and efficiency in network infrastructures by enabling quick and tool-free installation.

📡 Technical Specifications

• Frequency Range: 5180 – 6400 MHz

• Polarizasyon: Bilinear (H + V)

• VSWR (Max.)1.8

• Empedans: 50 Ohm

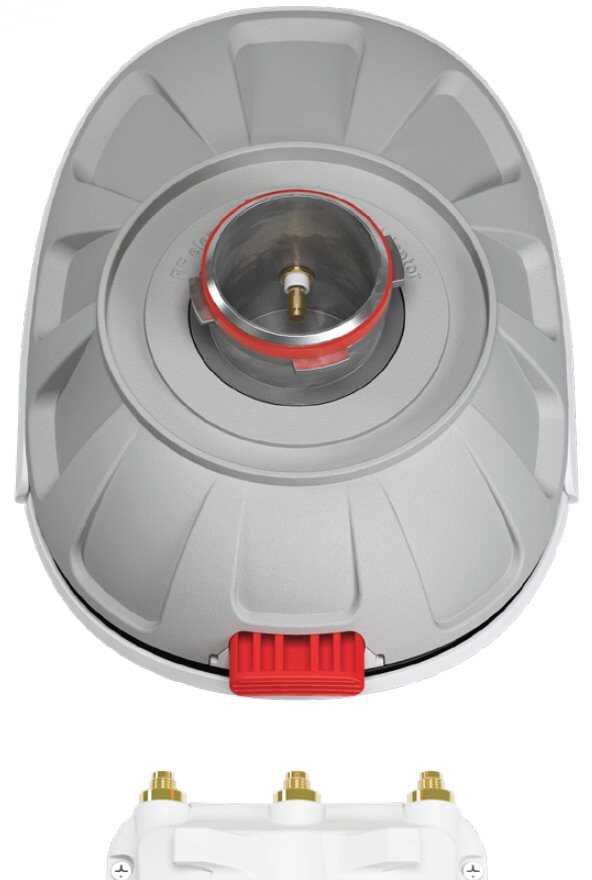

• Antenna Connection: TwistPort™ – Quick-Locking Waveguide Port

• Radio Connection: 2 × Slide RP-SMA and 1 × SMA for GPS

• Malzeme:

  • Inner Part: Aluminum Alloy

  • Adapter: UV stabilized and weather-resistant ABS plastic

• Flame Resistance: UL 94 HB

• Operating Temperature: -40°C to +60°C

• Wind Resistance: 160 mph

• Ağırlık:

  • Single Unit: 0.34 kg

  • Packaged: 0.52 kg

  • 20-Pack Box: 11.2 kg

• Boyutlar:

  • Single Unit: 132 × 190 × 98 mm

  • 20's Box: 1050 × 290 × 230 mm

✅ Compatibility

• RF elements: Compatible with all TwistPort™ antennas.

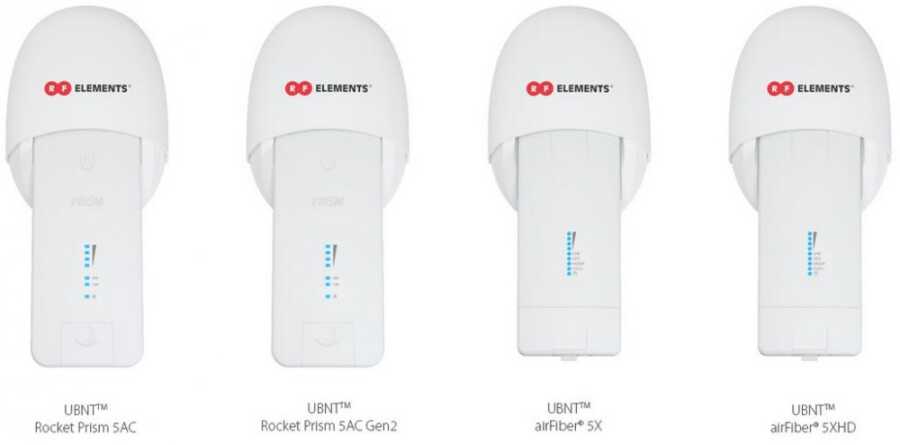

• Ubiquiti Networks:

  • LTU™ Rocket

  • Rocket® Prism 5AC

  • Rocket® Prism 5AC Gen2

  • airFiber® 5X

  • airFiber® 5X-HD

⚙️ Featured Features

• Quick and Tool-Free Installation: Thanks to the TwistPort™ mechanism, the radio and antenna connection is fast and easy.

• GPS Antenna Integration: It includes a protected area for the GPS antenna that comes with Ubiquiti devices.

• High Performance: It provides efficient signal transmission with an ultra-wideband spectrum (5180–6400 MHz) and low VSWR.

• Durable Design: It offers high resistance against challenging external environmental conditions.
