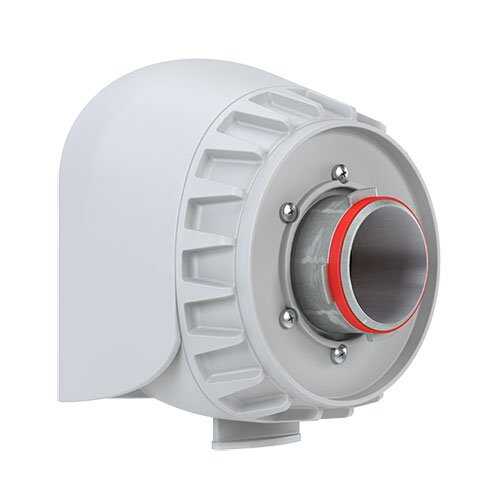

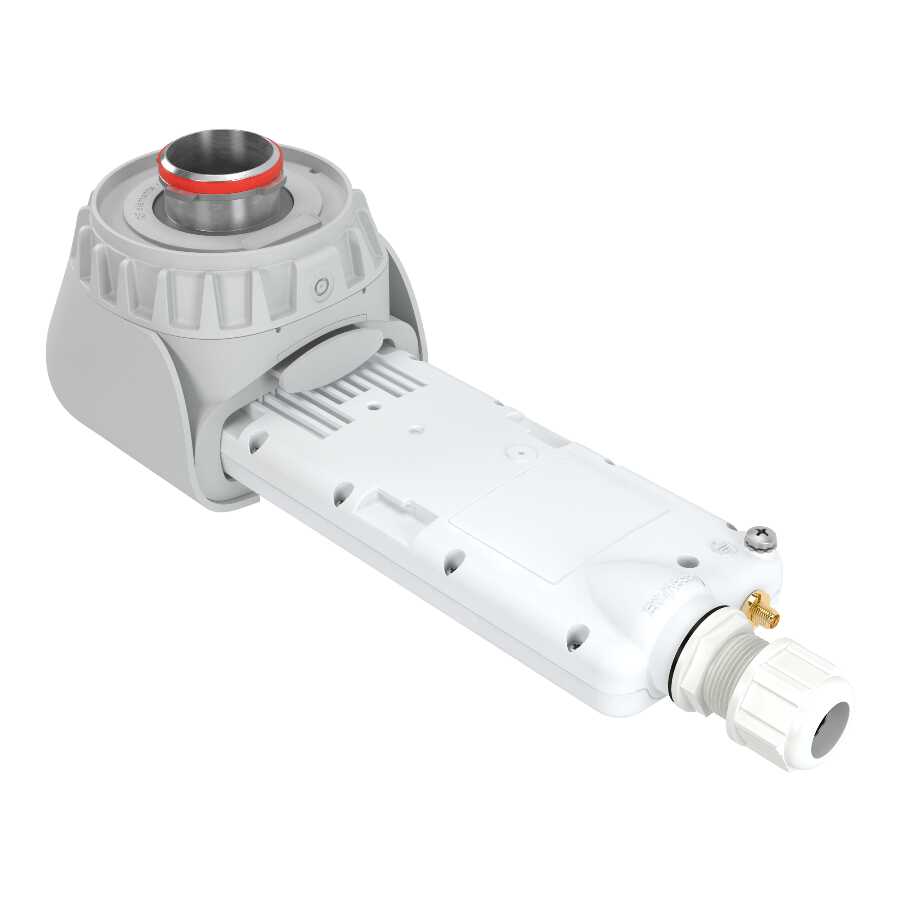

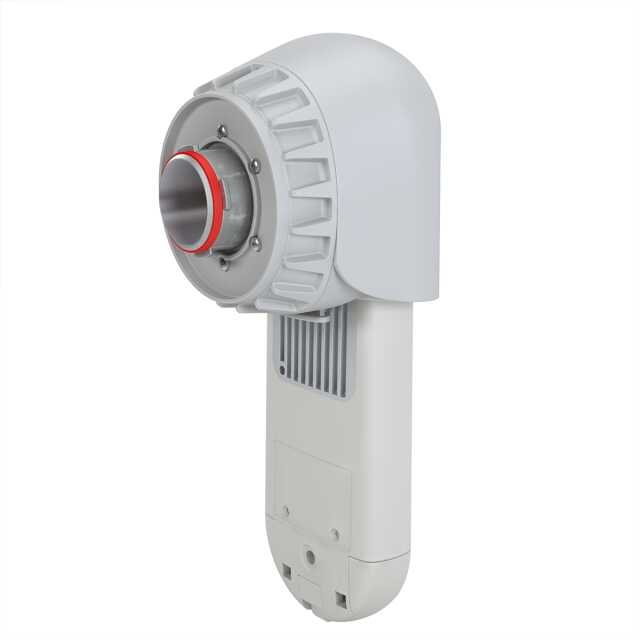

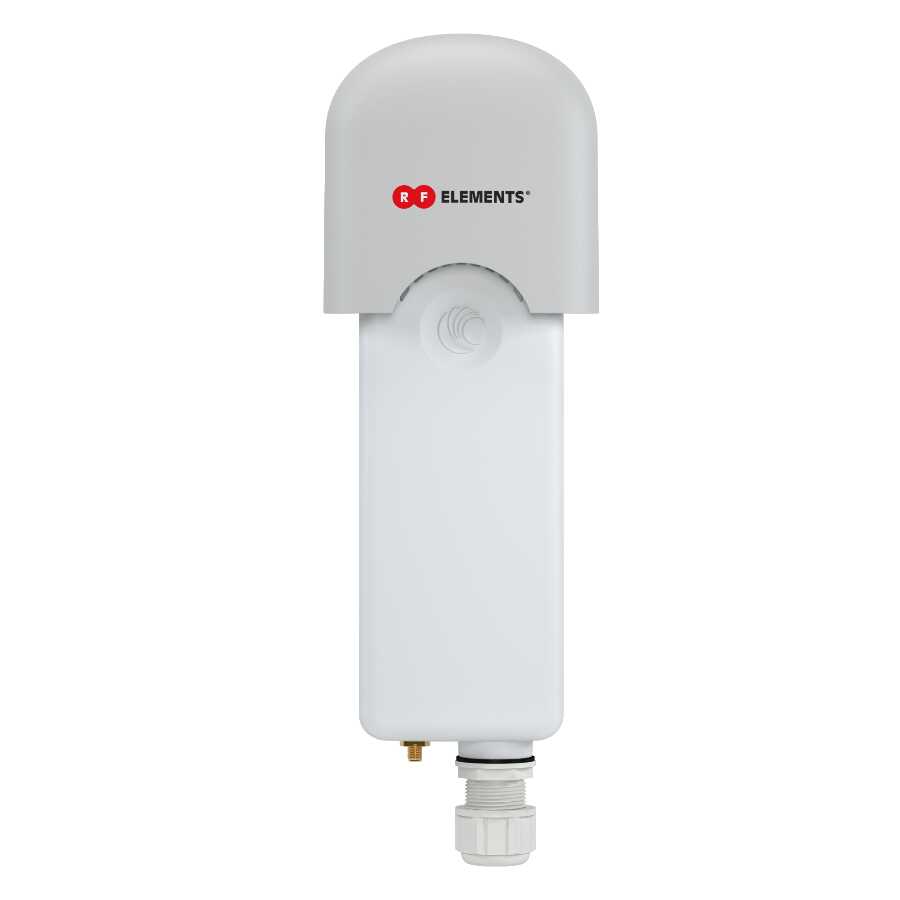

TPA-ePMP Twistport Adapter

RF elements TPA-ePMP TwistPort™ AdapterIt is an adapter that makes Cambium Networks' specific ePMP series devices compatible with RF elements' TwistPort™ antennas. This adapter provides flexibility and efficiency in network infrastructures by enabling quick and tool-free installation.

📡 Technical Specifications

• Frequency Range: 5180 – 6400 MHz

• Polarizasyon: Bilinear (H + V)

• VSWR (Max.)1.8

• Empedans: 50 Ohm

• Antenna Connection: TwistPort™ – Quick-Locking Waveguide Port

• Radio Connection: 2 × Slide-On RP-SMA

• Malzeme:

  • Inner Part: Aluminum Alloy

  • Adapter: UV stabilized and weather-resistant ABS plastic

• Flame Resistance: UL 94 HB

• Operating Temperature: -40°C to +60°C

• Wind Resistance: 160 mph

• Ağırlık:

  • Single Unit: 0.4 kg

  • Packaged: 0.5 kg

• Boyutlar:

  • Single Unit: 130 × 120 × 135 mm

  • 20-Pack Box: 295 × 280 × 610 mm

✅ Compatibility

• RF elements: Compatible with all TwistPort™ antennas.

• Cambium Networks:

  • ePMP™ 1000 AP

  • ePMP™ 1000 CSM

  • ePMP™ 3000L AP

  • ePMP™ Force 300 CSM

  • PMP 450b

  • PMP 450 MicroPoP

⚙️ Featured Features

• Quick and Tool-Free Installation: Thanks to the TwistPort™ mechanism, the radio and antenna connection is fast and easy.

• High Compatibility: It is compatible with the specified Cambium Networks devices.

• Durable Design: It offers high resistance against challenging external environmental conditions.

• High Performance: It provides efficient signal transmission with a low VSWR value and 50 Ohm impedance.
